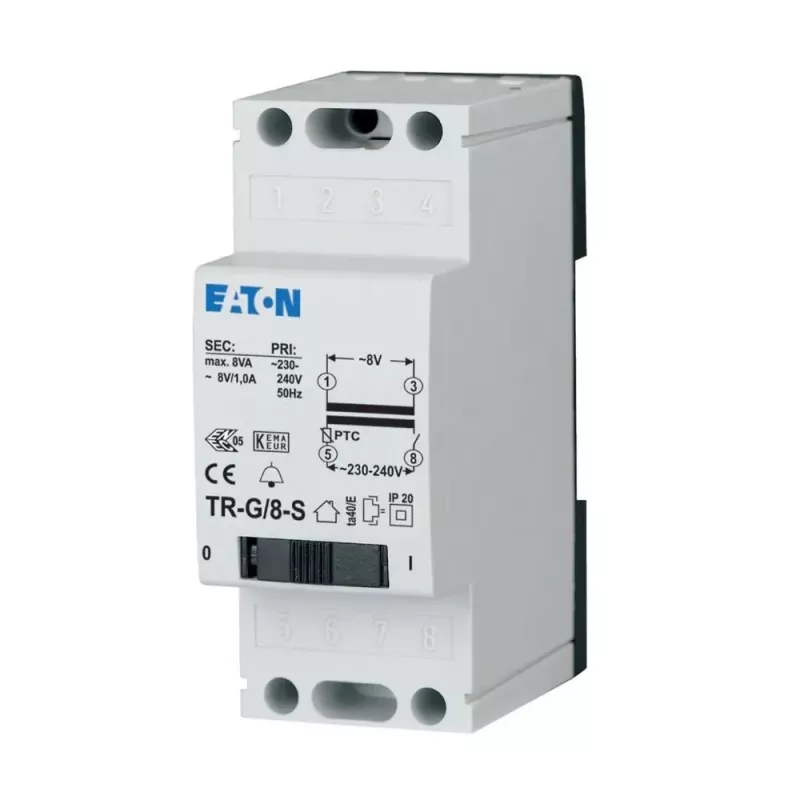

Eaton TR-G/8-S kellomuuntaja 230V 8V 8VA DIN-kiskoasennus 272482

With a rated power of 8 VA and a secondary voltage of 8 V AC, this Eaton transformer reliably powers doorbell and bell systems from a 230 V AC mains supply.

Overview

The Eaton TR-G/8-S is a safety transformer designed for fixed installation in distribution boards. It converts 230 V AC primary voltage to 8 V AC secondary voltage, providing a safe low voltage for doorbells, chimes, and similar signaling devices. The unit is short-circuit proof and features overload protection, ensuring safe operation even under fault conditions.

What stands out

• Compact DIN rail mounting with a width of only 1 module (18 mm)
• Short-circuit proof and overload protected for enhanced safety
• Safety transformer with insulation class E and protection class IP20
• Screw terminals for secure and reliable wiring
• Suitable for 50/60 Hz mains frequency

Technical details

• Primary voltage: 230 V AC
• Secondary voltage: 8 V AC
• Rated power: 8 VA
• Mounting type: DIN rail (REG)
• Module width: 1 module (1 TE)
• Frequency: 50/60 Hz
• Short-circuit proof: Yes
• Protection class: IP20
• Operating temperature: -5 to +40 °C
• Transformer type: Safety transformer
• Connection type: Screw terminals
• Housing material: Plastic
• Overload protection: Yes
• Insulation class: Class E

Our verdict

A compact and reliable doorbell transformer that fits neatly into any DIN rail distribution board, providing safe low voltage with built-in protection.
