ECOFLOW STREAM 800W AC PV 5020801005 mikroinvertteri

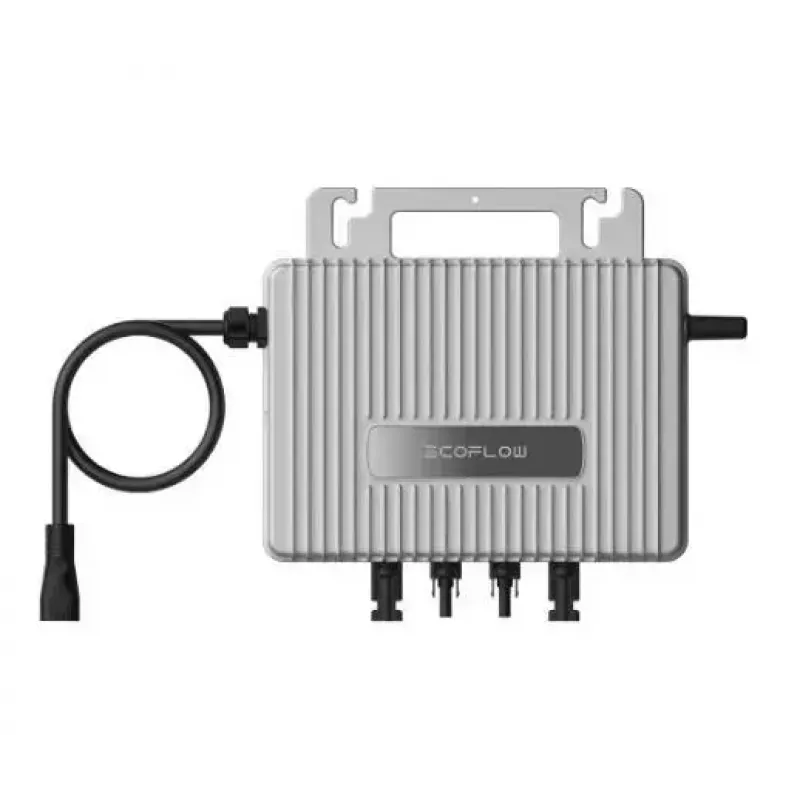

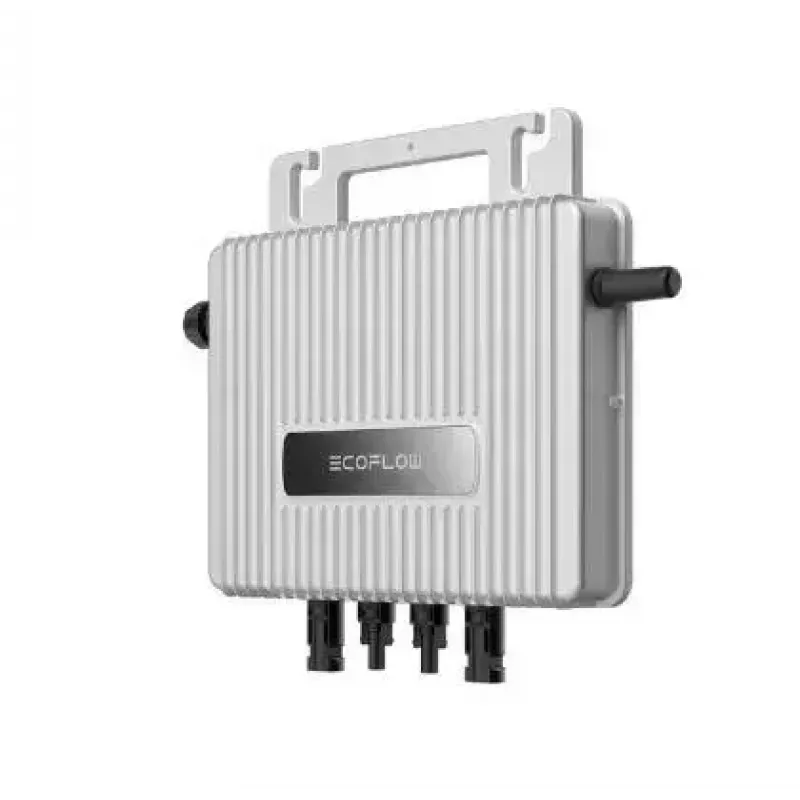

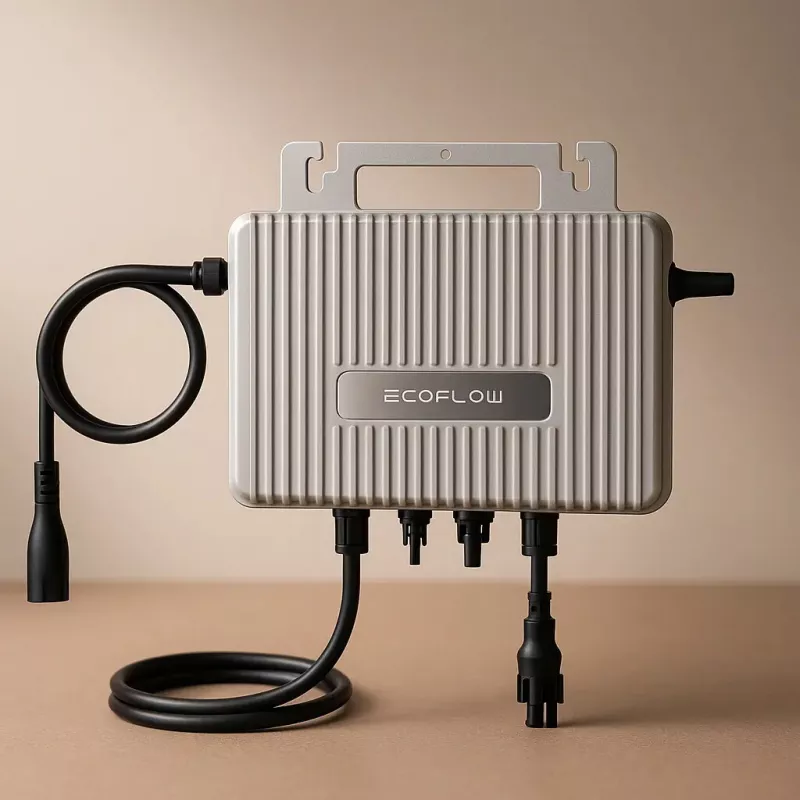

EcoFlow STREAM Microinverter is a compact power conversion device designed to convert the DC output of solar panels into usable AC electricity for home energy systems. The POWER MICROINVERTER EcoFlow STREAM 800W provides a reliable AC output, supports a wide range of solar panels, and features IP67 protection for outdoor use. Its plug-and-play design and compact dimensions make it suitable for straightforward installation and integration into existing solar setups.

Advantages

The EcoFlow STREAM Microinverter delivers efficient conversion of solar DC to AC power and maintains performance in low-light conditions. It is compatible with approximately 99% of market solar panels and has an IP67 water-resistant rating for durability outdoors. The unit’s plug-and-play design simplifies installation and reduces setup time.

Suitable for

• Residential rooftop solar systems
• Small off-grid installations
• Supplementing existing solar arrays with modular microinverters
• Locations requiring weather-resistant power electronics

Key specifications

• Model: STREAM Microinverter
• Rated power: 800 W (POWER MICROINVERTER EcoFlow STREAM 800W)
• Compatibility: Works with ~99% of solar panels
• Protection rating: IP67 (water resistant)
• Dimensions: 252 × 180 × 35 mm
• Product net weight: 3.2 kg
• MPN: 5020801005
• EAN: 4895251640404

How to use

Mount the EcoFlow STREAM Microinverter near the solar panel array following the manufacturer’s mechanical and electrical installation instructions. Connect the DC input to the solar panel output and the AC output to the household/grid connection point or to the designated AC distribution line. Ensure correct polarity on the DC connections and secure all cable glands to maintain the IP67 rating. After connection, verify system operation according to local electrical codes and monitor the inverter for expected AC output.

Recommendations

Install the microinverter in a well-ventilated, weather-protected location if possible, while retaining IP67 sealing for outdoor exposure. Use compatible, correctly sized solar panels and cables, and have installation and grid connection performed or inspected by a qualified electrician to ensure compliance with local regulations.
