EFB Elektronik DIN-kiskorasian OS2 6x LC-Duplex-liitin ilman pigtaileja (BHS60921.6)

12-fiber capacity in a compact DIN rail housing, equipped with 6 LC-Duplex couplers for OS2 singlemode networks.

Overview

The EFB Elektronik BHS60921.6 is a fiber optic distribution box designed for DIN rail (TS35) mounting. It provides 6 LC-Duplex couplers on the front, supporting up to 12 fibers. The unit is supplied without pigtails, allowing flexible splicing in the integrated splice tray (max. 12 splices). The housing is made of powder-coated steel sheet in light grey (RAL 7035), with protection class IP20. Two M20 cable glands provide cable entry. Suitable for industrial environments, building cabling, and data centers.

What stands out

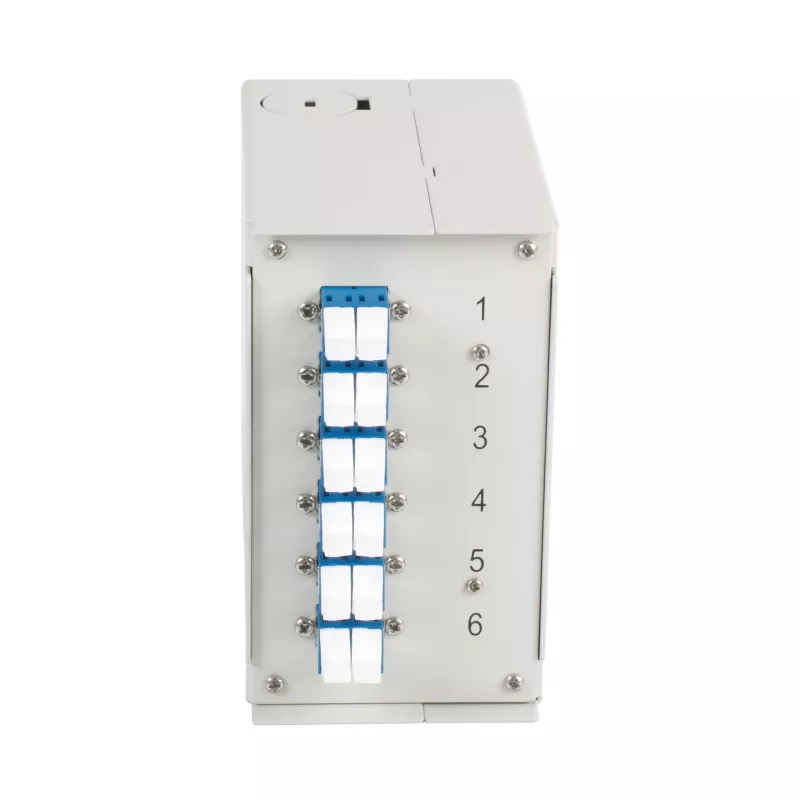

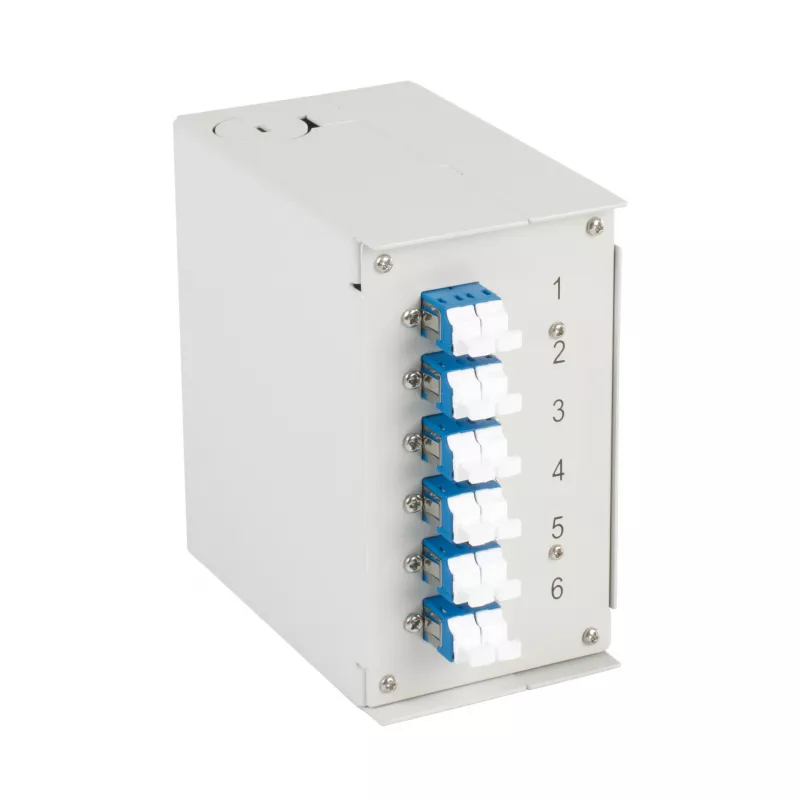

• 6x LC-Duplex couplers for OS2 singlemode connections
• Integrated splice tray for up to 12 splices
• Robust steel housing, powder-coated light grey

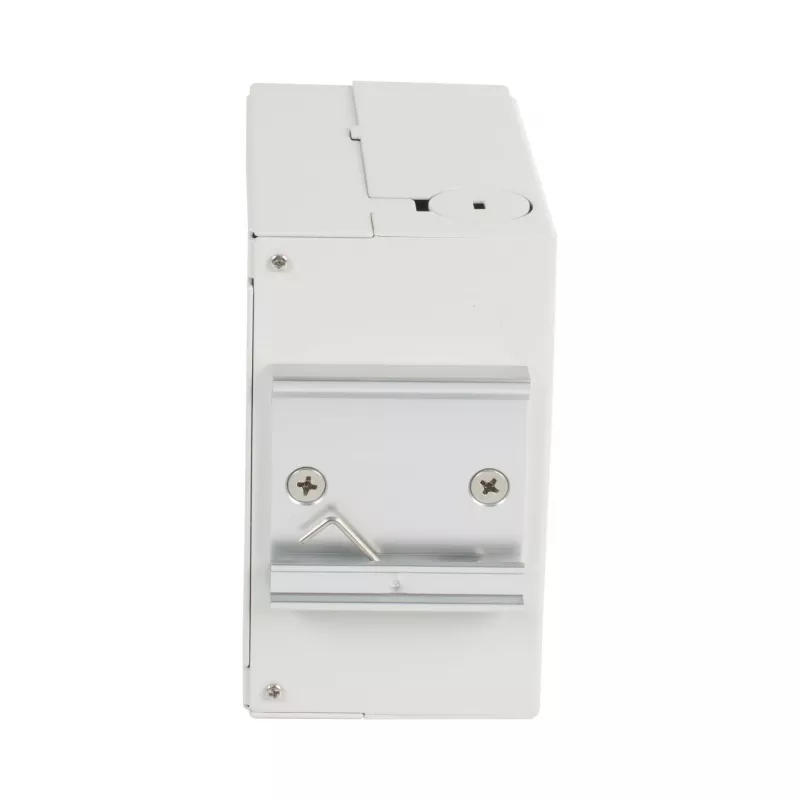

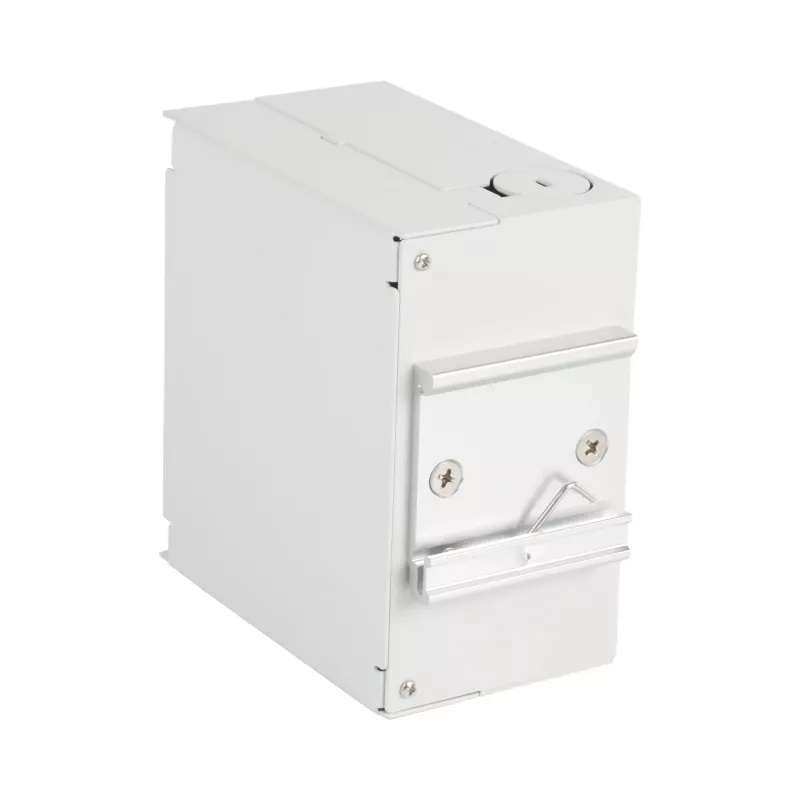

• DIN rail mounting for quick installation
• Two M20 cable glands for secure cable entry

Technical details

• Fiber type: Singlemode OS2
• Connector type: LC-Duplex
• Number of ports: 6x LC-Duplex
• Fiber capacity: 12 fibers
• Pigtails included: No
• Splice tray included: Yes (1x for max. 12 splices)
• Housing material: Steel sheet, powder-coated
• Housing color: Light grey (RAL 7035)
• Protection class: IP20
• Cable entry: 2x M20 cable glands
• Operating temperature: -20°C to +70°C
• Dimensions (H x W x D): 130 x 130 x 35 mm

Our verdict

A practical DIN rail distribution box for OS2 singlemode networks, offering six LC-Duplex connections and integrated splice capacity in a sturdy, compact design.
