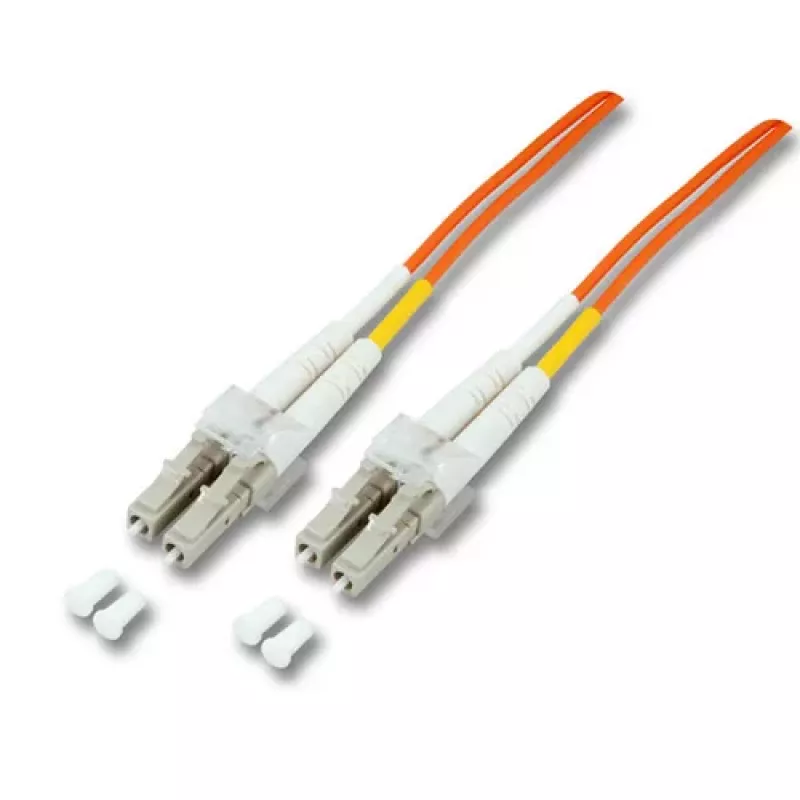

EFB Elektronik duplex-johdin LC-LC 50/125µm OM2 LSZH oranssi 2,0mm 20m

The EFB Elektronik Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM2 grade and 50/125µm core/cladding, it ensures optimal performance for 1 Gbps and 10 Gbps applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the vibrant orange color aids easy identification.

Advantages

This duplex jumper offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The 2.0mm individual strand diameter provides flexibility and durability. LSZH material reduces toxic smoke emissions in case of fire, making it ideal for data centers, offices, and public buildings.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Telecommunications
• Fiber-to-the-desk (FTTD) installations
• Any environment requiring low smoke and halogen-free cabling

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Connector Type A: LC
• Connector Type B: LC
• Fiber Mode: Multimode
• Fiber Grade: OM2
• Core/Cladding Diameter: 50/125 µm
• Cable Length: 20 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter (Individual Strand): 2.0 mm
• Number of Fibers: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Bandwidth at 850nm (OFL): 500 MHz·km
• Bandwidth at 1300nm (OFL): 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex ports. Store in a clean, dry environment within the specified temperature range.
