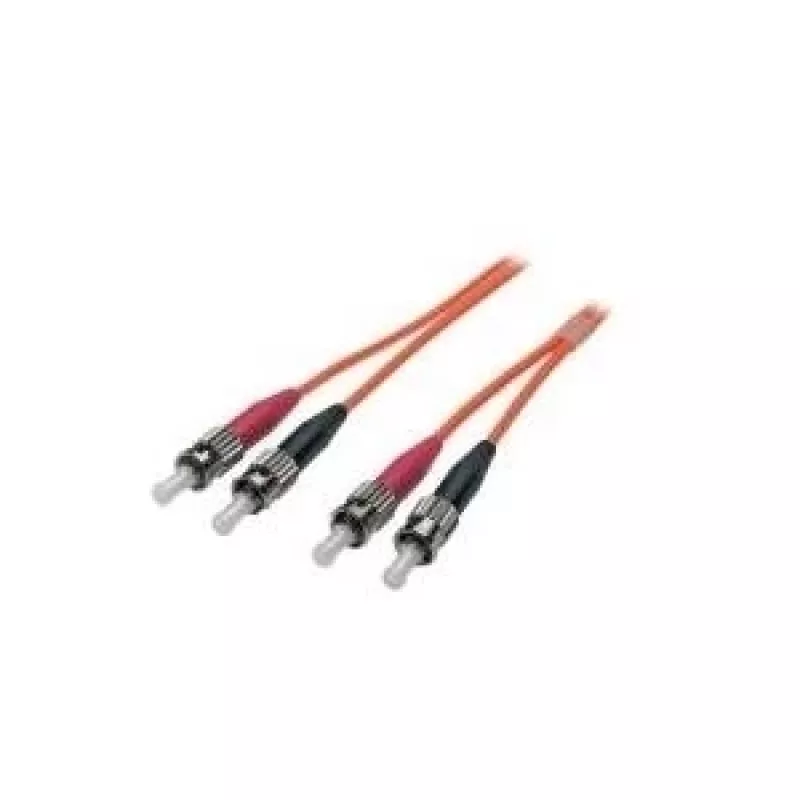

EFB Elektronik ECOFIBER Duplex-jatkokaapeli ST-ST 62.5/125µm OM1 LSZH oranssi 3,0mm 5m

The EFB Elektronik ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in LAN, SAN, data center, and telecommunication applications. With a duplex configuration and ST connectors on both ends, this cable ensures secure and efficient connectivity for multimode OM1 networks.

Advantages

This cable features a robust LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in confined spaces where fire safety is a priority. The 3.0mm diameter per strand provides durability while maintaining flexibility for easy installation. The orange jacket color aids in quick identification and organization within cable management systems.

Suitable for

• Fiber optic network installations requiring ST-ST connections
• Multimode OM1 applications with 62.5/125µm core/cladding
• Data centers, server rooms, and telecommunication closets
• Environments demanding low smoke and halogen-free materials

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Fiber Type: Multimode (MM)
• Fiber Class: OM1
• Core Diameter: 62.5 µm
• Cladding Diameter: 125 µm
• Connector A Type: ST
• Connector B Type: ST
• Connector Polish: PC (Physical Contact)
• Cable Length: 5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter (per strand): 3.0 mm
• Polarity: A-B
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure that the connectors are clean and properly mated. This cable is ideal for backbone and horizontal cabling in structured cabling systems. Pair with appropriate patch panels and transceivers for best results.
