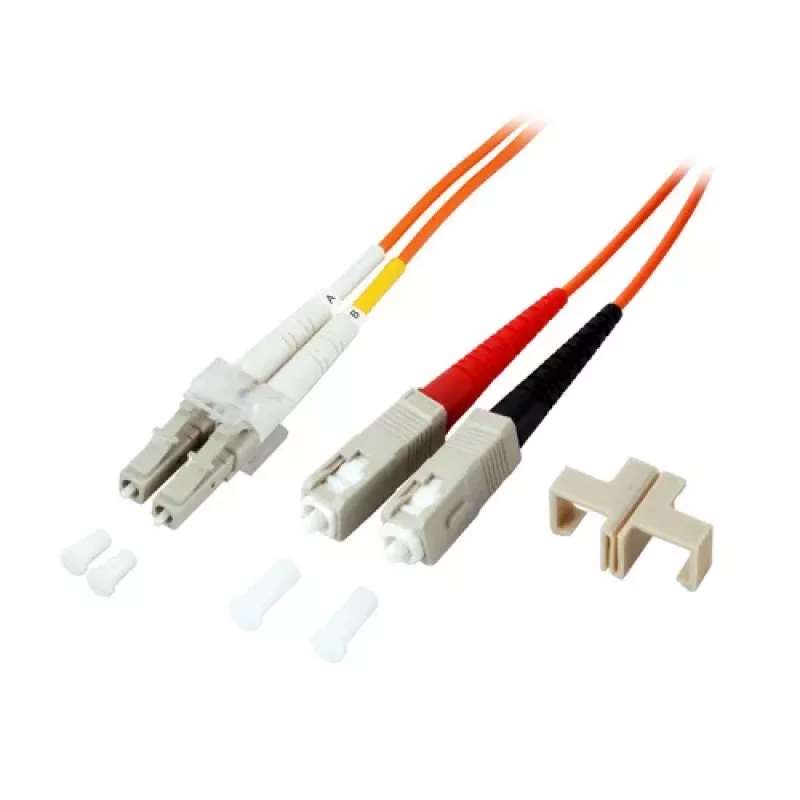

EFB-Elektronik duplex-johdin LC-SC OM1 62.5/125µm 3m oranssi LSZH kuitu-patchkaapeli

The EFB-Elektronik Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM1 fiber grade, 62.5/125µm core/cladding, and LSZH jacket, this cable ensures safety and performance in data centers, LAN, SAN, and telecommunications applications.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥20 dB) guarantee excellent signal integrity. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for indoor installations. Durable 2.0mm duplex construction with LC to SC connectors ensures easy and secure connections.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications infrastructure
• Fiber-to-the-desk applications

Key specifications

• Connector Type: LC to SC Duplex
• Fiber Type: Multimode OM1
• Core/Cladding: 62.5/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Length: 3 m
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥20 dB
• Operating Temperature: -20°C to +70°C
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Suitable for use with 1G and 10G multimode transceivers.
