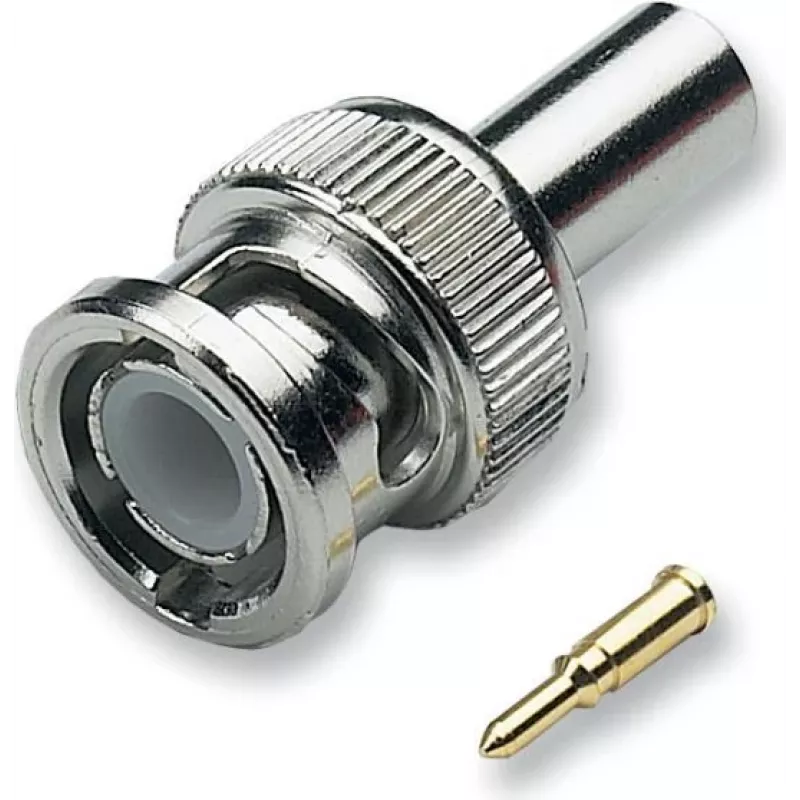

EFB BNC-pistoke videokaapelille, crimp, 0,6/2,8, 75 ohmia

The EFB BNC connector is a high-quality, crimp-style male connector designed for professional video cables. It supports coaxial cables with an inner conductor diameter of 0.6 mm and a dielectric diameter of 2.8 mm, ensuring reliable signal transmission at 75 Ohm impedance. Ideal for CCTV, broadcast, and other video applications.

Advantages

Gold-plated contact for excellent conductivity and corrosion resistance. Nickel-plated brass body provides durability and shielding. PTFE insulator ensures stable performance over a wide temperature range. Easy and secure crimp termination for fast installation.

Suitable for

• Professional video systems
• CCTV installations
• Broadcast equipment
• Coaxial video cable connections

Key specifications

• Connector Type: BNC
• Gender: Male
• Impedance: 75 Ohm
• Termination Method: Crimp
• Inner Conductor Diameter: 0.6 mm
• Dielectric Diameter: 2.8 mm
• Body Material: Brass, Nickel Plated
• Contact Material: Brass, Gold Plated
• Insulator Material: PTFE
• Mounting Type: Cable Mount

Recommendations

For optimal performance, use with compatible 75 Ohm coaxial video cables and a proper crimping tool. Ensure the cable is prepared according to the connector specifications.
