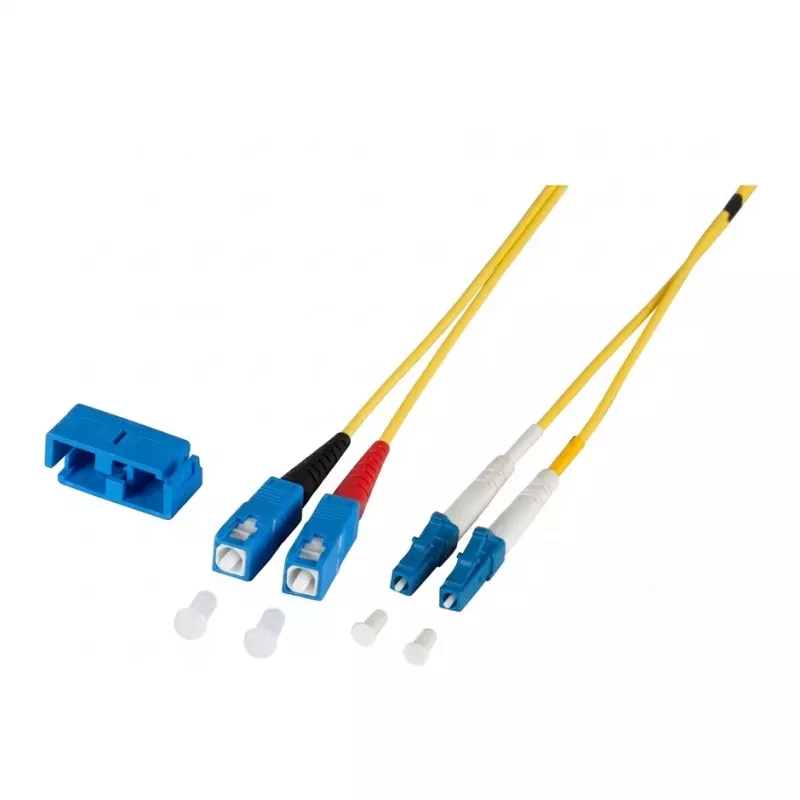

EFB duplex-jumper LC-SC OS2 9/125µm 3m LSZH 2mm vihreä

The EFB Duplex Jumper LC-SC is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in data centers, LAN networks, FTTx, and telecommunications applications. With OS2 fiber standard and 9/125µm core/cladding, it ensures low attenuation and high performance over long distances. The cable features LC to SC connectors with UPC polish, providing low insertion loss and high return loss. The LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in confined spaces, while the 2.0mm diameter and green color offer easy identification and flexibility.

Advantages

This duplex jumper delivers excellent signal integrity with typical insertion loss <0.3 dB and return loss >50 dB. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety. Its 2.0mm diameter provides flexibility for tight installations, and the green color aids in cable management.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) with single-mode fiber
• FTTx (Fiber to the x) deployments
• Telecommunications infrastructure

Key specifications

• Connector A: LC Duplex
• Connector B: SC Duplex
• Fiber Mode: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Cable Length: 3 m
• Jacket Material: LSZH
• Cable Diameter: 2.0 mm
• Cable Color: Green
• Connector Polish: UPC
• Insertion Loss: <0.3 dB (typical)
• Return Loss: >50 dB (typical)
• Wavelengths: 1310nm, 1550nm
• Attenuation: 0.35 dB/km @1310nm, 0.25 dB/km @1550nm
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 20 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with OS2-rated single-mode equipment. Ensure connectors are clean before mating. Store in a clean, dry environment.
