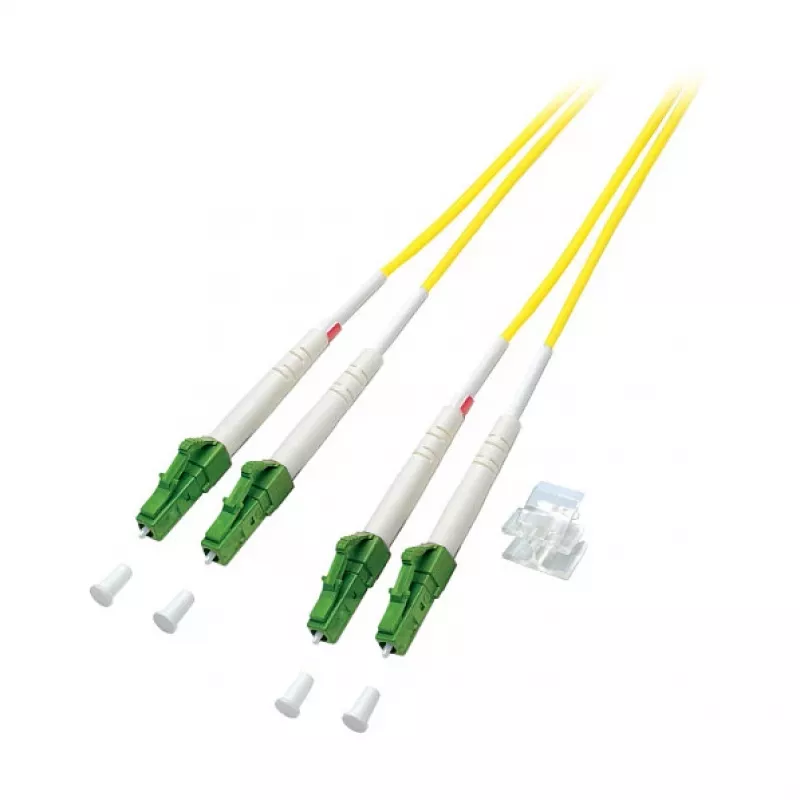

EFB Duplex -kuitujatkokaapeli LC/APC - LC/APC OS2 G652D 2 m LSZH 2 mm keltainen

The EFB Duplex Patch Cable LC/APC to LC/APC OS2 G652D 2m LSZH 2mm Yellow is a high-performance fiber optic patch cable designed for reliable single-mode connections. With duplex LC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication networks. The 2-meter length provides flexibility in rack or wall-mounted installations, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss < 0.2 dB and return loss > 60 dB. The APC polish minimizes back reflection, critical for high-bandwidth applications. The LSZH jacket reduces toxic fumes in case of fire, complying with strict safety standards. Its 2mm diameter ensures easy routing and space-saving in dense cable management.

Suitable for

• FTTH (Fiber to the Home) installations
• Data center interconnects
• Telecommunication networks
• CATV and broadband systems
• LAN and SAN environments

Key specifications

• Connector Type: LC/APC to LC/APC
• Fiber Type: Single-mode OS2 (G.652.D)
• Cable Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2 mm
• Color: Yellow
• Insertion Loss: < 0.2 dB (typical)
• Return Loss: > 60 dB (typical)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with standard LC/APC ports.
