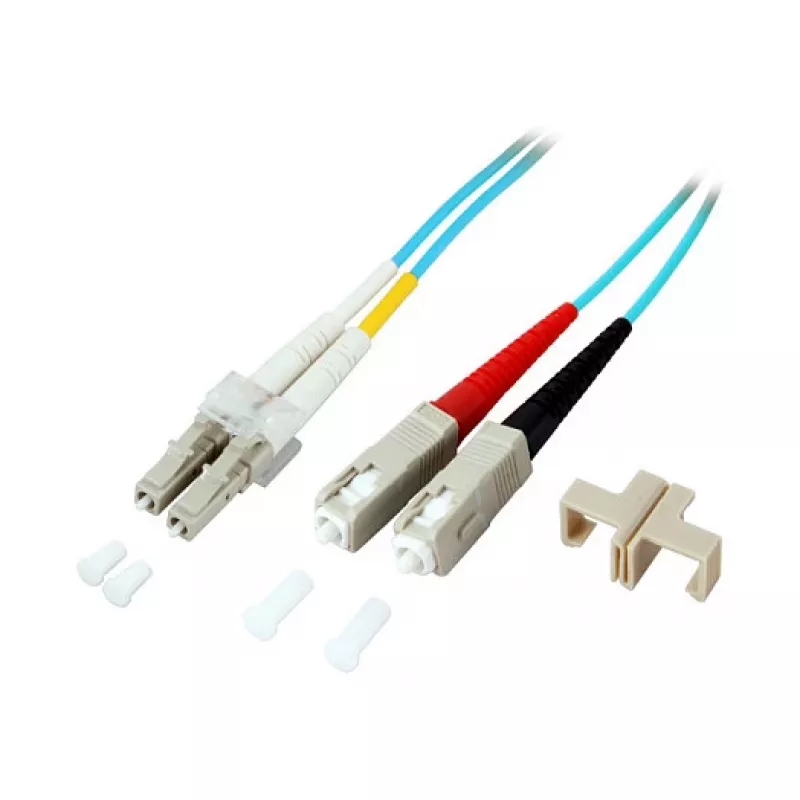

EFB duplex-patchkaapeli LC-SC OM3 25 m LSZH 2 mm aqua

The EFB Duplex Jumper LC-SC OM3 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 25 meters and a durable LSZH jacket, this cable ensures low smoke and zero halogen emissions, making it ideal for indoor installations where safety is paramount.

Advantages

This patch cable offers exceptional bandwidth and low attenuation, supporting high-speed data rates up to 10 Gbps. The LC to SC duplex connectors provide secure connections, while the 2.0 mm diameter cable offers flexibility without compromising durability. The aqua jacket color indicates OM3 multimode fiber, ensuring easy identification.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Fiber-to-the-desk applications
• Telecommunications infrastructure

Key specifications

• Fiber Type: Multimode OM3
• Connectors: LC Duplex to SC Duplex
• Length: 25 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 2.0 mm
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Attenuation at 850 nm: 3.5 dB/km
• Attenuation at 1300 nm: 1.5 dB/km
• Bandwidth at 850 nm: 1500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, ISO/IEC 11801, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC interfaces.
