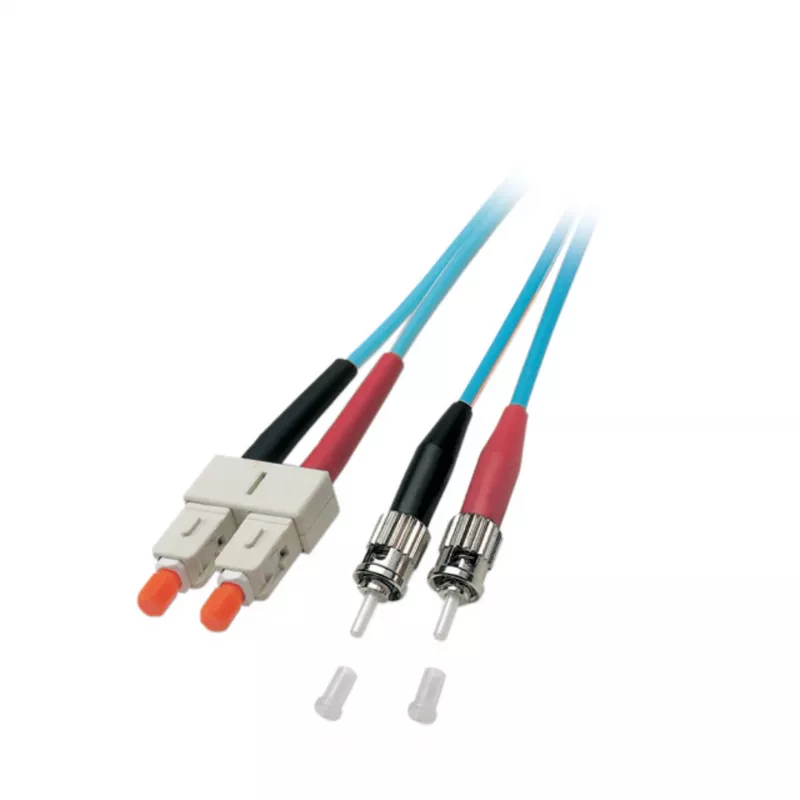

EFB Electronics duplex-jumper SC-ST 50/125 OM3 LSZH aqua 3,0 mm 40 m

The EFB Electronics Duplex Jumper SC-ST is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber, this cable supports high-speed applications up to 10 Gbps and beyond, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This duplex jumper offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The aqua color jacket allows for easy identification of OM3 fiber, simplifying cable management.

Suitable for

• Data center cabling
• Enterprise network backbone
• Telecommunications rooms
• High-speed data transmission (10 Gbps, 40 Gbps)
• Fiber-to-the-desk applications

Key specifications

• Connector Type A: SC
• Connector Type B: ST
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Cable Length: 40 m
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH
• Jacket Color: Aqua
• Number of Fibers: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Bandwidth at 850nm (OFL): 1500 MHz-km
• Bandwidth at 1300nm (OFL): 500 MHz-km
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, IEC 60794, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC and ST ports. Use with OM3-rated transceivers for best results.
