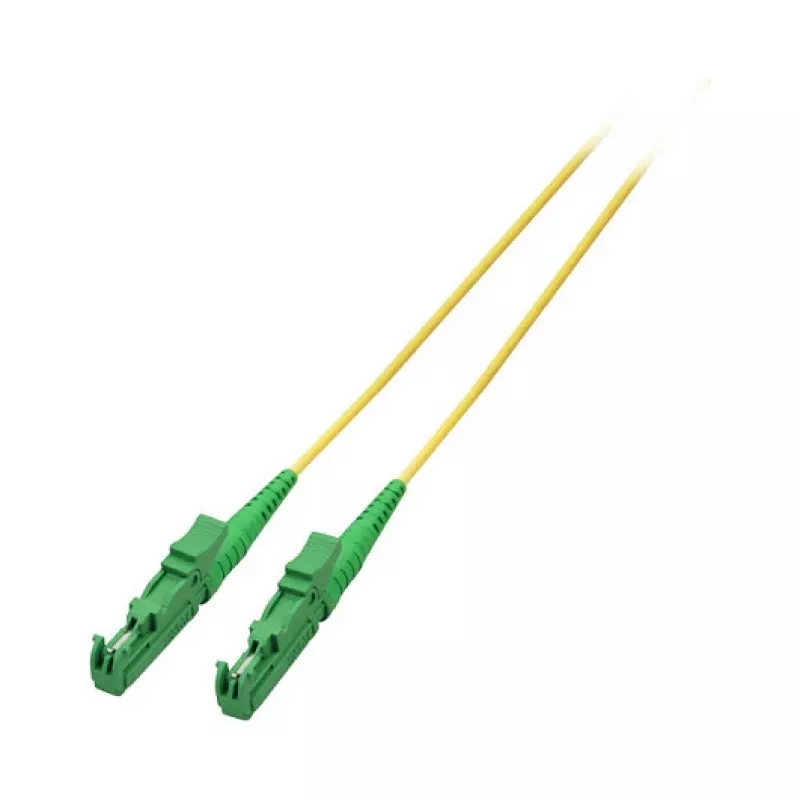

EFB Electronics E2000/APC yksimuotoliitäntäkaapeli 1 m LSZH keltainen G.657.A1

The EFB Electronics E2000/APC Singlemode Patch Cable is a high-performance fiber optic interconnect designed for demanding network environments. With precision-engineered E2000/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for high-speed data transmission in telecommunications, data centers, and FTTx applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The APC polish minimizes back reflection, while the LSZH jacket provides safety in confined spaces. The 3.0 mm diameter and G.657.A1 fiber standard ensure bend insensitivity and easy installation.

Suitable for

• High-speed data networks
• FTTx (Fiber to the x)
• Telecommunications infrastructure
• Data center interconnects

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode (9/125 µm)
• Connector Type: E2000/APC Male to E2000/APC Male
• Cable Length: 1 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Fiber Standard: G.657.A1
• Insertion Loss: ≤0.2 dB (typical)
• Return Loss: ≥60 dB (typical)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible E2000/APC ports and avoid sharp bends. This cable is suitable for both indoor and protected outdoor installations.
