EFB Electronics jatkosrasia 1U LC 9/125µm OS2 liukuva 24 pigtailia/12 liitintä

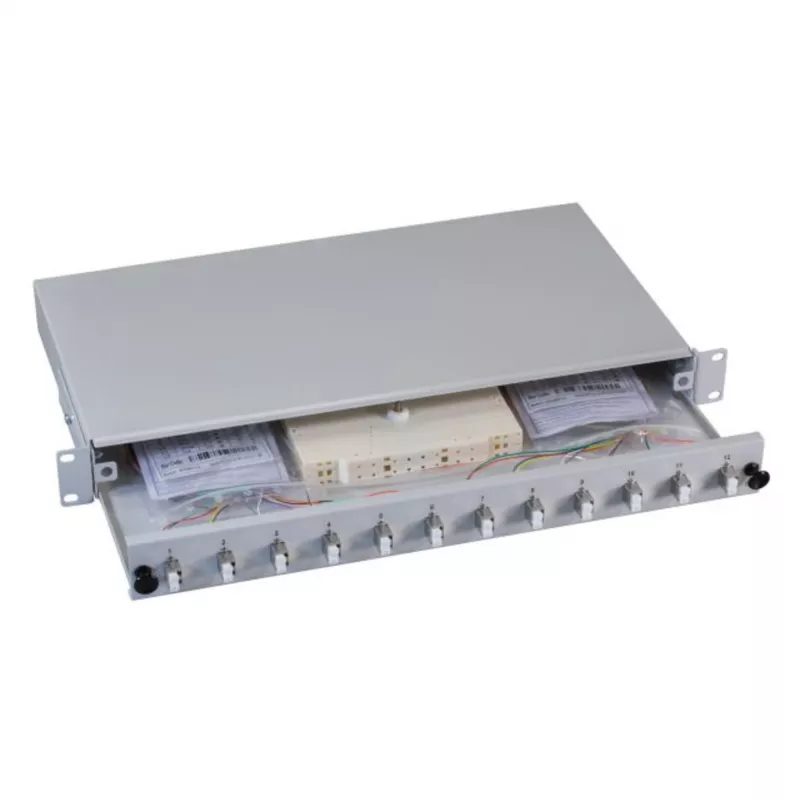

The EFB Electronics Splice Box B71922.24 is a high-quality 1U 19-inch rack-mount fiber optic splice box designed for single-mode OS2 applications. It comes pre-assembled with 24 LC pigtails and 12 duplex LC couplers, providing a total fiber capacity of 24 fibers. The sliding tray design allows easy access for splicing and maintenance, making it ideal for data centers, telecom rooms, and FTTH installations.

Advantages

This splice box offers a compact 1U form factor that saves valuable rack space. The pre-terminated pigtails and couplers reduce installation time and ensure consistent performance. The extractable tray simplifies splicing and future upgrades, while the robust metal housing provides durability and protection for delicate fiber connections.

Suitable for

• Data center fiber distribution
• Telecommunications network termination
• FTTH (Fiber to the Home) installations
• LAN and WAN fiber optic networks

Key specifications

• Product Type: Fiber Optic Splice Box
• Rack Unit: 1U
• Mounting: 19-inch Rack
• Connector Type: LC Duplex
• Fiber Type: Single-mode 9/125µm OS2
• Number of Pigtails: 24
• Number of Adapters: 12 (Duplex LC)
• Total Fiber Capacity: 24 Fibers
• Design: Sliding / Extractable Tray
• Includes Splice Tray
• Application: Indoor

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper fiber cleaning before splicing. This splice box is compatible with standard 19-inch racks and supports wavelengths of 1310nm and 1550nm.
