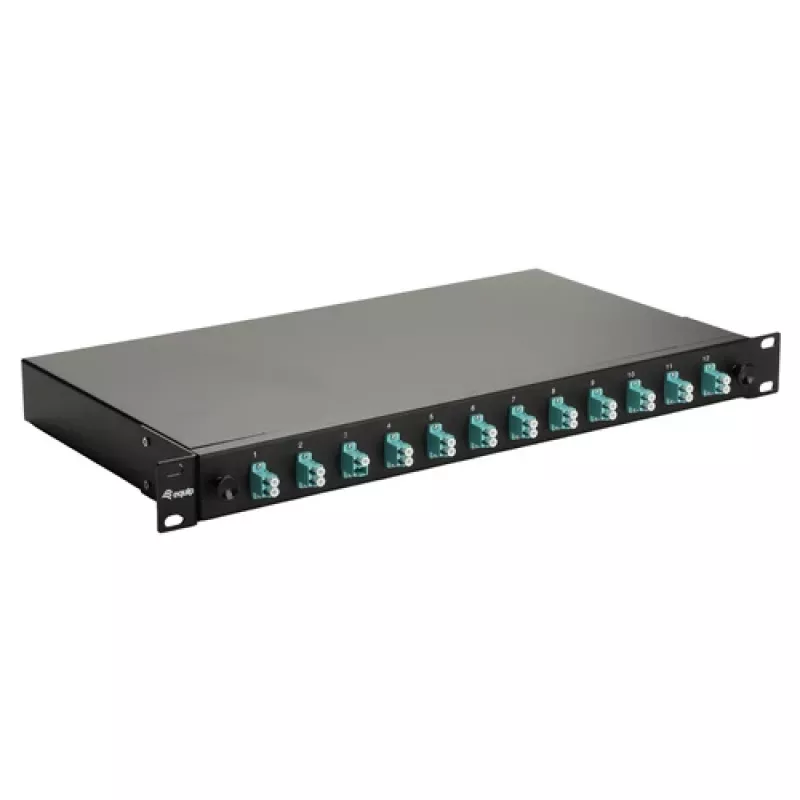

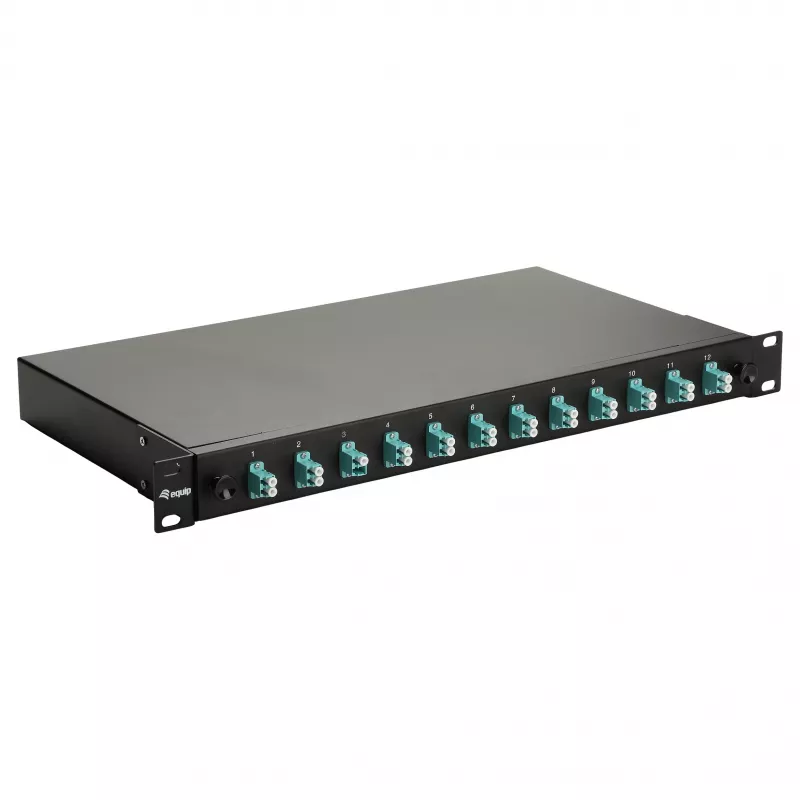

Equip 12-porttinen kuitujatkosrasia, LC Duplex, OM3, 1U, asennettu, musta

The Equip 12-Port Fiber Optic Splice Box is a pre-equipped 1U rackmount panel designed for OM3 multimode networks. It arrives with LC duplex adapters and pigtails already installed, allowing you to terminate and patch fibers without sourcing separate components.

Highlights

• 12 x LC duplex ports for OM3 multimode fiber
• 1U 19-inch rackmount steel housing
• Zirconia ceramic adapters and 1.5 m LC pigtails

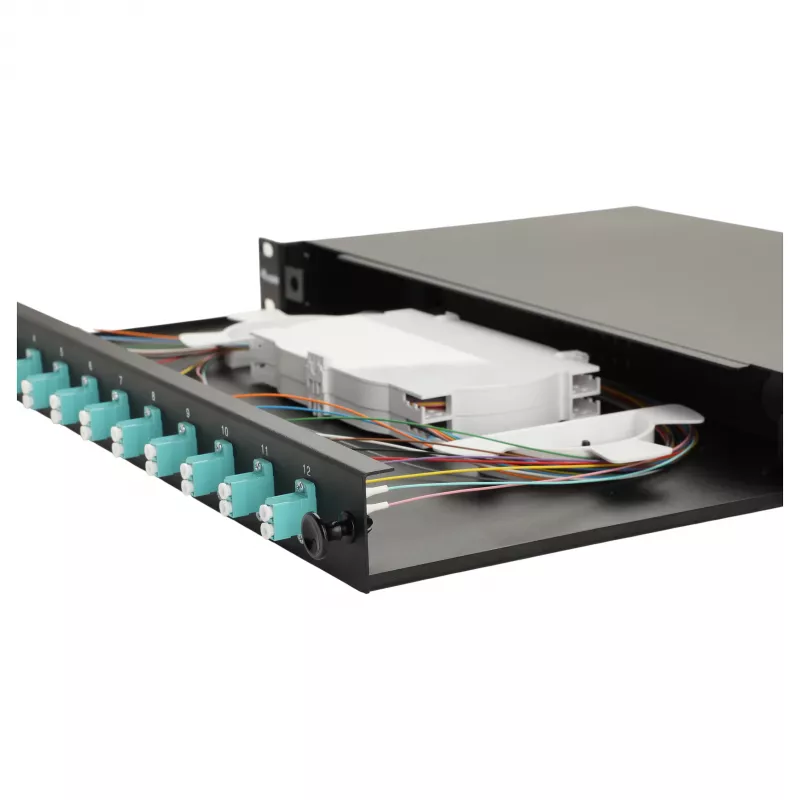

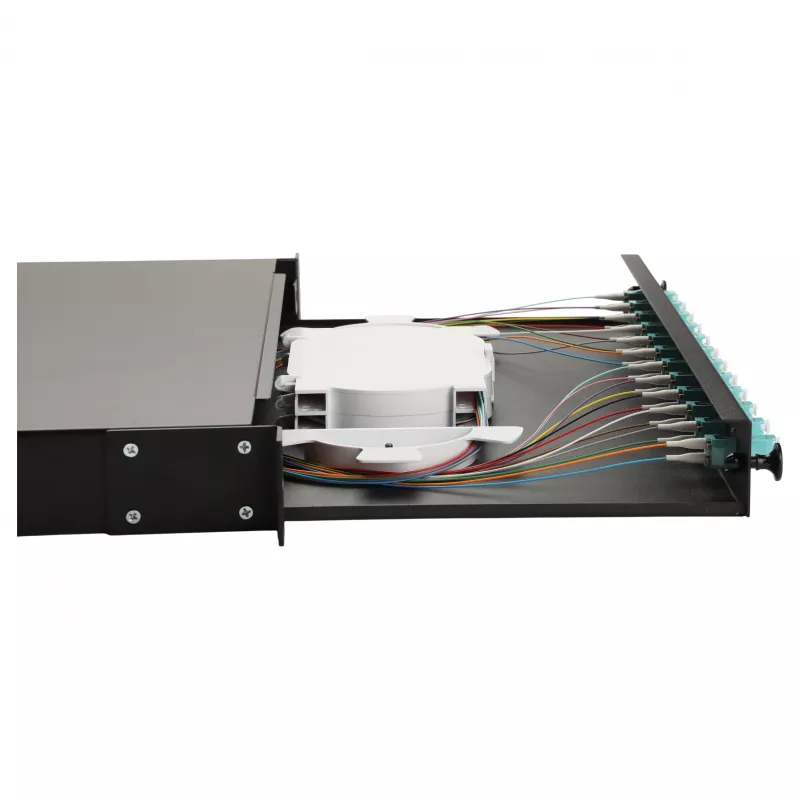

• Integrated splice tray with cable management
• Insertion loss <0.3 dB and return loss >30 dB

In daily use

With all 12 ports pre-assembled, the splice box reduces on-site installation time significantly. Just mount the unit, splice incoming fibers to the pigtails, and connect patch cords from the front. The steel enclosure protects splices and adapters, while the 1U footprint saves valuable rack space. Ideal for data centers, labs, and enterprise networks using 10G to 40G multimode links.

Full specifications

• Product Type: Fiber Optic Splice Box
• Form Factor: 1U Rackmount
• Rack Width: 19 inch
• Port Count: 12
• Connector Type: LC Duplex
• Fiber Mode: Multimode
• Fiber Category: OM3
• Pre-equipped: Yes
• Adapter Material: Zirconia Ceramic
• Pigtail Length: 1.5 m
• Pigtail Connector: LC
• Pigtail Fiber Type: OM3 Multimode
• Splice Tray Included: Yes
• Housing Material: Steel
• Colour: Black
• Typical Insertion Loss: <0.3 dB
• Typical Return Loss: >30 dB
• Mounting Type: Rack Mount

Final note

DistriNode SA supplies the Equip 591904 as a complete, ready-to-use solution for structured OM3 fiber cabling, backed by reliable build quality and ease of installation.
