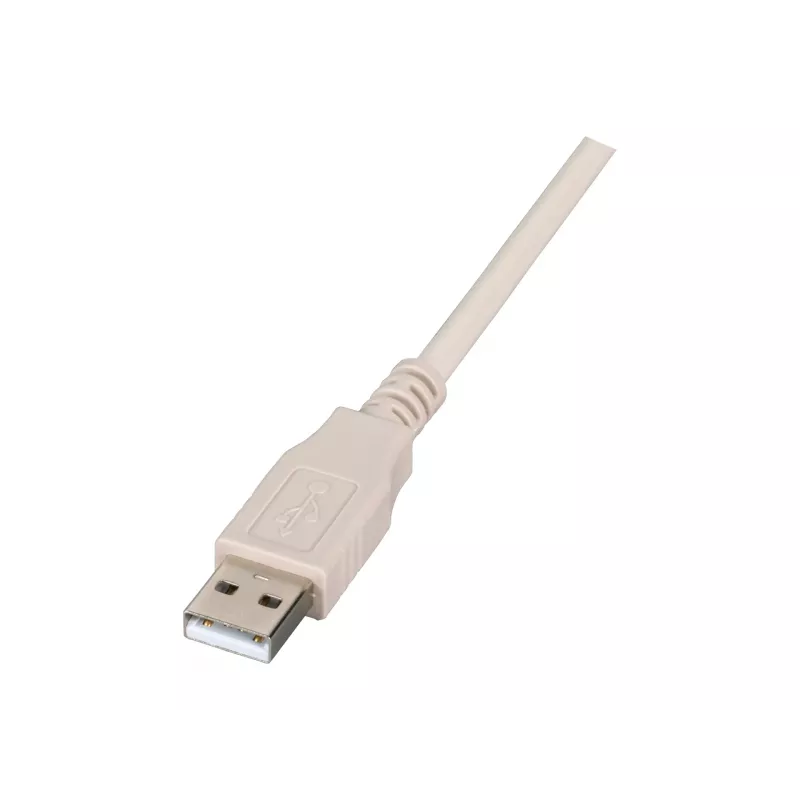

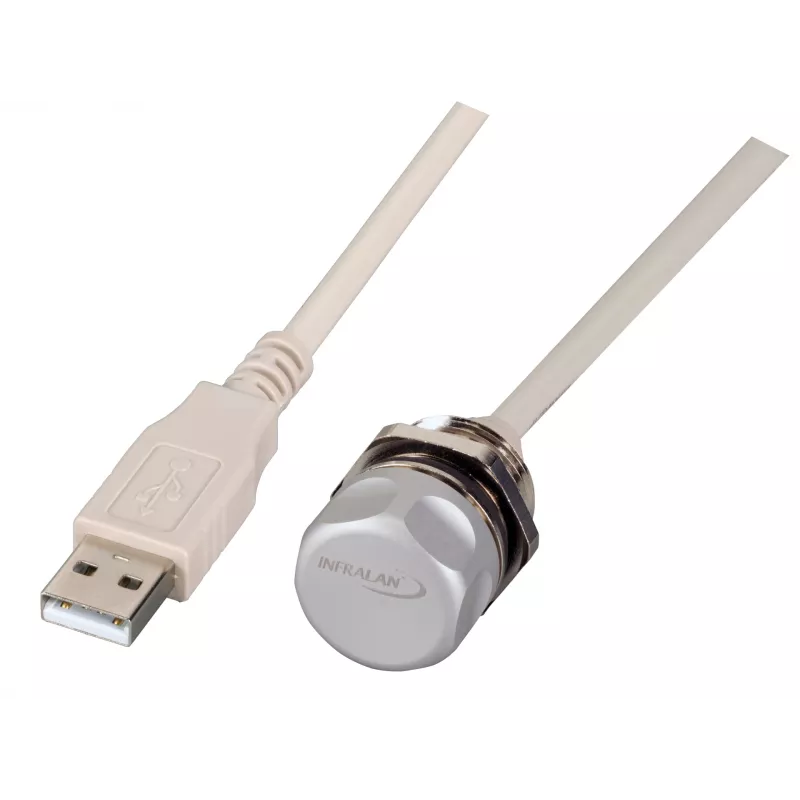

EFB IP67 asennus-USB 2.0 Type-A naaras-naaras, M20 kierre, 0,5 m kaapeli, huoltoportti IP67EBUSBA-A0,5FLHS

Exposed USB ports on industrial panels are vulnerable to dust, moisture and accidental damage. This EFB panel mount receptacle seals the connection point to IP67, keeping the port clean and ready when you need it.

Who is it for

Technicians and machine builders who need a reliable USB service port on the outside of an enclosure, control cabinet or device housing, especially in wet or dusty environments.

Main features

• IP67-rated panel mount housing with M20 thread
• USB 2.0 Type-A female connector on both external and internal sides
• Integrated 0.5 m cable for internal connection

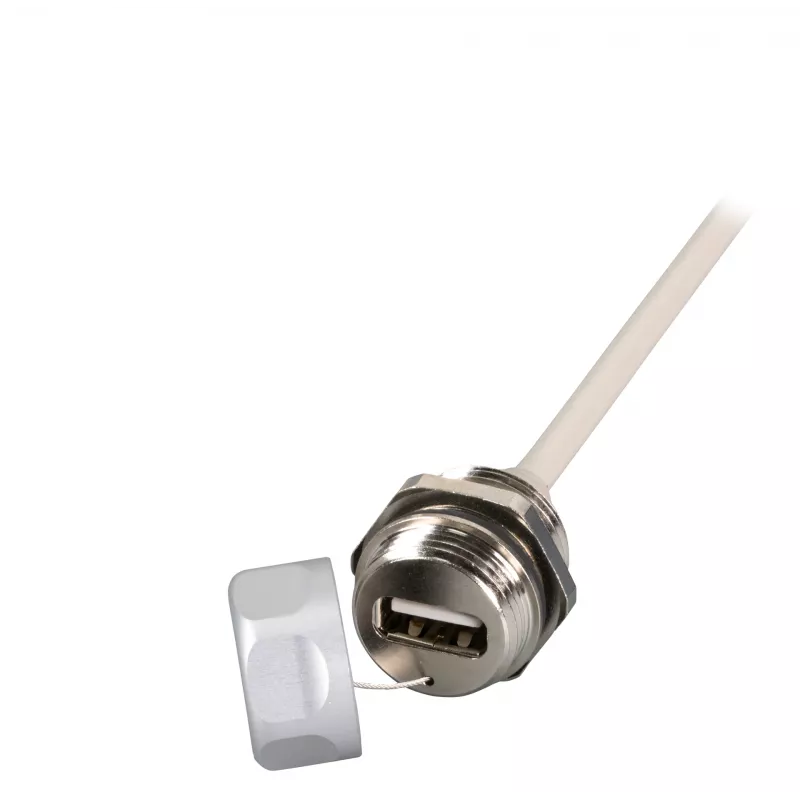

• Protective cap with retaining cord prevents loss
• Supports data rates up to 480 Mbps

Specifications

• USB standard: USB 2.0
• External connector: USB Type-A female
• Internal connector: USB Type-A female
• Mounting thread: M20
• IP rating: IP67
• Cable length: 0.5 m
• Data transfer rate: up to 480 Mbps
• Operating voltage: 5V DC (USB standard)
• Max current rating: 500mA (USB 2.0 standard)

Tips

When installing, ensure the sealing washer is seated correctly against the panel to maintain the IP67 rating. The retaining cord keeps the cap attached when the port is in use.
