EFB Elektronik INFRALAN U-DQ(ZN)BH 4x12G 50/125 OM4 LSZH musta CPR Eca kuitukaapeli

The EFB Elektronik INFRALAN U-DQ(ZN)BH 4x12G 50/125 OM4 LSZH Black CPR Eca is a high-performance fiber optic cable designed for demanding indoor and outdoor installations. With 48 multimode fibers arranged in 4 groups of 12, this cable delivers exceptional bandwidth and low attenuation, making it ideal for high-speed data networks, data centers, and campus backbones.

Advantages

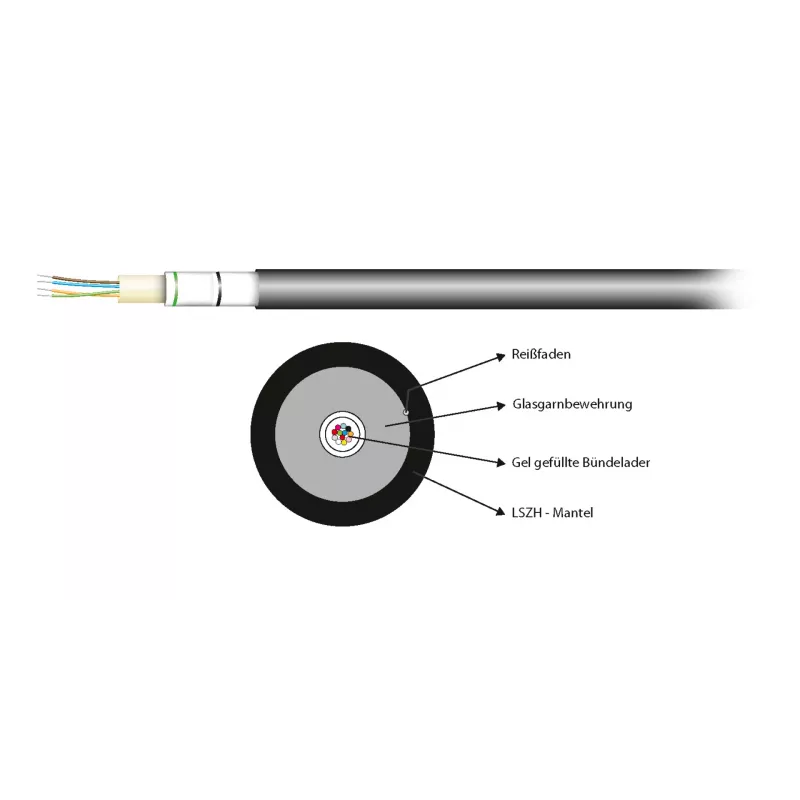

This cable offers superior fire safety with its LSZH (Low Smoke Zero Halogen) jacket, reducing toxic emissions in case of fire. The CPR Eca classification ensures compliance with European construction product regulations. Its robust loose tube construction with a non-metallic central strength member provides excellent mechanical protection and UV resistance for outdoor use.

Suitable for

• High-speed data transmission in LANs and data centers
• Indoor/outdoor backbone cabling
• Fiber-to-the-desk (FTTD) applications
• Telecommunications and CATV networks

Key specifications

• Fiber Type: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 48 (4 groups of 12)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Black
• CPR Fire Class: Eca
• Attenuation (850nm): ≤ 2.3 dB/km
• Attenuation (1300nm): ≤ 0.6 dB/km
• Bandwidth (850nm): 4700 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60794-1, EN 50173-1, ISO/IEC 11801

Recommendations

For optimal performance, use with OM4-compatible connectors and ensure proper installation by certified professionals. This cable is suitable for both indoor and outdoor environments, but direct burial is not recommended without additional protection.
