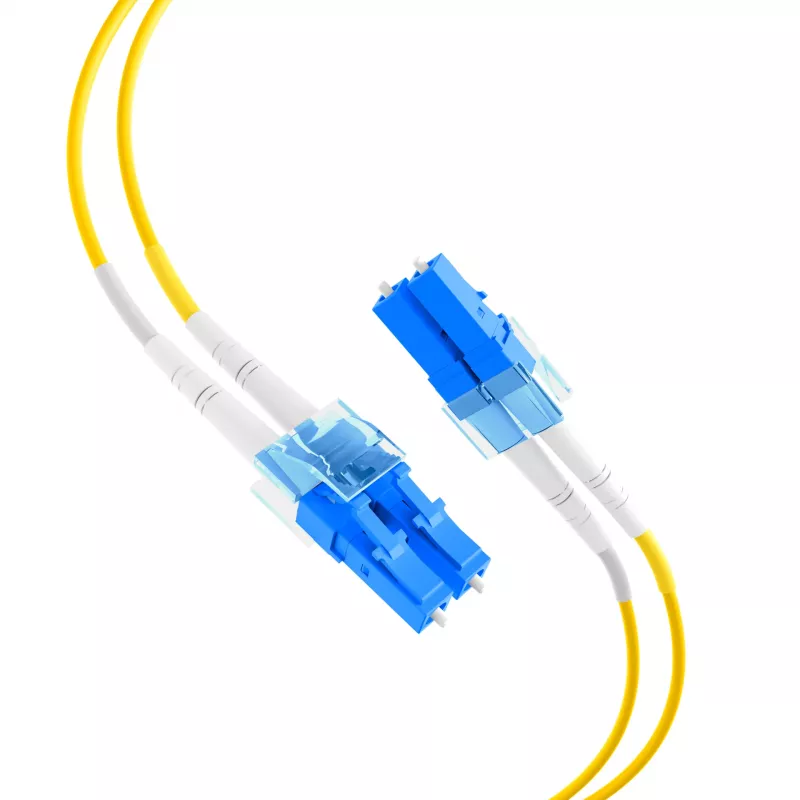

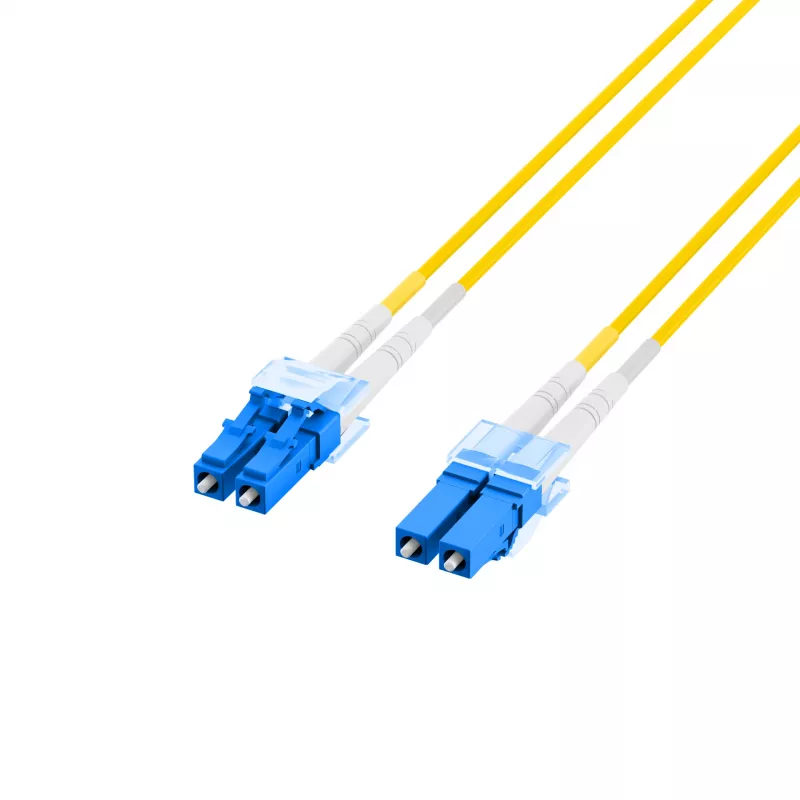

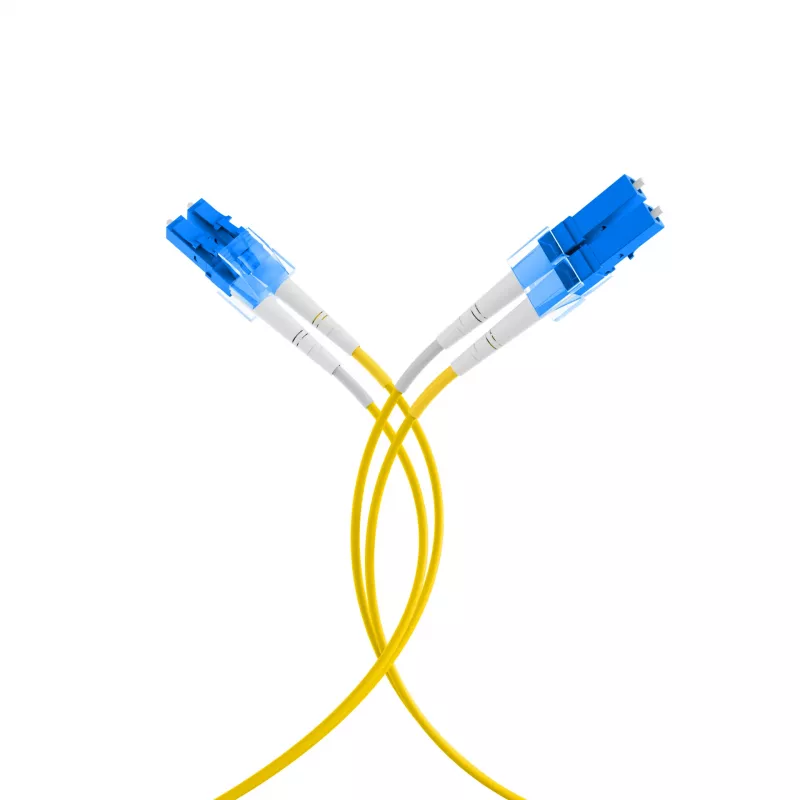

EFB Elektronik IPL-DR-LCULCU-2-1000 kuitu-patchkaapeli, OS2, LC Duplex - LC Duplex, 10 m, LSZH, keltainen

The EFB Elektronik IPL-DR-LCULCU-2-1000 is a high-quality fiber optic patch cable designed for reliable single-mode data transmission. With a length of 10 meters and LC duplex connectors on both ends, this cable is ideal for structured cabling in data centers, telecommunications rooms, and enterprise networks. The OS2 fiber standard ensures compatibility with G.657.A1 and G.652.D fibers, providing low attenuation and high return loss for optimal performance.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss below 0.3 dB and return loss greater than 50 dB. The LSZH (Low Smoke Zero Halogen) jacket material ensures safety in enclosed spaces by minimizing toxic fumes in case of fire. The I-V(ZN)H construction provides rodent protection and non-metallic design, making it suitable for indoor installations where mechanical protection is required.

Suitable for

• Data center patching and cross-connects
• Telecommunications and network cabinets
• Fiber-to-the-desk (FTTD) applications
• High-speed single-mode networks (1G/10G/40G/100G)

Key specifications

• Fiber mode: Single-mode OS2 (G.657.A1 / G.652.D)
• Connectors: LC Duplex to LC Duplex
• Length: 10 m
• Number of fibers: 2
• Cable construction: I-V(ZN)H (non-metallic, rodent protected, halogen-free)
• Jacket material: LSZH
• Core/cladding: 9/125 µm
• Insertion loss: < 0.3 dB (typical)
• Return loss: > 50 dB (typical)
• Attenuation: ≤ 0.35 dB/km @ 1310 nm, ≤ 0.25 dB/km @ 1550 nm
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 30 mm (installation), 15 mm (operation)
• Cable color: Yellow

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC duplex interfaces. Pair with EFB patch panels and pigtails for a complete structured cabling solution.
