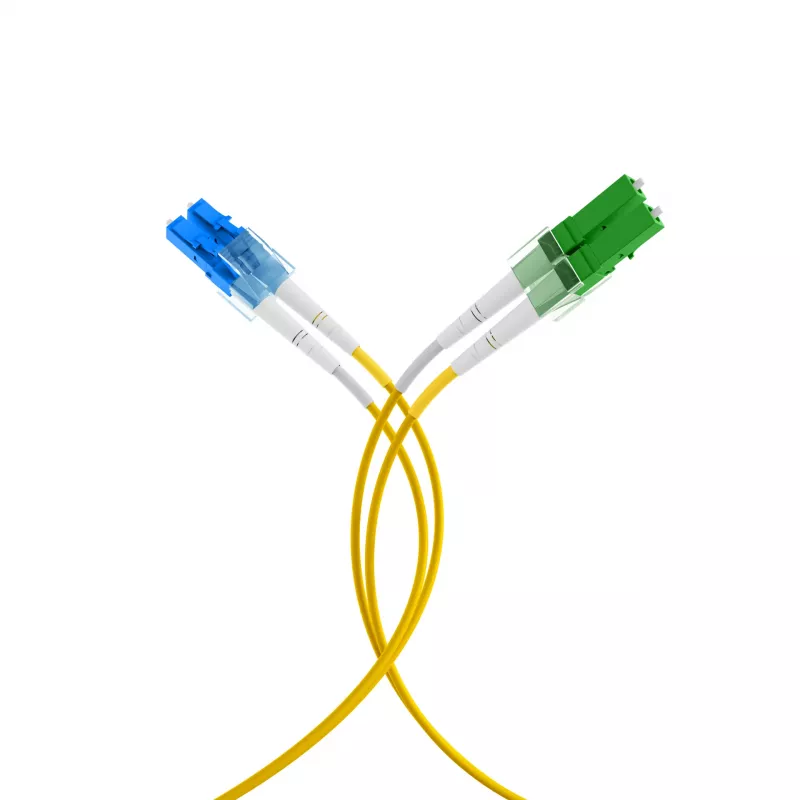

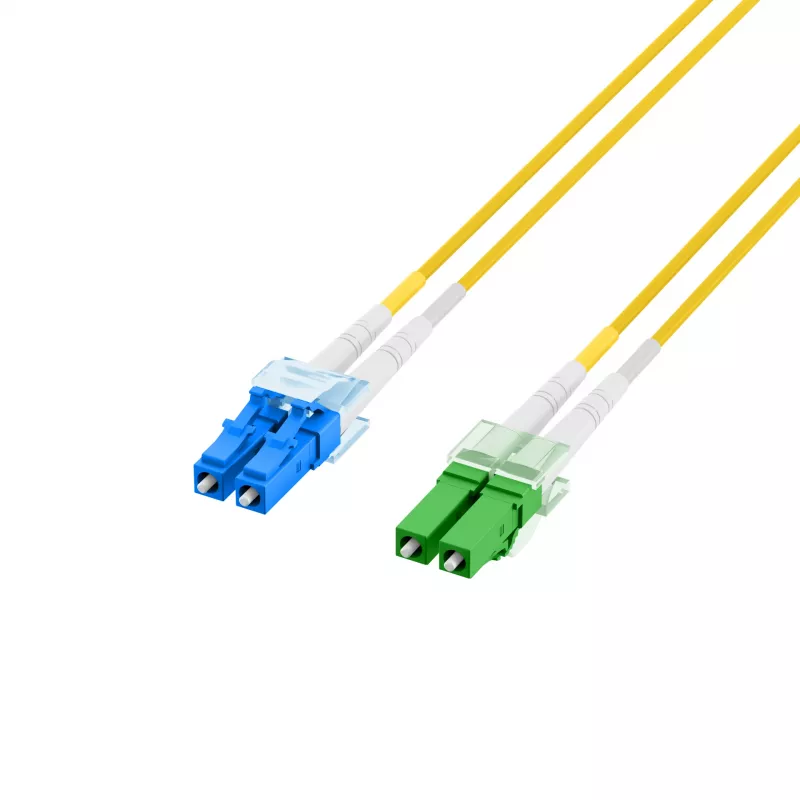

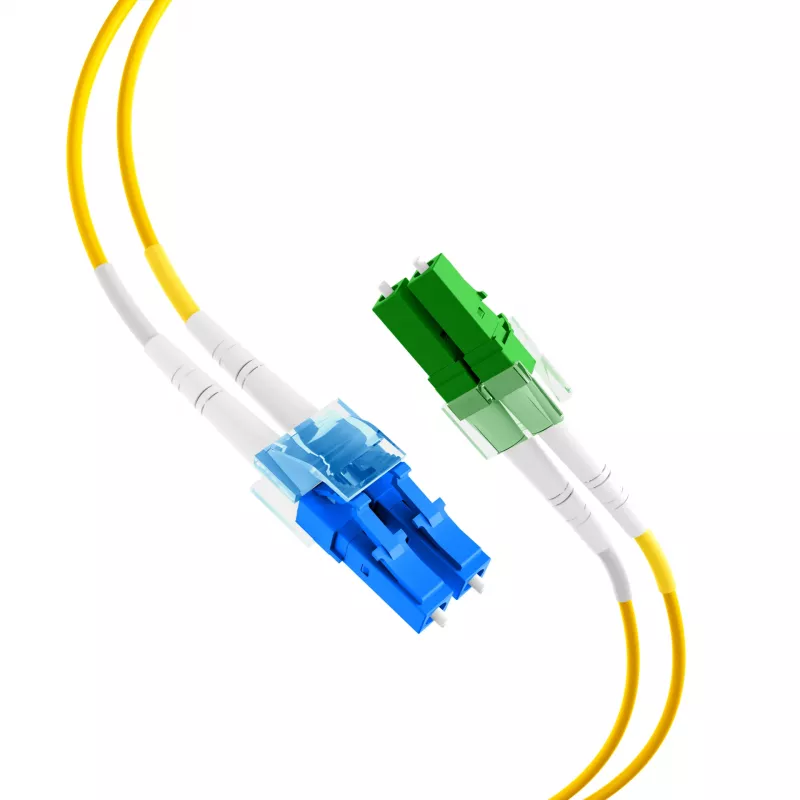

EFB Elektronik kuitu-patch-kaapeli LC/APC yksimuotokaapeli OS2 20 m keltainen

The EFB Elektronik fiber optic patch cable is a high-performance singlemode duplex cable designed for reliable data transmission in indoor networks. With LC/APC connectors on both ends and a 20-meter length, it ensures low insertion loss and high return loss for critical applications.

Advantages

This cable features bend-insensitive fiber (ITU-T G.657.A1) for flexible installation, LSZH jacket for safety, and zirconia ceramic ferrules for durability and stable optical performance.

Suitable for

• Data center and server room connections
• Telecommunications and FTTH networks
• High-speed singlemode fiber optic links

Key specifications

• Connector Type: LC/APC to LC/APC
• Fiber Mode: Singlemode OS2
• Core/Cladding: 9/125 µm
• Cable Length: 20 m
• Cable Structure: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 7.5 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure clean and proper connector mating. This cable is ideal for indoor use in structured cabling systems.
