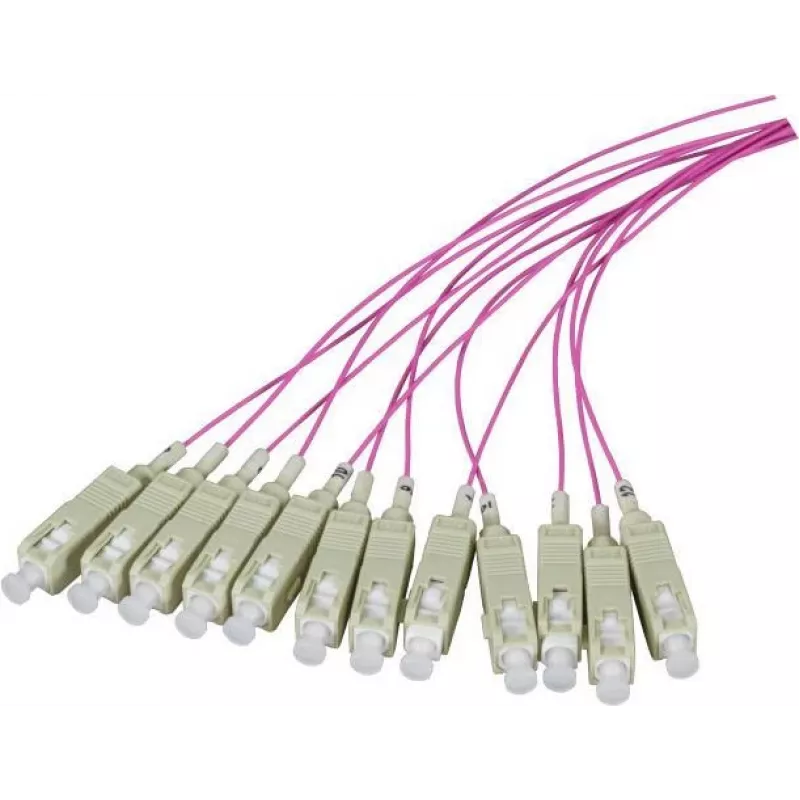

EFB Elektronik kuitu-pigtail SC OM4 50/125µm Erika violetti 2m

The EFB Elektronik Fiber Pigtail SC OM4 50/125µm Erika Violet 2m is a high-quality fiber optic pigtail designed for reliable and efficient network connections. Manufactured by EFB Elektronik, this pigtail features a SC connector with UPC polish, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This pigtail offers excellent performance with typical insertion loss < 0.3 dB and return loss > 30 dB. The OM4 fiber class provides high modal bandwidth, making it suitable for high-speed data transmission over multimode fiber networks. The LSZH jacket ensures safety in environments where low smoke and zero halogen are required.

Suitable for

• Data center cabling
• Telecommunications networks
• Local area networks (LAN)
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Mode: Multimode
• Fiber Class: OM4
• Core/Cladding Diameter: 50/125 µm
• Connector Type: SC
• Connector Polish: UPC
• Cable Length: 2 m
• Jacket Color: Erika Violet
• Number of Fibers: 1 (Simplex)
• Cable Diameter: 0.9 mm
• Jacket Material: LSZH
• Insertion Loss (typical): < 0.3 dB
• Return Loss (typical): > 30 dB
• Attenuation at 850nm: 2.3 dB/km
• Attenuation at 1300nm: 0.6 dB/km
• Modal Bandwidth (850nm): 4700 MHz*km
• Modal Bandwidth (1300nm): 500 MHz*km
• Ferrule Material: Zirconia Ceramic
• Operating Temperature: -20°C to +70°C
• Standard Compliance: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD

Recommendations

For optimal performance, pair this pigtail with compatible SC adapters and ensure proper cleaning before installation. Ideal for use in structured cabling systems requiring high bandwidth and reliability.
