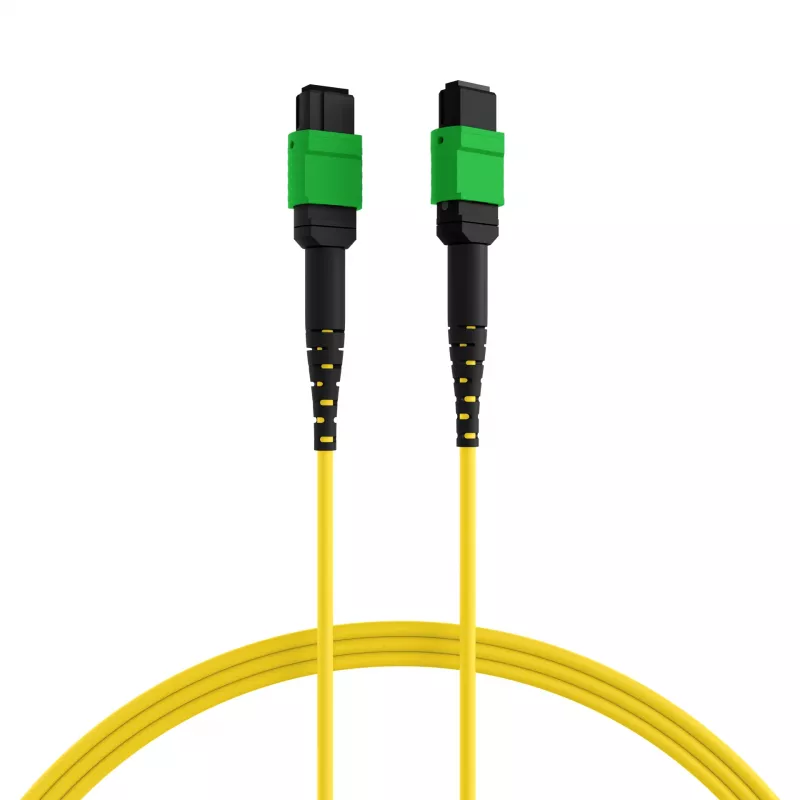

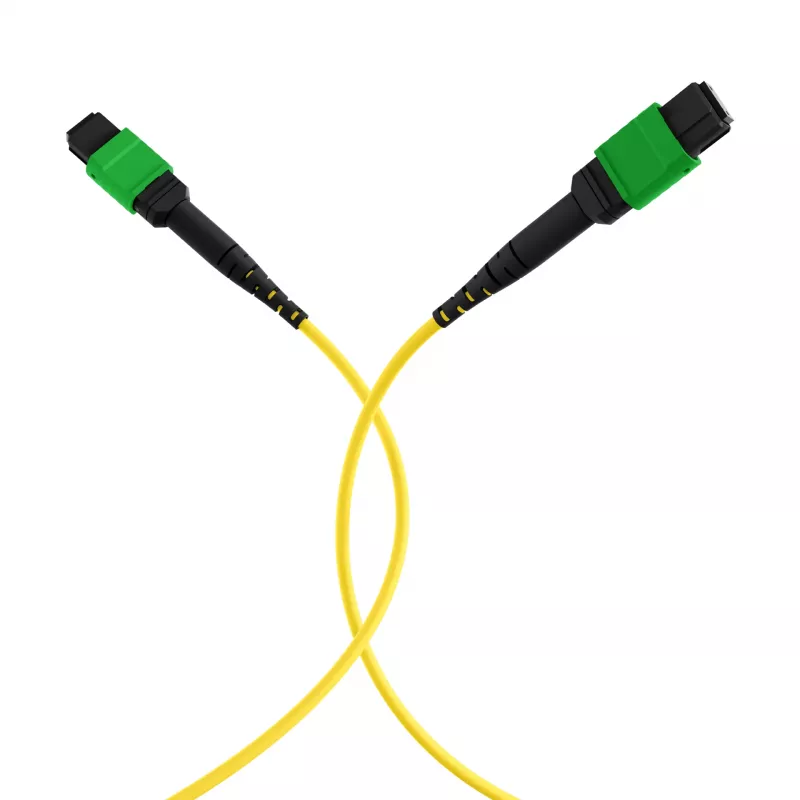

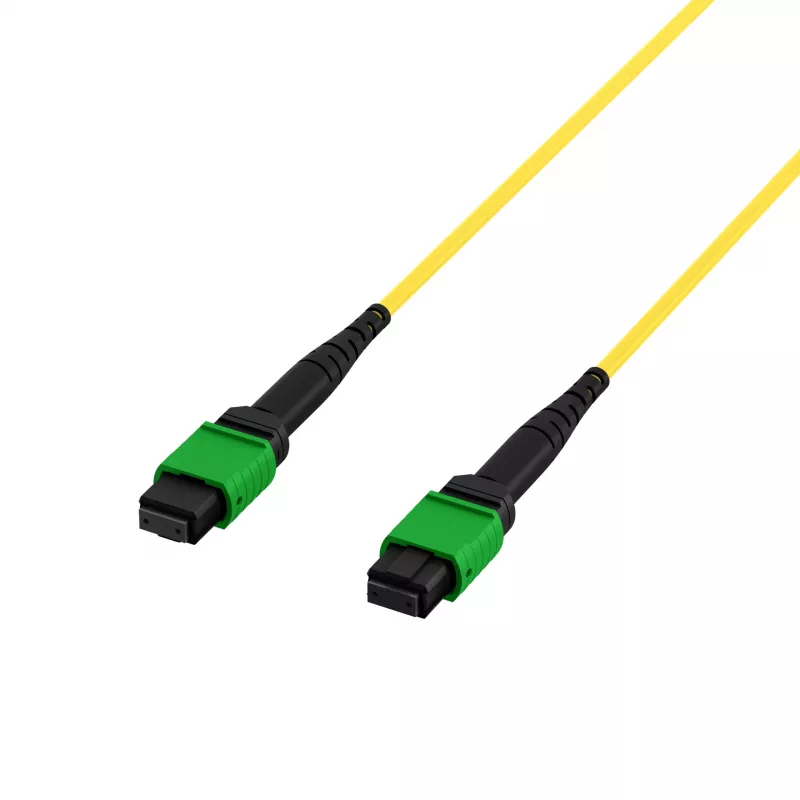

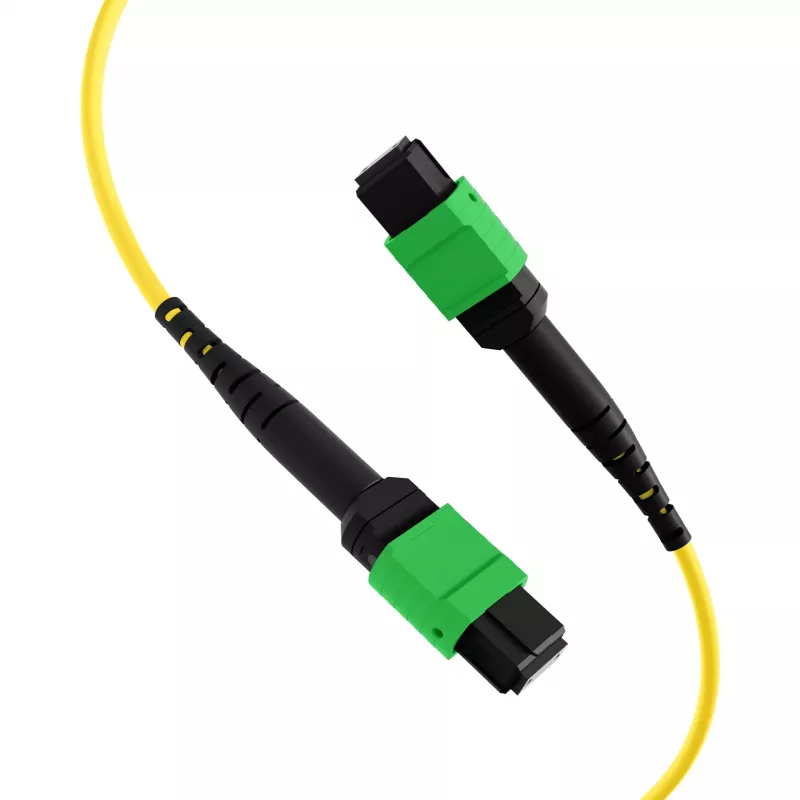

EFB Elektronik MPOF12MPOFOS2-1 MPO-PLUS APC - MPO-PLUS APC OS2 singlemode 12-säikeinen patchkaapeli, polariteetti tyyppi B, LSZH keltainen, 1 m

This 1-meter OS2 singlemode patch cable delivers 12 fibers in a compact MPO-PLUS APC female connector at each end, with Type B polarity for structured cabling in data centers and telecom rooms.

Overview

The EFB Elektronik MPOF12MPOFOS2-1 is a factory-terminated MPO trunk cable built for high-density fiber links. It uses 9/125 µm OS2 singlemode fiber with a yellow LSZH jacket and zirconia ceramic ferrules for stable optical performance.

What stands out

• MPO-PLUS APC female connectors on both ends
• 12 fibers with Type B polarity
• Low insertion loss: ≤ 0.35 dB per connector pair
• High return loss: ≥ 60 dB (APC)
• LSZH yellow jacket, 3.0 mm cable diameter

Technical details

• Cable type: Fiber optic patch cable
• Fiber type: Singlemode OS2 (9/125 µm)
• Number of fibers: 12
• Connector A: MPO-PLUS APC (female)
• Connector B: MPO-PLUS APC (female)
• Polarity: Type B
• Jacket material: LSZH
• Cable colour: Yellow
• Length: 1 m
• Insertion loss: ≤ 0.35 dB
• Return loss: ≥ 60 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Our verdict

A reliable 12-fiber MPO trunk cable for high-density singlemode links, with APC polish and LSZH jacket for safety and performance.
