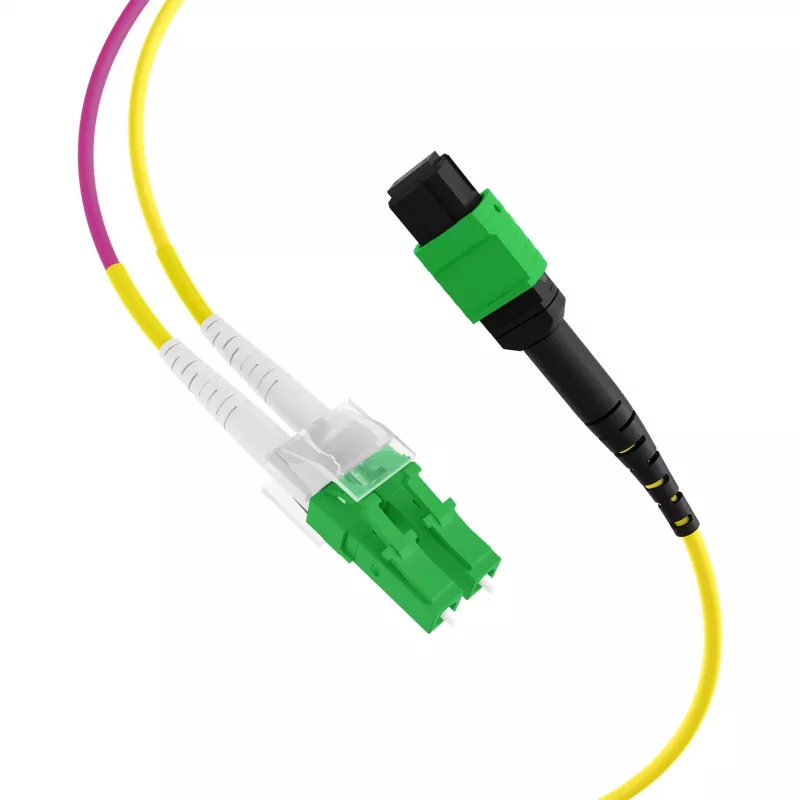

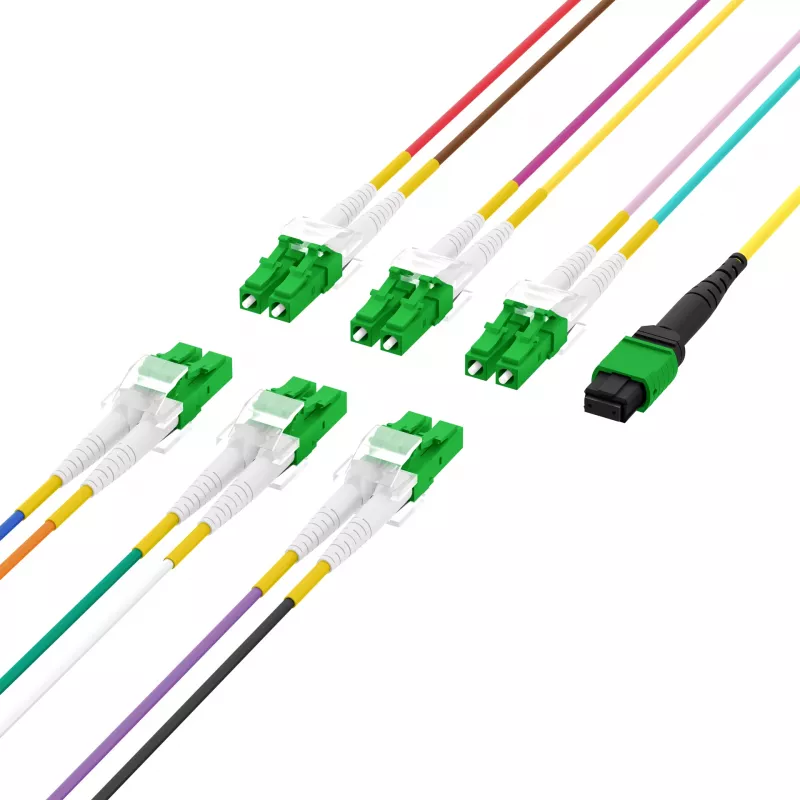

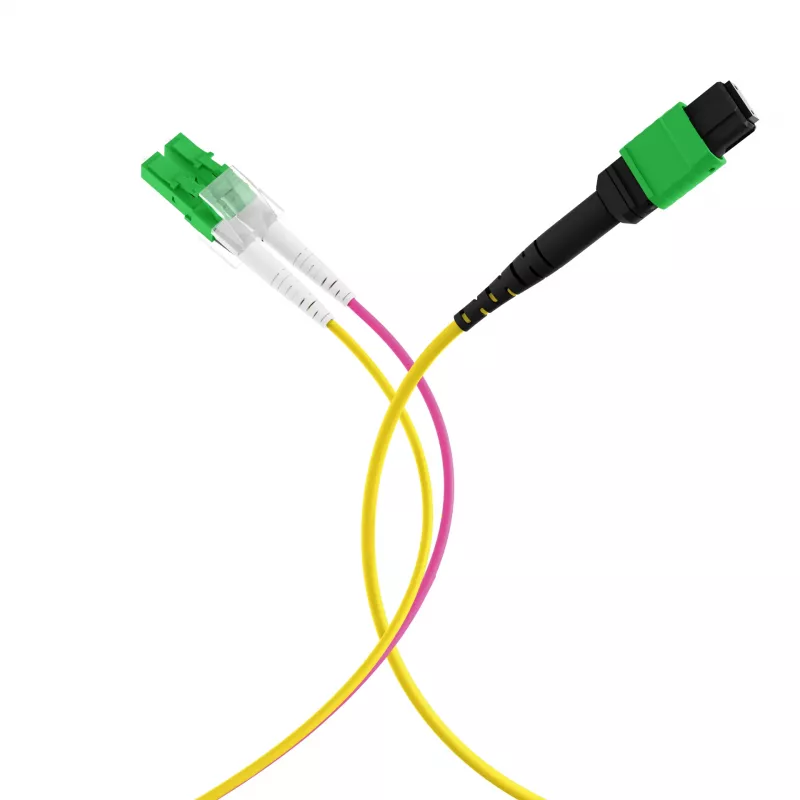

EFB Elektronik MTPF12LCAPC-5 - 5 m - OS2 - MTP - 12x LC kuitupurku­kaapeli

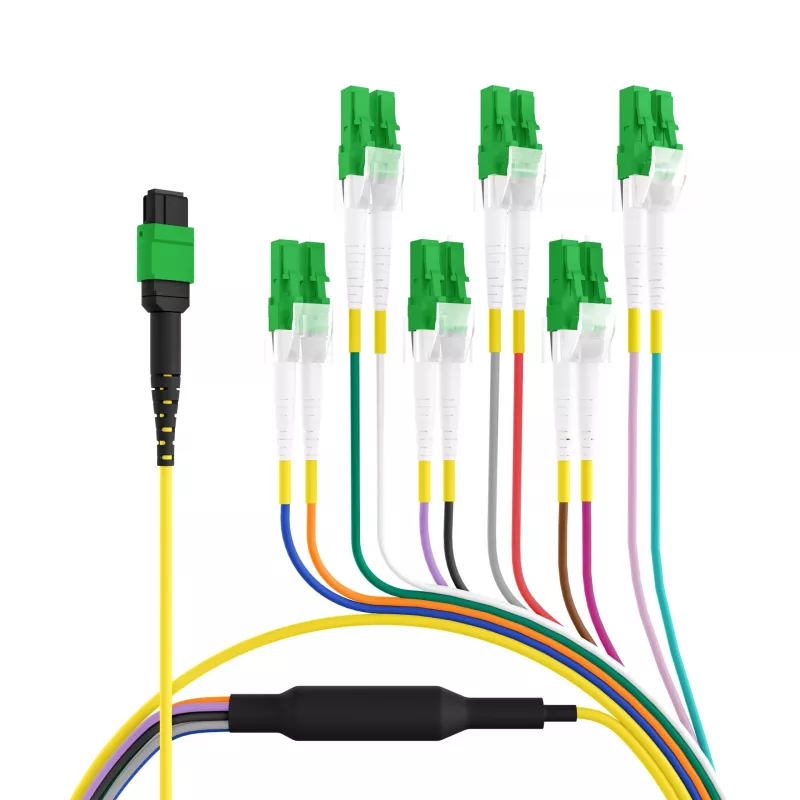

The EFB Elektronik MTPF12LCAPC-5 is a high-performance fiber optic breakout cable designed for demanding data center, SAN, LAN, and telecommunications applications. This 5-meter single-mode OS2 cable features an MTP (MPO) male connector on one end and 12 individual LC/APC connectors on the other, providing a reliable and efficient solution for high-density fiber connectivity.

Advantages

This breakout cable offers exceptional signal integrity with low insertion loss (≤0.35 dB for MTP, ≤0.25 dB for LC/APC) and high return loss (≥60 dB for LC/APC). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the Type B polarity (cross-over) supports standard MPO trunk cable configurations. Its compact 3.0 mm trunk diameter and 0.9 mm individual fibers allow for easy routing in tight spaces.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• High-density fiber patching

Key specifications

• Fiber Type: Single-mode OS2 (G.657.A1/A2)
• Connector A: MTP (MPO) Male
• Connector B: 12x LC/APC
• Number of Fibers: 12
• Cable Length: 5 m
• Jacket Material: LSZH
• Cable Color: Yellow
• Insertion Loss (MTP): ≤ 0.35 dB
• Insertion Loss (LC/APC): ≤ 0.25 dB
• Return Loss (LC/APC): ≥ 60 dB
• Polarity: Type B (Cross-over)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 10 mm
• Trunk Cable Diameter: 3.0 mm
• Individual Fiber Diameter: 0.9 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for use with MPO-based patch panels and LC/APC transceivers. Always verify polarity requirements for your specific network architecture.
