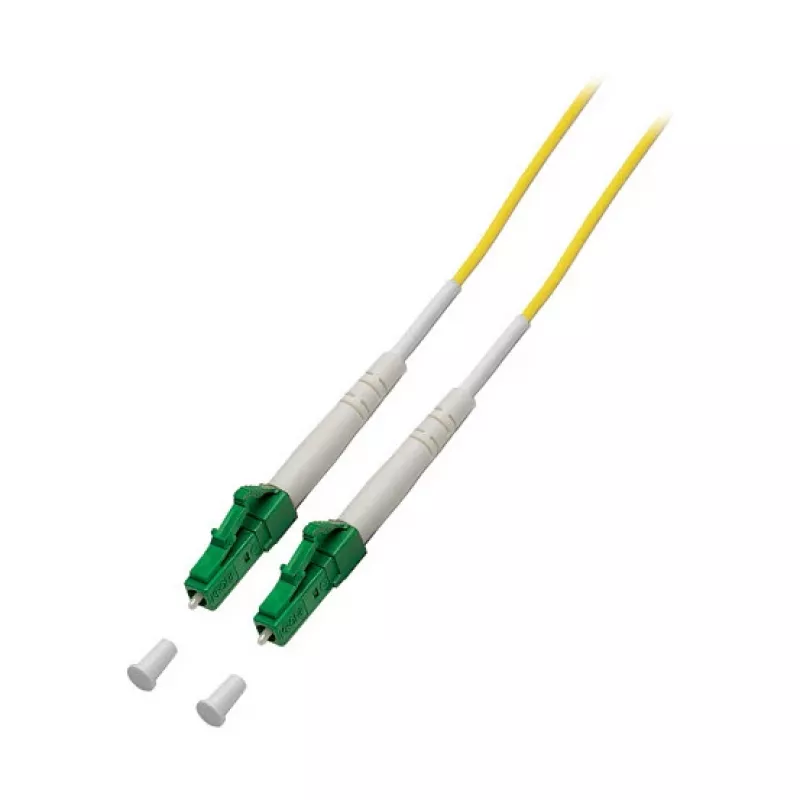

EFB Elektronik O2519.10 simplex-kuituverkkokaapeli LC/APC - LC/APC 9/125 OS2 G.657.A2 10m LSZH keltainen

The EFB Elektronik O2519.10 is a high-quality simplex fibre optic patch cable designed for reliable singlemode connections. Featuring LC/APC connectors on both ends, this cable is ideal for FTTH, data centres, and telecommunications networks where low loss and high return loss are critical.

Advantages

This patch cable offers exceptional performance with bend-insensitive G.657.A2 fibre, ensuring stable signal transmission even in tight installation spaces. The APC polish provides superior return loss performance, minimising back reflections. The LSZH jacket ensures safety in environments where low smoke and zero halogen are required.

Suitable for

• Fibre-to-the-Home (FTTH) installations
• Data centre interconnects
• Telecommunications networks
• LAN and WAN applications

Key specifications

• Connector Type: LC/APC to LC/APC
• Fibre Mode: Singlemode (OS2)
• Core/Cladding: 9/125 µm
• Cable Length: 10 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3 mm
• Insertion Loss: ≤ 0.25 dB
• Return Loss: ≥ 60 dB
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are cleaned before use and avoid exceeding the minimum bend radius. This cable is compatible with standard LC/APC ports and is suitable for both indoor and protected outdoor installations.
