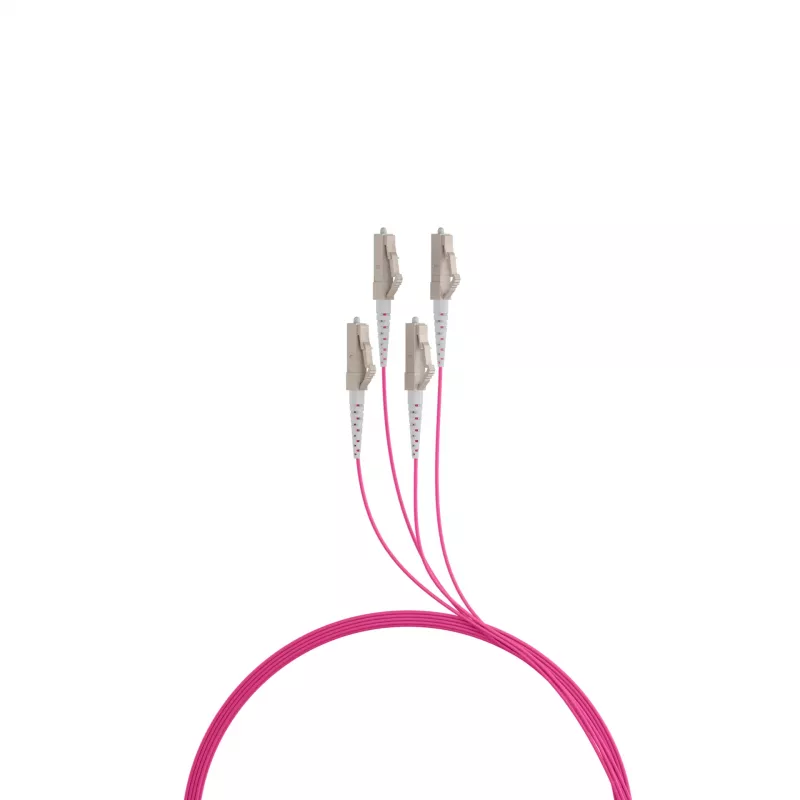

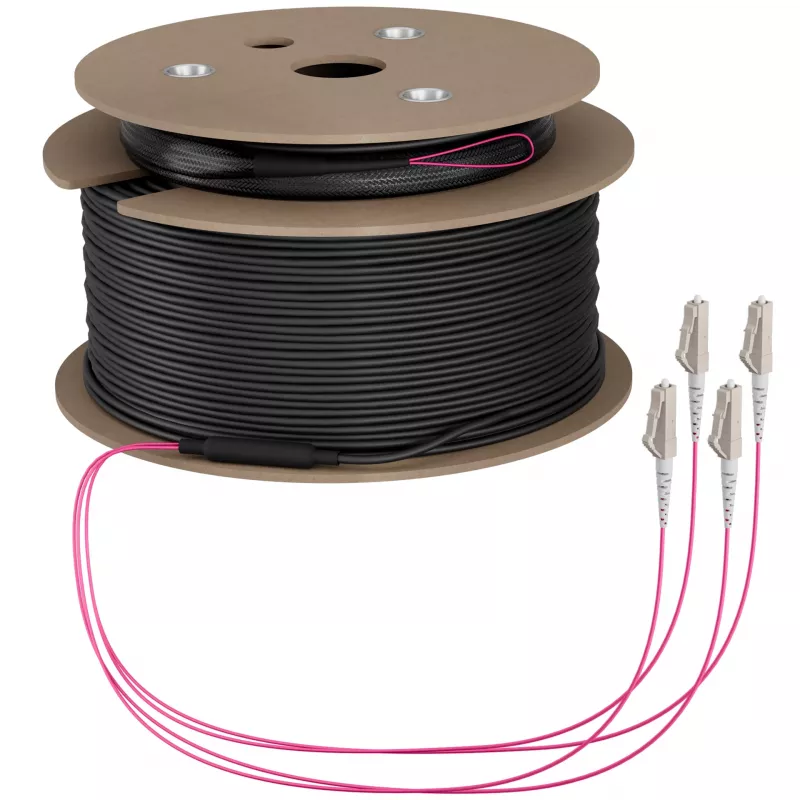

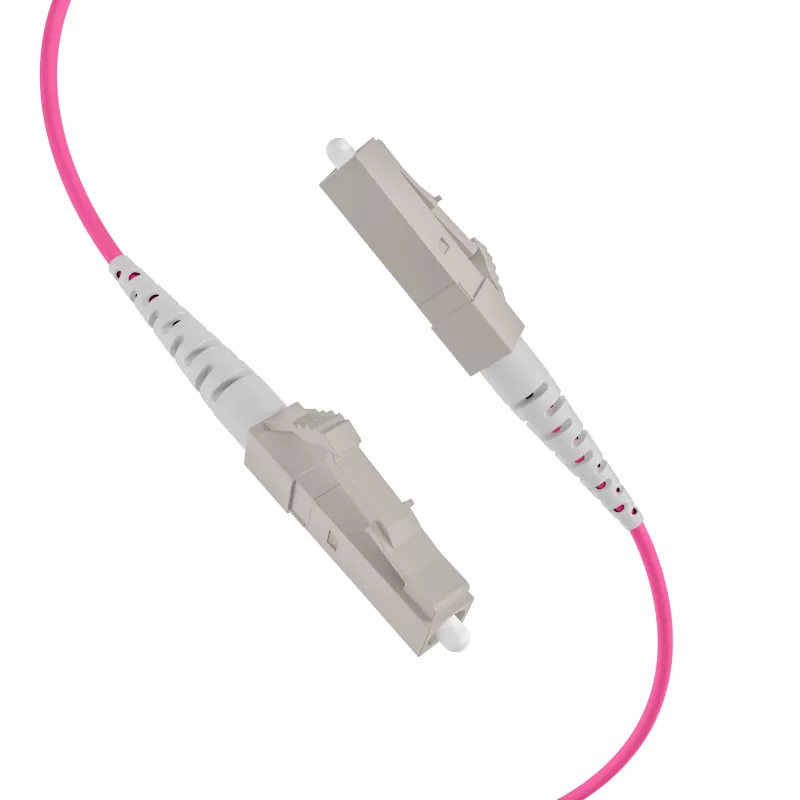

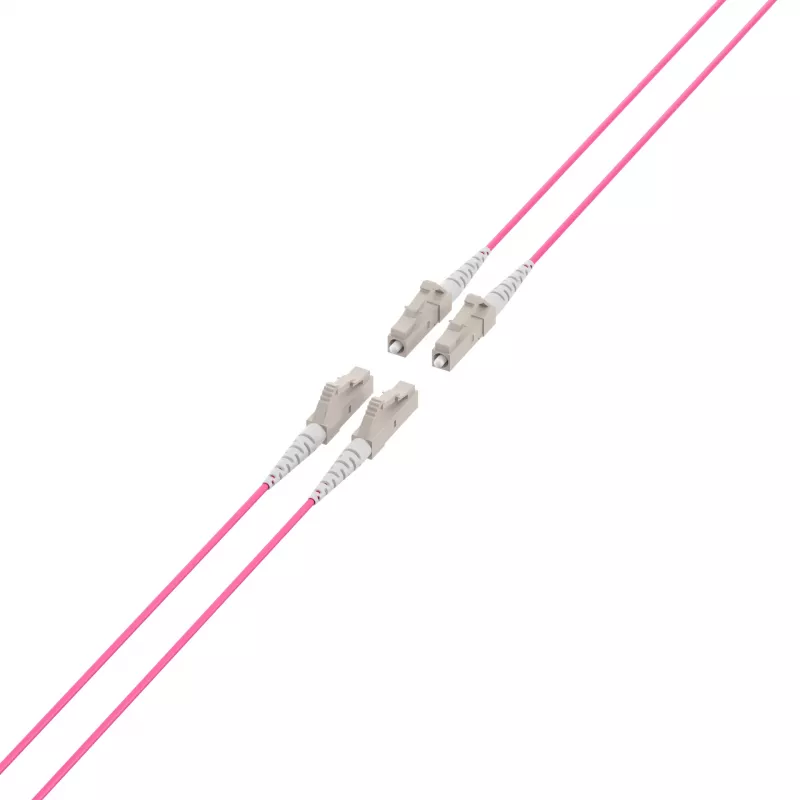

EFB Elektronik OM4 monimuotokuituinen runkokaapeli, 4 kuitua, LC-LC, 170 m, LSZH, Dca O8303S170OM4

This fiber optic trunk cable delivers high-speed multimode connectivity with OM4 performance, featuring 4 fibers in a 1x4 configuration and LC connectors on both ends. The 170-meter length supports extended indoor runs, while the LSZH sheath and Dca fire rating ensure safety in populated areas.

Advantages

The OM4 fiber class supports high bandwidth, making it suitable for 10G, 40G, and 100G Ethernet applications. The central loose tube design with non-metallic strength members provides durability and ease of installation. The halogen-free LSZH sheath reduces toxic smoke in case of fire, meeting Dca CPR requirements.

Suitable for

• Data center backbone cabling
• High-speed LAN backbones
• Indoor fiber optic installations requiring low smoke and halogen-free materials

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Number of Fibers: 4
• Cable Configuration: 1x4 (1 tube with 4 fibers)
• Connector A: LC
• Connector B: LC
• Cable Length: 170 m
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Class: Dca
• Cable Construction Code: U-DQ ZN BH
• Core/Cladding Diameter: 50/125 µm
• Wavelengths Supported: 850 nm, 1300 nm
• Bandwidth (850nm): 4700 MHz·km (OFL) / 3500 MHz·km (EMB)
• Bandwidth (1300nm): 500 MHz·km (OFL)
• Application Environment: Indoor
• Cable Design: Central Loose Tube
• Strength Members: Non-metallic
• Halogen-Free: Yes

Recommendations

Ideal for structured cabling in commercial buildings where fire safety and high bandwidth are priorities. Verify compatibility with your equipment's connector type and required length before ordering.
