EFB Elektronik osoitepistoke EKSP/G musta, rasteri 2,54 mm, avoin, 100 kpl

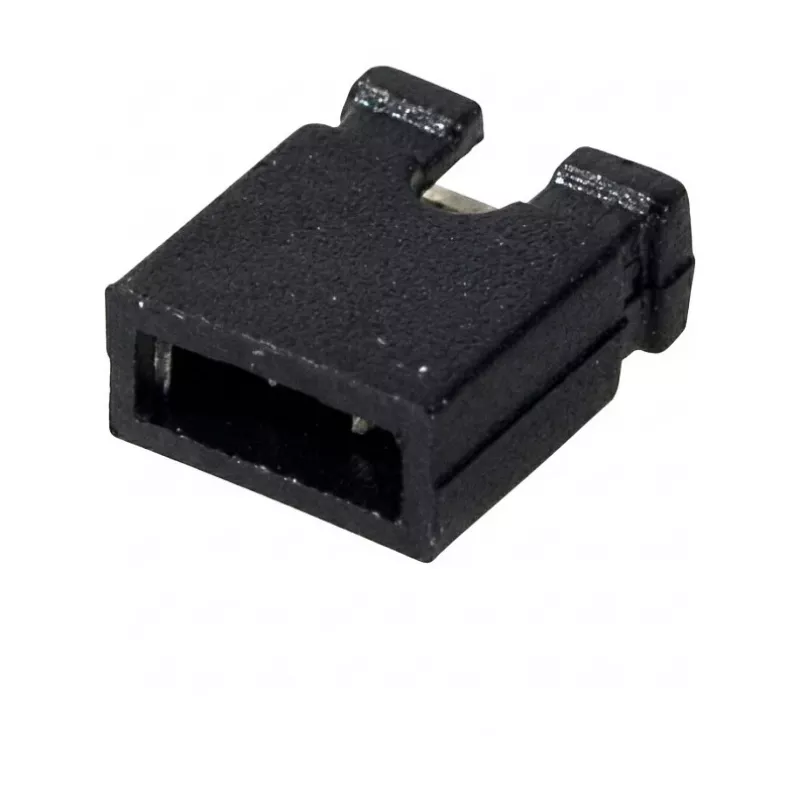

The EFB Elektronik Addressing Plug EKSP/G is a high-quality jumper plug designed for circuit configuration and addressing applications. With a compact 2.54mm pitch and open (unshrouded) design, it is ideal for use on pin headers in electronic devices and PCBs. This pack contains 100 pieces, ensuring ample supply for prototyping or production runs.

Advantages

Reliable gold-plated contacts ensure low contact resistance and high durability. The PBT insulator meets UL94V-0 flammability rating for safety. Suitable for a wide temperature range from -40°C to +105°C.

Suitable for

• Circuit configuration and addressing on PCBs
• Shorting pins for test points
• Industrial electronics and automation

Key specifications

• Model: EKSP/G
• Pitch: 2.54 mm
• Number of contacts: 2
• Contact material: Brass, gold over nickel plating
• Insulator: PBT, UL94V-0
• Current rating: 1 A max
• Voltage rating: 250 V AC/DC max
• Operating temperature: -40°C to +105°C
• Contact resistance: ≤ 20 mΩ
• Insulation resistance: ≥ 1000 MΩ
• Durability: 100 mating cycles
• Pack quantity: 100 pieces

Recommendations

For optimal performance, use with matching pin headers of 2.54mm pitch. Ensure proper insertion to avoid damage to contacts.
