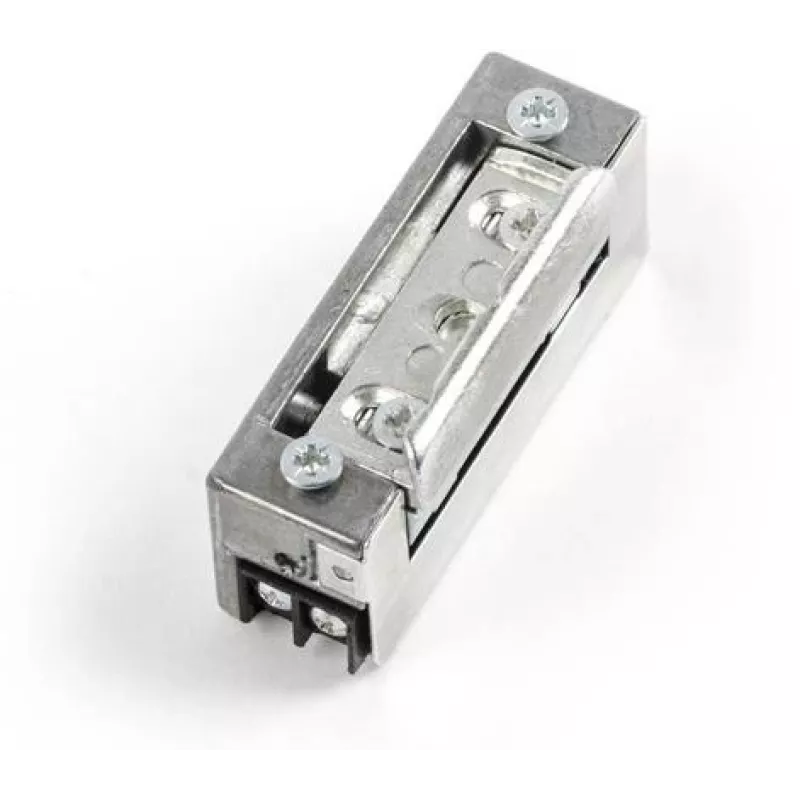

ELEKTRA-PLUS R4-12.11 sähköinen ovenavaaja 12V DC alennettu virta

The ELEKTRA-PLUS R4-12.11 is a professional-grade electric strike designed for access control systems. Operating at 12V DC with reduced current consumption, it provides reliable fail-secure locking for wooden, metal, and PVC doors. With a holding force of 3000 N and reversible latch, it suits both left and right-hand doors.

Advantages

Fail-secure operation ensures security during power loss. Reduced current design minimizes energy consumption. Reversible latch allows flexible installation. Durable zinc alloy body and steel latch withstand 200,000 cycles.

Suitable for

• Access control systems on wooden, metal, and PVC doors
• Commercial and residential security applications
• Left or right-hand door installations

Key specifications

• Operating Voltage: 12V DC
• Current Consumption: 250 mA
• Holding Force: 3000 N
• Latch Adjustment: 3 mm
• Mounting: Mortise (Flush Mount)
• Material: Zinc Alloy (body), Steel (latch)
• Temperature Range: -15°C to +40°C
• Durability: 200,000 cycles
• Connection: Screw Terminals

Recommendations

For optimal performance, pair with a compatible 12V DC power supply and ensure proper alignment during installation.
