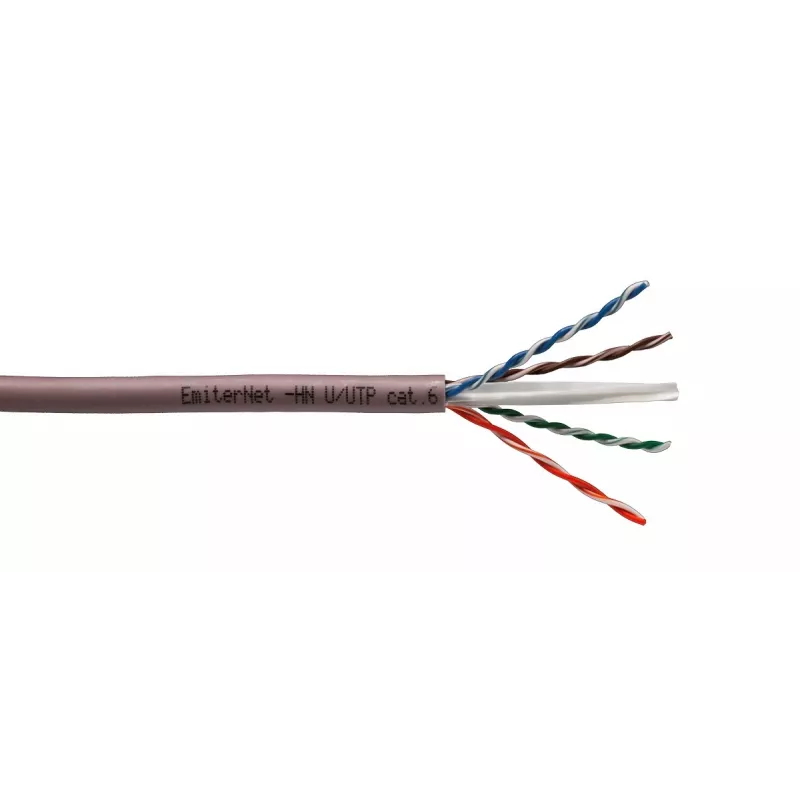

EMITER Cat.6 U/UTP 450MHz LS0H B2ca solid copper -verkkokaapeli, 4x2x23AWG, 305m rulla laatikossa

With a 450 MHz bandwidth and a B2ca fire rating, this cable is engineered for high-density indoor installations where safety and speed are non-negotiable. The EMITER K/EMITERNET-UTP6LS0HB2CA is a Category 6 unshielded twisted pair (U/UTP) cable built on a solid 23 AWG pure copper core, delivering reliable Gigabit Ethernet performance with headroom for 10 Gbps on shorter runs.

Overview

This cable is a practical backbone for office networks, data centres, and smart buildings. The low smoke zero halogen (LS0H) jacket meets the stringent B2ca-s1a,d1,a1 CPR classification, minimising toxic emissions and smoke in the event of fire. Supplied as a 305 m reel-in-box, it ensures easy pulling and reduced tangling during installation.

What stands out

• 450 MHz bandwidth exceeds standard Cat.6 requirements, improving crosstalk margins.
• Solid pure copper conductors ensure consistent impedance and long-term signal integrity.
• LS0H jacket with B2ca fire rating supports compliance with modern building codes.
• Reel-in-box packaging simplifies deployment and storage.

Technical details

• Cable type: U/UTP (unshielded), 4 pairs, 23 AWG solid copper
• Frequency: 450 MHz; impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• CPR class: B2ca-s1a,d1,a1; jacket: LS0H
• Outer diameter: 6.2 mm; operating temperature: -20°C to +60°C
• Voltage rating: 72 VDC max; insulation: HDPE
• Packaging: 305 m (1000 ft) reel-in-box

Our verdict

A dependable Cat.6 solution for installers who need certified fire performance and solid copper quality in a convenient pull-box.
