Emolevy ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX

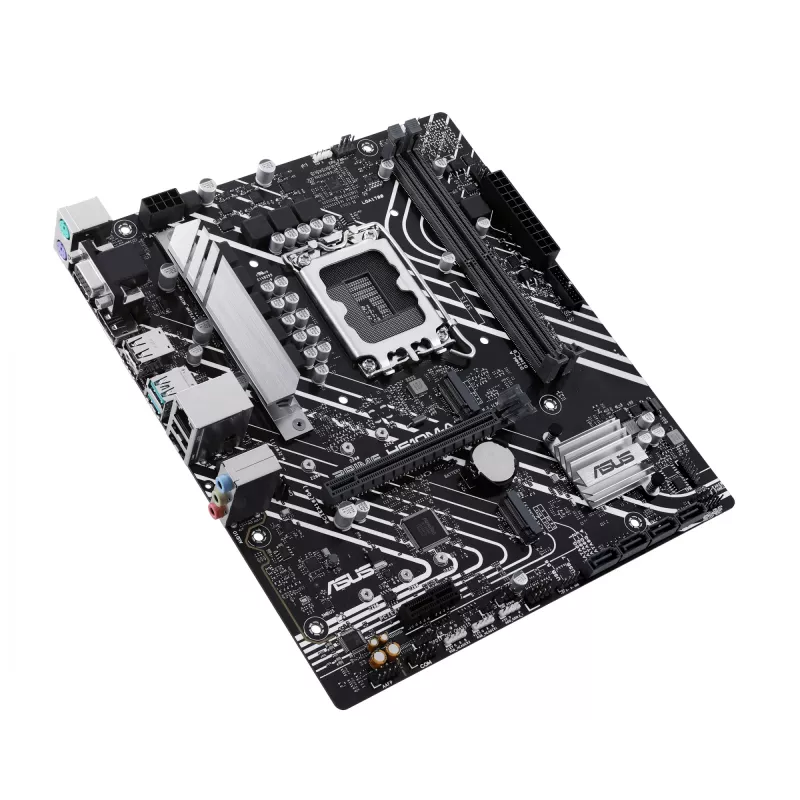

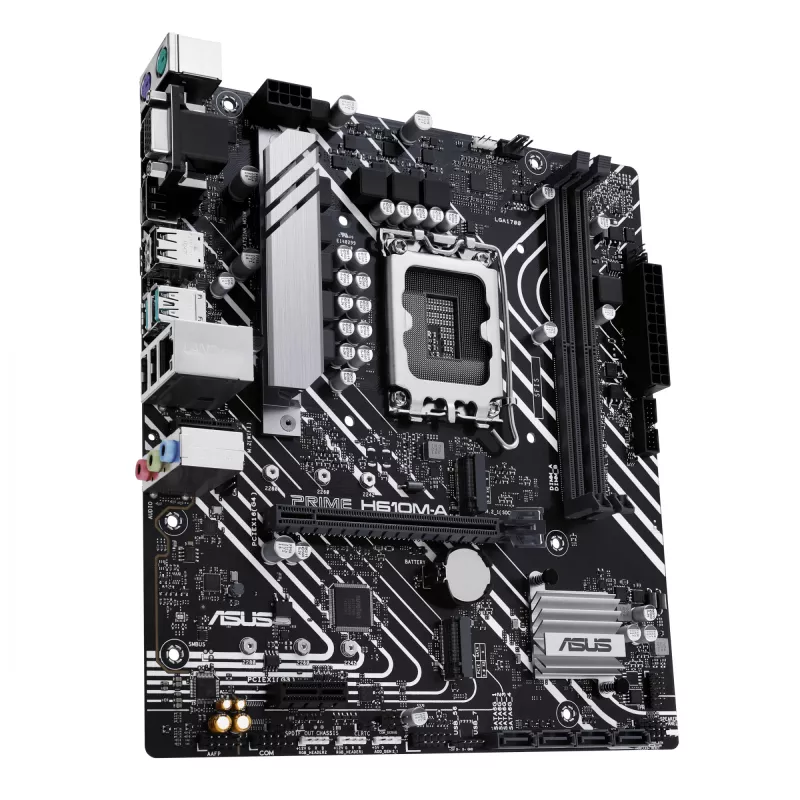

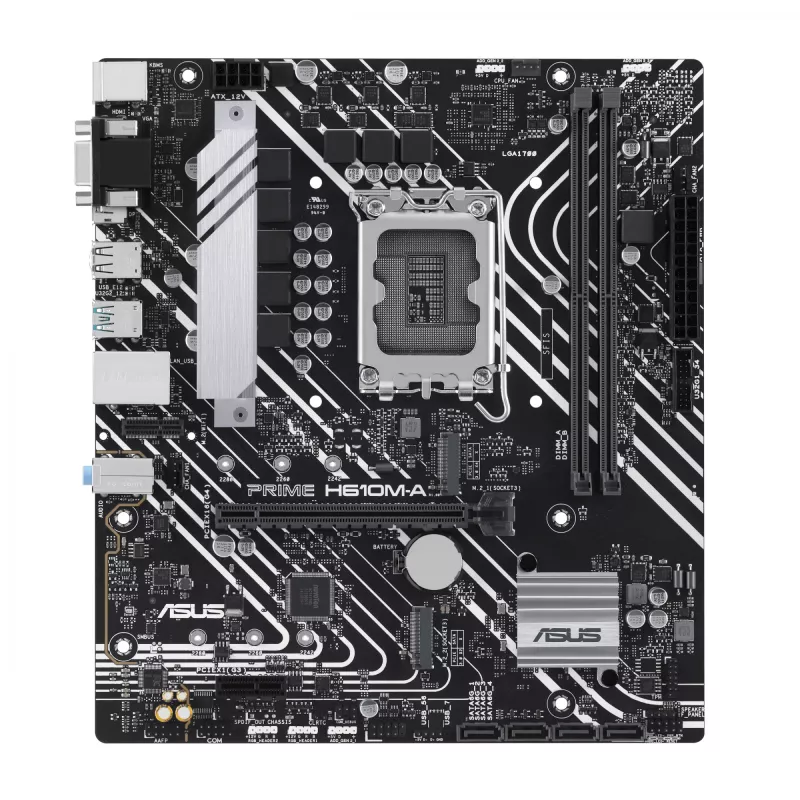

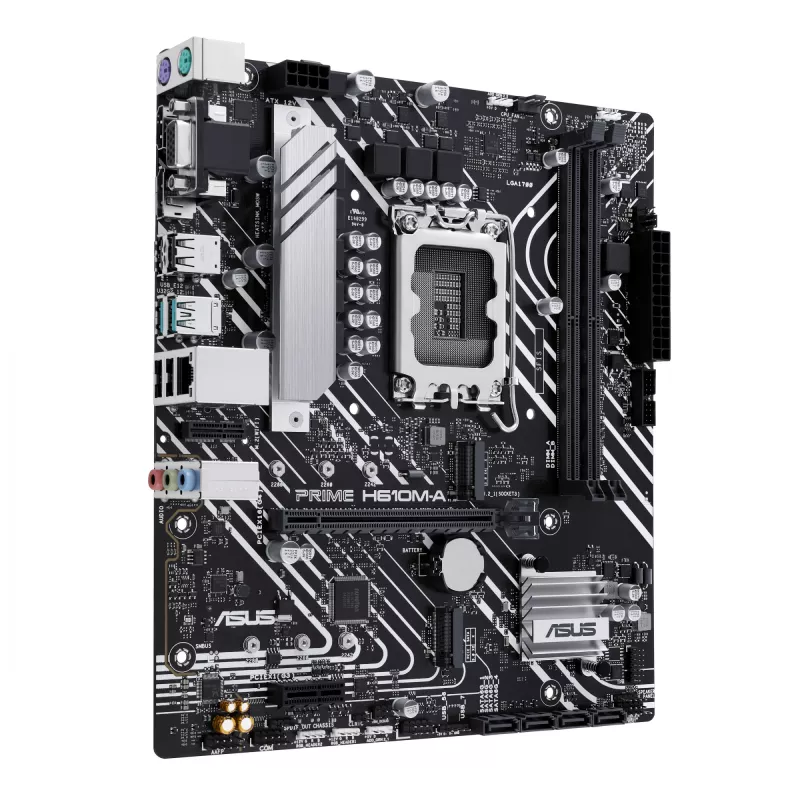

The ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX is a compact motherboard designed for building reliable desktop PCs. It supports Intel LGA 1700 processors including Celeron, Core i3, i5, i7 and i9 models and accepts DDR5-SDRAM memory in two DIMM slots with a maximum internal memory of 96 GB. The board provides M.2 and SATA III storage interfaces and includes Fast and Gigabit Ethernet connectivity for stable network access, making it suitable for office, home and light workstation systems.

Advantages

The motherboard combines current-generation processor support with DDR5 memory capability in a space-saving micro ATX form factor. Integrated M.2 and SATA III interfaces allow flexible storage configurations for both SSDs and HDDs. Network reliability is addressed through Fast and Gigabit Ethernet, and the PCI Express x1 slot offers expansion options for additional controllers or cards. The design focuses on compatibility and straightforward system assembly.

Suitable for

• Compact office PCs and business desktops
• Home multimedia and everyday computing systems
• Entry-level workstations requiring reliable connectivity
• Systems that need a small form factor with modern CPU and DDR5 support

Key specifications

• Form factor: Micro ATX
• Chipset: Intel H610
• CPU socket: LGA 1700 (supports Intel Celeron, Core i3/i5/i7/i9)
• Memory: DDR5-SDRAM, 2 DIMM slots, up to 96 GB total
• Expansion: 1 × PCI Express x1 (Gen 3.x)
• Storage interfaces: M.2 slot(s) and SATA III ports
• Network: Fast Ethernet and Gigabit Ethernet
• Weight: approximately 0.554 kg

How to use

Install the motherboard into a compatible micro ATX case, mount an LGA 1700 compatible CPU and attach the appropriate CPU cooler according to the cooler manufacturer’s instructions. Populate the DDR5 DIMM slots with compatible memory modules up to the supported total capacity, and connect storage devices to the M.2 slot or SATA III ports. Attach power connectors from a suitable ATX power supply, install any required expansion cards into the PCIe x1 slot, and connect Ethernet and peripheral cables. Configure BIOS/UEFI settings on first boot to detect CPU, memory and storage devices and to set boot priorities.

Recommendations

Use certified DDR5 memory modules listed as compatible by the motherboard vendor and ensure the CPU cooling solution is rated for LGA 1700 socket mounting. Keep BIOS/UEFI firmware up to date for improved stability and compatibility, and use a quality power supply that meets the system’s power requirements. For network reliability, use shielded Ethernet cabling and proper router or switch configuration.
