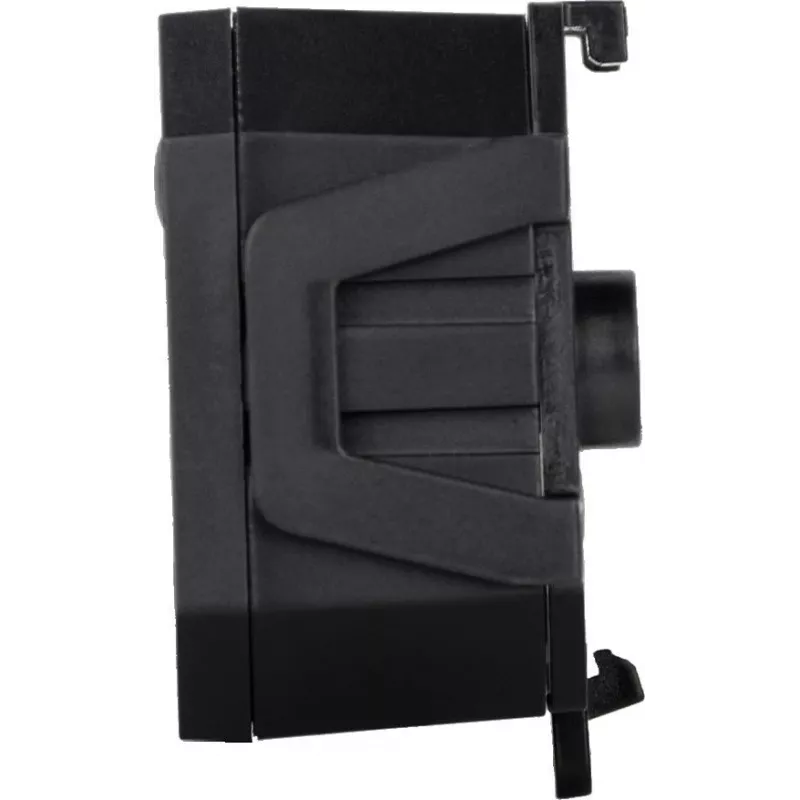

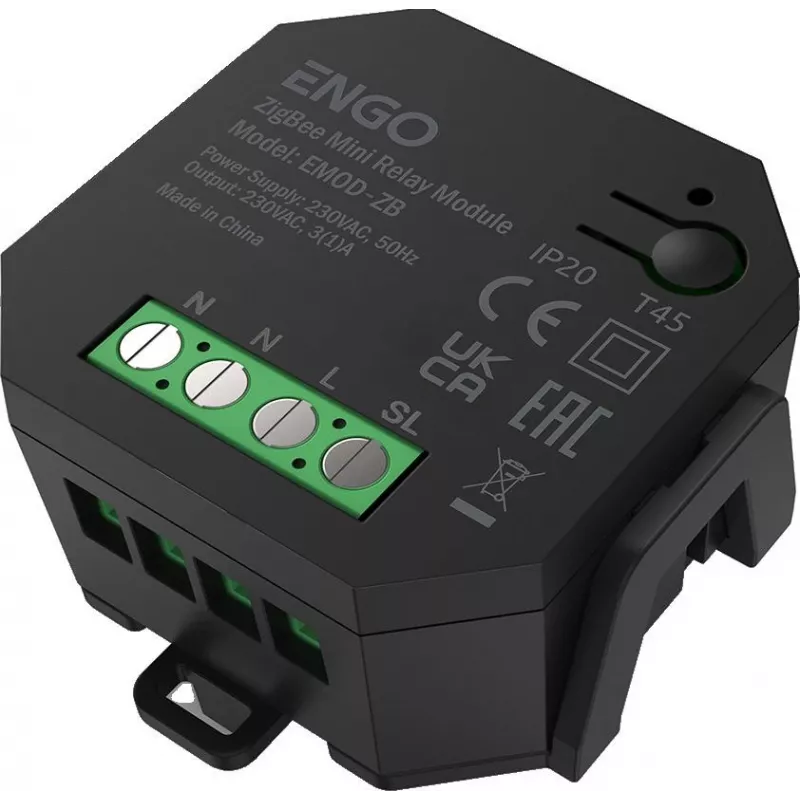

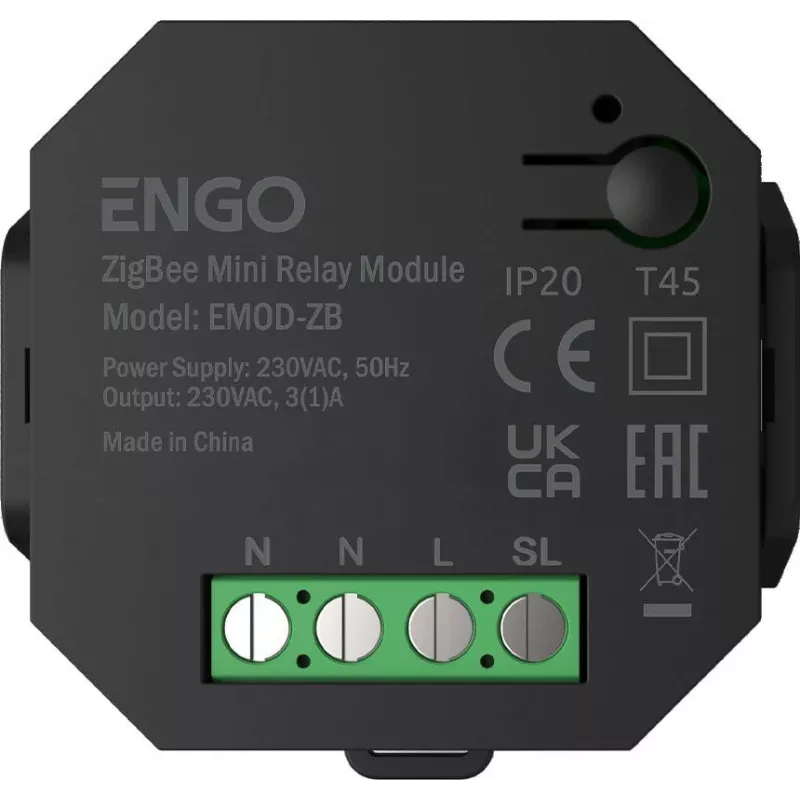

ENGO Controls EMOD-ZB ZigBee-relemoduuli

The ENGO Controls EMOD-ZB is a ZigBee 3.0 compatible relay module designed for wireless control of heating systems, including boilers, pumps, and electric heaters. It features a single SPST normally open relay rated for 16A resistive load, flush-mounted installation, and an LED status indicator. Ideal for smart home integration with ENGO Controls ZigBee thermostats and gateways.

Advantages

Wireless ZigBee 3.0 control eliminates the need for additional wiring. The 16A relay supports high-power loads, and the compact flush-mount design fits standard in-box installations. LED indicator provides clear status feedback.

Suitable for

• Heating system control (boilers, pumps, electric heaters)
• Smart home automation with ZigBee 3.0 networks
• Retrofit installations where wireless control is preferred

Key specifications

• Wireless Protocol: ZigBee 3.0
• Power Supply: 230V AC, 50Hz
• Max Relay Load (Resistive): 16A
• Max Relay Load (Inductive): 3A
• Output Type: SPST Normally Open
• Number of Relays: 1
• Mounting Type: Flush-mounted (in-box)
• Operating Temperature: 0°C to 40°C
• Protection Rating: IP20
• Communication Range: Up to 30m (indoor)
• LED Indicator: Yes

Recommendations

For optimal performance, pair with ENGO Controls ZigBee thermostat and gateway. Ensure proper installation by a qualified electrician.
