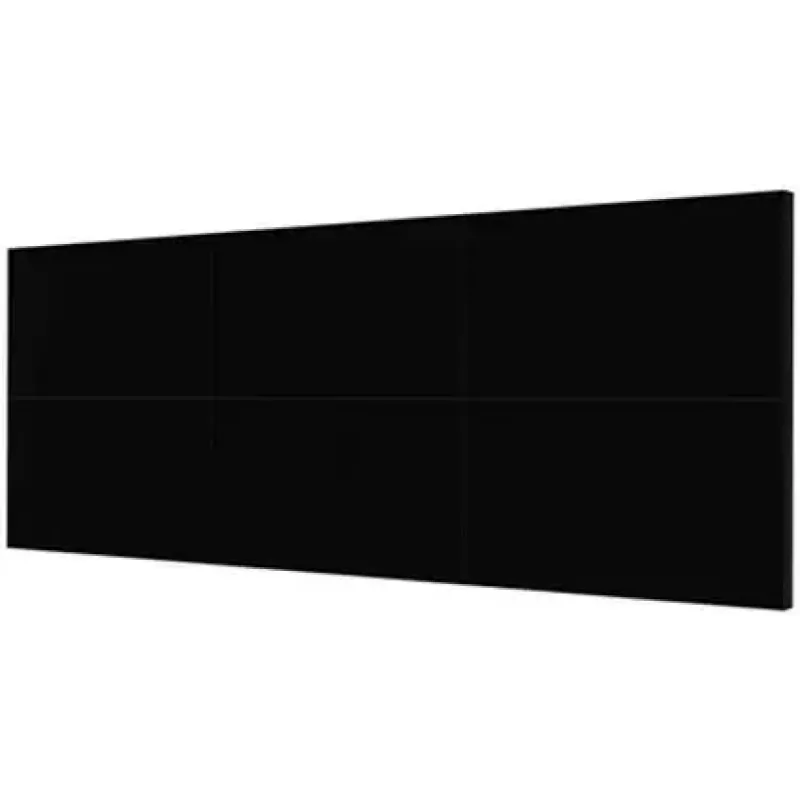

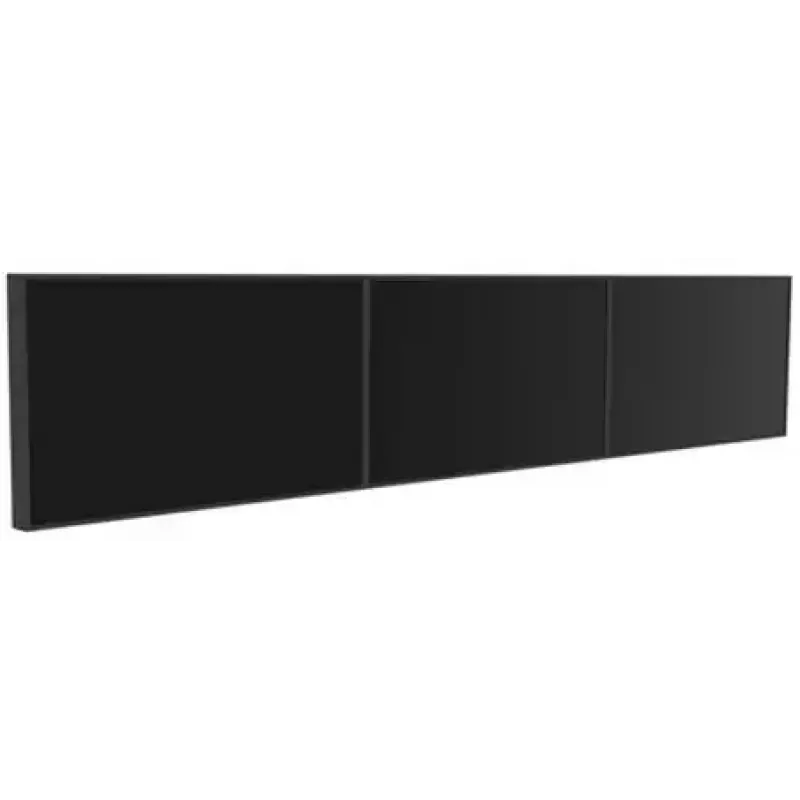

The SMS Smart Media Solutions PW010001 is a signage display mount engineered for screens approximately 37" to 65" (94 cm to 165.1 cm). Constructed from aluminium with a black finish, the mount supports displays up to 100 kg and is compatible with VESA patterns up to 100 x 400 mm. It is suitable for building a cost-effective video wall or mounting several screens in a row, and can also be used to fix a single large display close to the wall for a low-profile installation.

Advantages

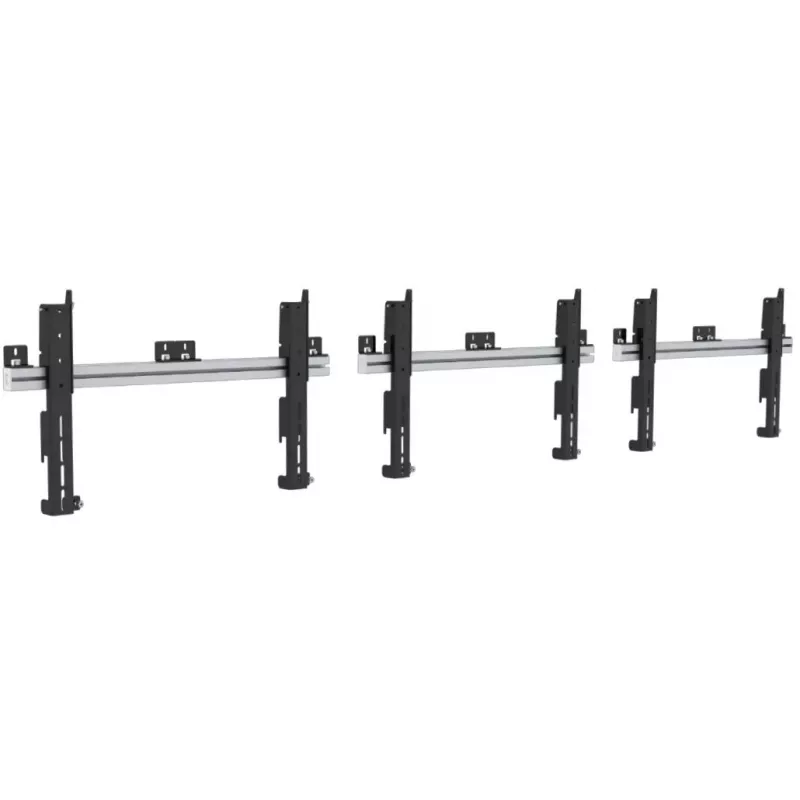

The mount is supplied as modular units, each delivered with all necessary components for assembly. Modules can be combined to create continuous, edge-to-edge alignments and to position screens nearer to the wall than many alternative products. Installation is straightforward and requires only three steps to set up a module. The aluminium and black design provides a stable, durable structure with a modern appearance.

Suitable for

• Video walls composed of multiple screens
• Linear arrays of signage displays in retail or public areas
• Single large digital signage installations requiring a low-profile mount
• Professional installations where VESA 100 x 400 mm compatibility is needed

Key specifications

• Maximum screen size: 65" (approximately 165.1 cm)
• Supported screen dimensions: from about 37" (94 cm)
• Maximum weight capacity: 100 kg
• Maximum VESA mount: 100 x 400 mm
• Product colour: Aluminium, Black

How to use

Select the number of modules required for your layout, unpack each complete module and follow the three-step assembly procedure supplied with the product. Attach each module to the wall at the planned mounting points, secure the display using the compatible VESA attachment, and align adjacent modules to achieve edge-to-edge placement. For single-display use, install one module and position the display to sit close to the wall for a compact finish.

Recommendations

Confirm display VESA pattern and weight before installation. Ensure wall structure and fixings are rated to support the combined weight of the displays and mounts. Use appropriate tools and, if needed, professional installers for large or high installations.
