Equip Cat.5e saksalainen modulaarinen pistorasiasarja

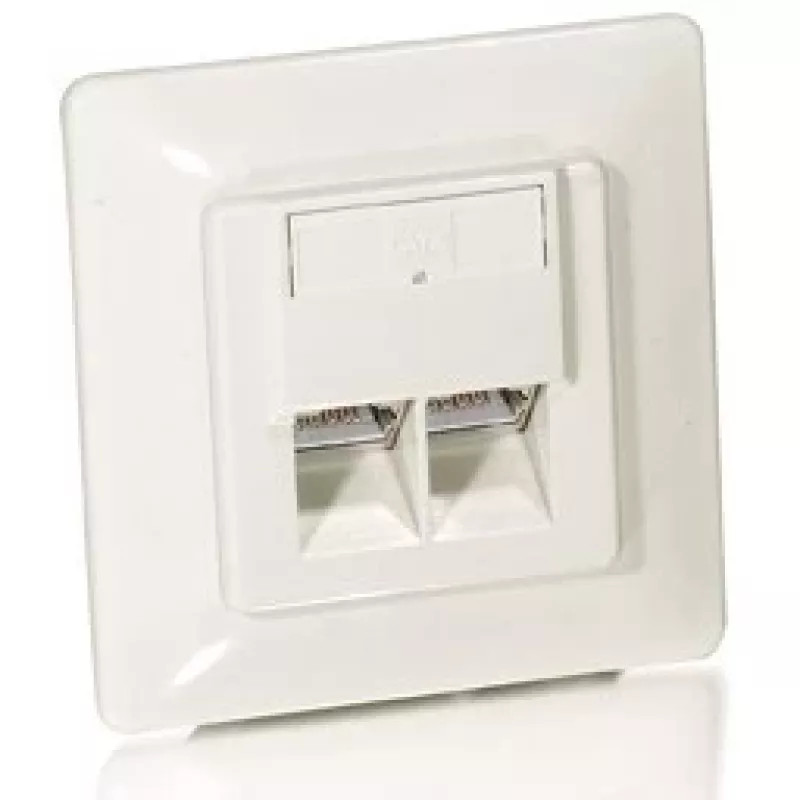

The Equip Modular Outlet Set Cat.5e (model 125721) includes a back box and a 2‑port faceplate with an integrated Cat.5e RJ‑45 socket. Housed in white plastic with compact dimensions (80 mm × 80 mm × 39 mm) and weighing 0.233 kg, the set provides a complete solution for mounting a network outlet and simplifies cable termination and installation.

Advantages

The modular outlet set offers a pre‑matched back box and faceplate for consistent fit and appearance. The Cat.5e RJ‑45 socket supports standard data transmission for Ethernet networks, while the white plastic housing ensures easy integration into residential and commercial interiors. The package includes a graphical quick install guide to assist with installation.

Suitable for (tasks / use cases)

• Ethernet network connections (Cat.5e)
• Wall mounting of RJ‑45 outlets in homes and offices
• Retrofit and new installation cabling projects
• Small server rooms, workstations and telephony outlets

Key specifications

• Brand: EQUIP
• Model / MPN: 125721
• EAN: 4015867141632
• Category: Outlets
• Connector: RJ‑45 (Cat.5e)
• Faceplate: 2‑port
• Material / colour: White plastic
• Dimensions (W×H×D): 80 × 80 × 39 mm
• Weight: 0.233 kg

How to use

Prepare the network cable by stripping and terminating conductors according to the Cat.5e wiring standard. Mount the back box into the wall opening, secure it, and connect the cable to the RJ‑45 socket following the quick install guide included. Attach the 2‑port faceplate to the mounted module and fasten the visible screws to complete the installation. Test the connection with appropriate network testing tools to verify continuity and signal integrity.

Recommendations

Use the outlet set with Cat.5e‑rated cabling and compatible networking equipment. Avoid exposure to excessive moisture or direct sunlight. For best performance in structured cabling systems, keep cable runs within recommended length limits and follow local installation standards.
