Equip Cat.6A F/FTP ohut verkkokaapeli 1,5m punainen 10000 Mbit/s

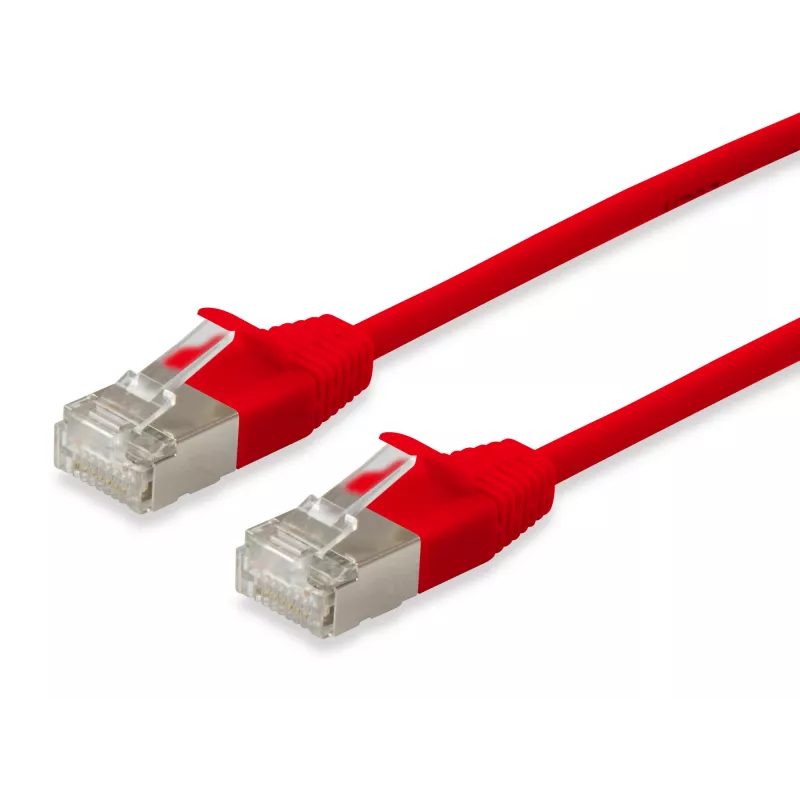

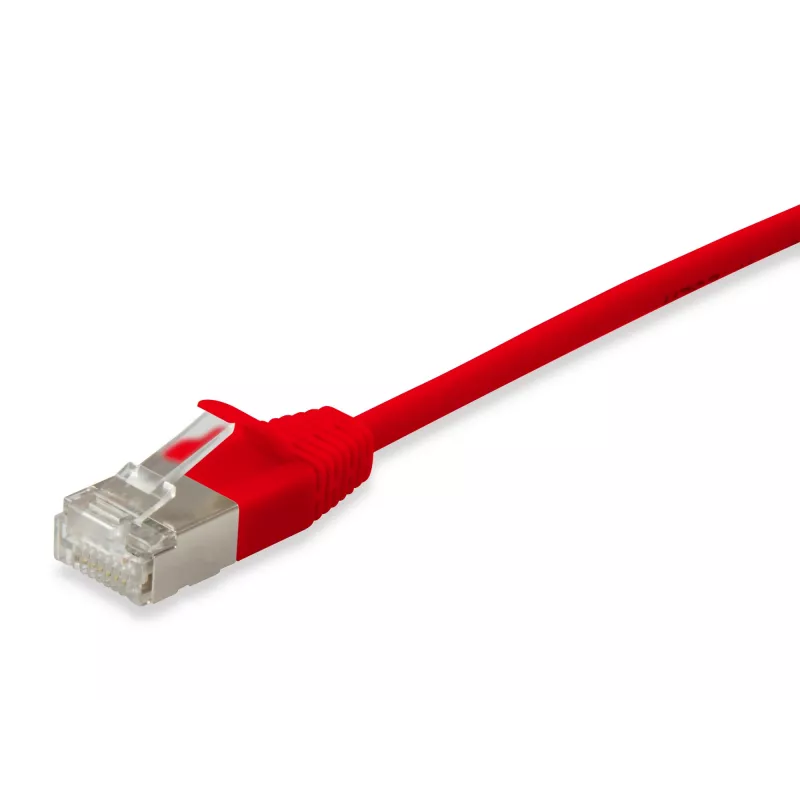

The Equip Cat.6A F/FTP Slim Patch Cable is a 1.5 m network cable that delivers up to 10000 Mbit/s transmission for 10GBase-T applications. Its ultra-slim 3.8 mm diameter design reduces bundle size and simplifies routing in high-density environments such as data centers and telecom rooms. The cable uses stranded bare copper conductors and F/FTP (foil with individual pair braid) shielding to lower EMI/RFI interference while remaining RoHS and LSZH/LSOH compliant.

Advantages

Ultra slim construction allows more cables to be routed in the same space, reducing the need to modify cable pathways. The F/FTP shielding combined with a molded boot and strain relief ensures stable 500 MHz performance and reliable 10 Gbit/s transmission. The cable supports Power over Ethernet (PoE/PoE+) and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• Data centers and server racks
• Telecommunications rooms and patch panels
• High-density cabling installations
• Connections requiring 10 Gigabit Ethernet and PoE

Key specifications

• Length: 1.5 m
• Connector: RJ-45 straight male – RJ-45 straight male
• Cable type: Cat6a F/FTP (FFTP)
• Conductor: Stranded bare copper, AWG 32/7
• Diameter: 3.8 mm (ultra slim)
• Bandwidth: 500 MHz
• Data rate: up to 10000 Mbit/s (10 Gbit/s)
• Shielding: Foil and braid (per-pair foil + overall braid)
• Standards: ISO/IEC 11801, EN 50173
• Safety: LSZH/LSOH, RoHS compliant
• Color: Red

How to use

Connect one RJ-45 end to a network device (switch, router, NIC) and the other end to the corresponding port on the patch panel or another device. Ensure connectors are fully inserted until the latch clicks. Route the slim cable through cable management paths, avoiding sharp bends and excessive pulling force; the molded boot with strain relief protects the termination point during installation.

Recommendations

For best performance, maintain separation from high-voltage power cables, avoid tight bundling that exceeds the cable’s bend radius, and verify PoE power requirements with connected devices. Use in environments where LSZH material is required for reduced smoke and halogen-free emissions.
