Equip USB 2D omnidirektionaalinen pöytälukija 1MP, kiinteä viivakoodilukija

The Equip USB 2D Omnidirectional Desktop Scanner 1MP is a fixed desktop barcode reader designed for retail, point-of-sale and office environments. Equipped with a 1MP sensor and omnidirectional scanning, it captures 1D and 2D barcodes quickly and accurately from varied angles. The wired USB interface ensures straightforward connection to computers and POS systems, while the compact, stable desktop housing supports hands-free scanning on counters and desks.

Advantages

This scanner supports both 1D and 2D codes (including QR Code and Data Matrix) and uses a 1MP LED sensor for high-resolution capture. Its wired USB connectivity and 1.8 m cable provide reliable data transfer and power via a 5 V, 0.4 A input. The ABS housing and IP54 rating offer dust and splash protection suitable for busy retail and office settings. Lightweight and compact, it provides up to 150 reads/s and a working distance up to 700 mm for flexible placement and fast throughput.

Suitable for

• Retail checkout and point-of-sale systems
• Inventory and stock management
• Document handling and registration tasks
• Product tracking and logistics operations

Key specifications

• Scanner type: 1D/2D
• Sensor: 1MP LED
• Supported 1D codes: UPC-E, UPC-A, Plessey, Pharmacode, MSI, Interleaved 2 of 5, EAN-8, EAN-13, Code 93, Code 39, Code 128, Codabar
• Supported 2D codes: Data Matrix, PDF417, QR Code
• Read rate (max): 150 reads/s
• Working distance: up to 700 mm

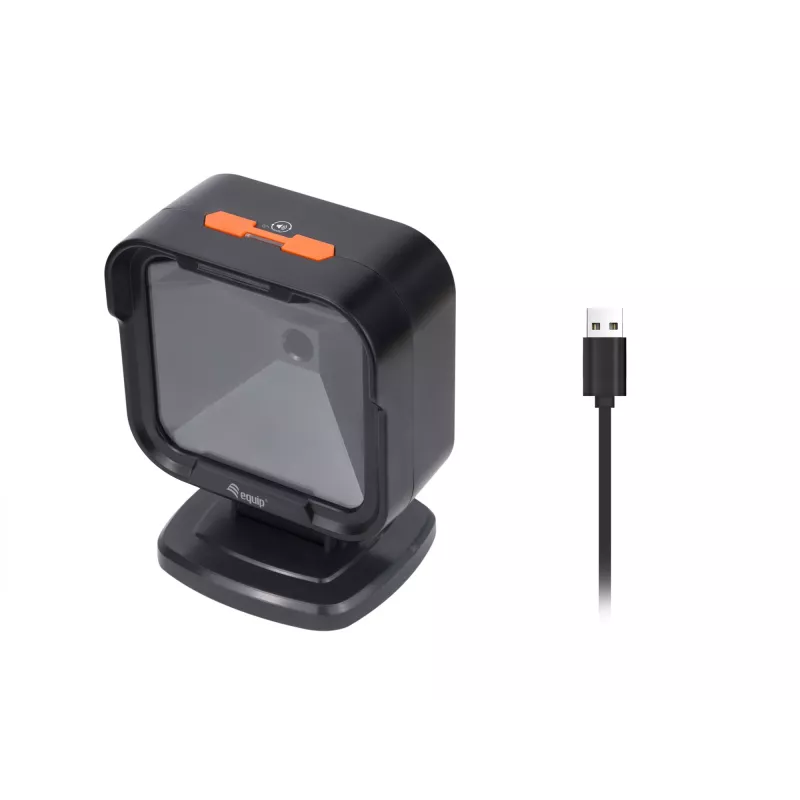

• Connectivity: Wired USB (1.8 m cable)
• Power input: 5 V, 0.4 A
• Housing material and colour: ABS, black
• Ingress protection: IP54
• Weight: 0.508 kg; Dimensions (W×D): 146 × 114 mm

How to use

Place the scanner on a stable counter or desk surface and connect it to a computer or POS terminal using the supplied USB cable. Position barcodes within the scanner field and present items or documents to the scanner window; omnidirectional scanning captures codes without precise alignment. For hands-free operation, leave the scanner mounted on the desktop and move items through the scanning area. Ensure the host system recognises the device and that required drivers or POS settings are configured.

Recommendations

For best results, keep the scanner window clean and free of scratches, avoid direct, strong light sources aimed at the sensor, and operate within the specified working distance. Use a stable USB supply and ensure the connected system is configured to accept keyboard wedge or serial input as required.
