Ernitec 0070-24122-POE tietokonenäyttö 55,9 cm (22 inch) 1920 x 1080 pikseliä Full HD LED musta

Ernitec 22'' PoE Powered surveillance monitor with a 22-inch TFT LED LCD panel offers Full HD 1920×1080 resolution and a 16:9 aspect ratio. Designed for continuous 24/7 operation, the monitor features a 5 ms response time, wide 178° viewing angles and built-in speakers. It supports Power over Ethernet (IEEE 802.3af/at/bt), allowing a single Ethernet cable to carry both data and up to 100 W power from a PoE switch, injector or PoE-enabled NVR. The monitor has VESA 100×100 mounting compatibility and is intended for use in surveillance and control-room environments.

Advantages

The Ernitec 22" PoE monitor combines Full HD image quality and 3D digital noise reduction for clear, high-fidelity video with minimal ghosting. PoE support removes the need for separate power cabling, simplifying installation and reducing infrastructure and maintenance costs. The wide viewing angle and stable digital processing ensure consistent image reproduction across multiple viewing positions, while the VESA mount and compact form factor enable flexible placement in surveillance setups.

Suitable for

• Control rooms and security monitoring stations
• Video surveillance systems and CCTV operator desks
• Remote monitoring points where PoE power simplifies cabling
• Environments requiring continuous 24/7 display operation

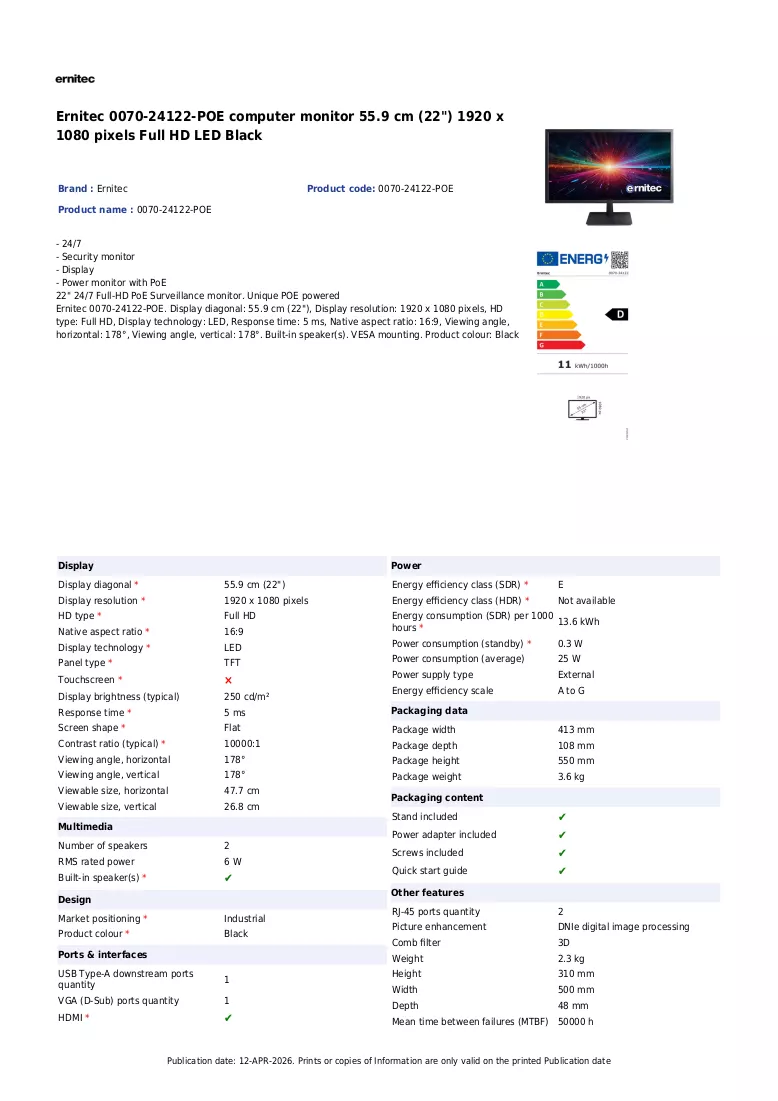

Key specifications

• Display diagonal: 22" (55.9 cm)
• Resolution: 1920 × 1080 (Full HD)
• Panel type: TFT LED
• Response time: 5 ms
• Viewing angle: 178°
• Brightness (typical): 250 cd/m²
• Contrast ratio (typical): 10000:1
• Built-in speaker(s): Yes
• PoE type: IEEE 802.3af/at/bt (supports up to 100 W via PoE source)
• VESA mounting: 100 × 100 mm
• Weight: 2.5 kg
• Colour: Black

How to use

Install the monitor using a VESA 100×100 mount or place it on a desktop. Connect an Ethernet cable from a compatible PoE switch, PoE injector or PoE-enabled NVR to the monitor to provide both data and power; no separate power supply is required when using PoE. Use the on-screen menu and controller to adjust brightness, contrast, input selection and other display settings. For multi-monitor setups, ensure network bandwidth and PoE power budget are sufficient for all connected devices.

Recommendations

For reliable 24/7 operation, use a PoE switch or injector that meets the IEEE 802.3af/at/bt standard and verify the total power budget for all connected PoE devices. If uninterrupted operation is required during power outages, integrate an appropriate UPS or backup power solution for the PoE source.
