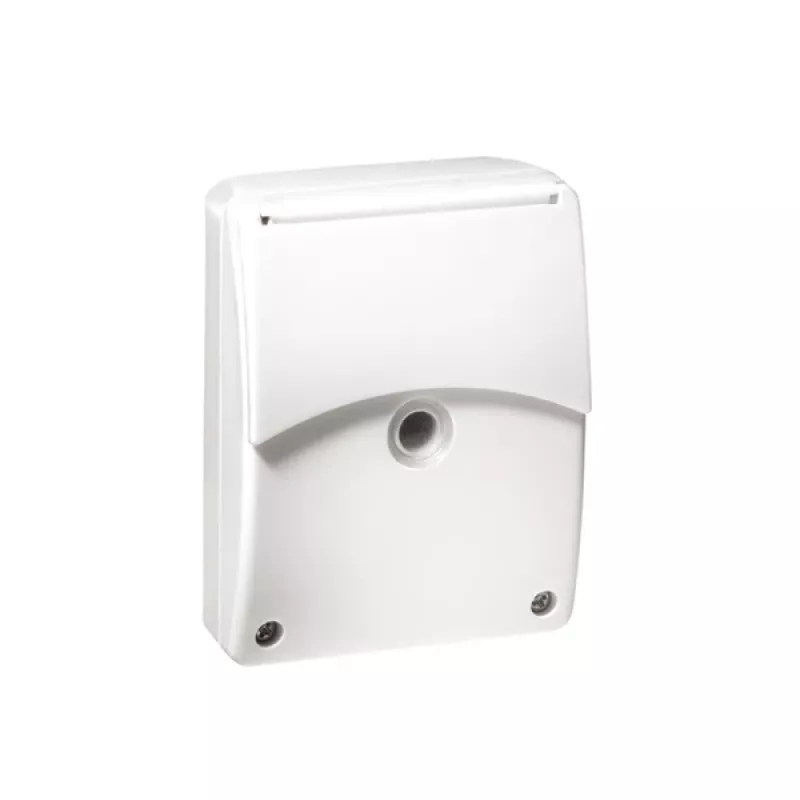

ESYLUX CDS-A/N kirkkausanturi valkoinen polykarbonaatti IP54

The ESYLUX CDS-A/N is a high-quality brightness sensor designed for automatic lighting control in indoor and covered outdoor areas. It reliably measures ambient light levels and provides a signal output for connection to a control unit, enabling energy-efficient lighting management. The sensor features a robust polycarbonate housing with IP54 protection, making it suitable for demanding environments. With a wide operating temperature range and low power consumption, it is an ideal choice for professional lighting installations.

Advantages

Energy-efficient operation with less than 0.5 W power consumption; reliable light measurement from 10 to 2000 Lux; robust IP54-rated housing for protection against dust and water splashes; easy surface mounting; suitable for both indoor and covered outdoor use.

Suitable for

• Automatic lighting control in offices, corridors, and stairwells
• Daylight-dependent switching in industrial and commercial buildings
• Covered outdoor areas such as entrances and canopies

Key specifications

• Sensor type: Brightness sensor
• Operating voltage: 230 V AC
• Light measurement range: 10 - 2000 Lux
• Protection class: II
• IP rating: IP54
• Operating temperature: -25 to +55 °C
• Housing material: Polycarbonate (PC)
• Colour: White
• Mounting type: Surface-mounted
• Power consumption: < 0.5 W
• Output type: Signal output for control unit
• Diameter: 80 mm
• Height: 40 mm

Recommendations

For optimal performance, pair the CDS-A/N with a compatible ESYLUX control unit. Ensure the sensor is mounted in a location with representative ambient light, avoiding direct artificial light sources. Suitable for use in covered outdoor areas where it is not exposed to direct rain or snow.
