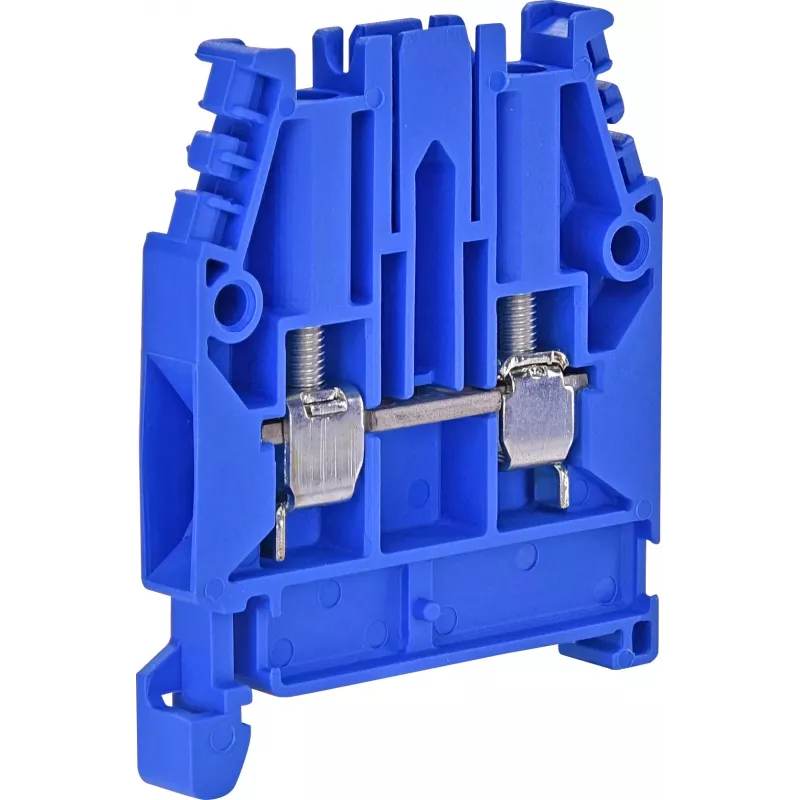

ETI ESC-CBC.4B nollajohdinliitin, yksitasoinen, 4 mm², 12 kV, sininen 003903045

In electrical distribution, neutral conductors need a reliable, clearly identifiable connection point that can withstand high impulse voltages. The ETI ESC-CBC.4B neutral terminal block provides a dedicated single-level connection for neutral wires up to 4 mm², with a blue housing for instant identification according to wiring conventions.

Who is it for

Electricians and panel builders who install DIN rail terminal blocks in control cabinets, distribution boards, or industrial enclosures. It suits applications where a separate neutral terminal is required for clarity and safety.

Main features

• Single-level neutral terminal block with screw clamp connection
• Rated cross-section up to 4 mm², accepts solid, stranded, and fine-stranded conductors with ferrule
• Blue polyamide housing for easy neutral identification
• Rated impulse withstand voltage 12 kV, suitable for high surge environments
• Mounts on standard 35 mm DIN rail

Specifications

• Product type: Neutral terminal block
• Series: ESC-CBC
• Function: Neutral (N)
• Number of levels: 1
• Rated cross-section: 4 mm²
• Connection method: Screw clamp
• Colour: Blue
• Rated voltage (IEC/EN): 800 V
• Rated impulse withstand voltage (Uimp): 12 kV
• Rated current (IEC/EN): 32 A
• Mounting type: DIN rail (35 mm)
• Number of connections per level: 2
• Housing material: Polyamide (PA)
• Conductor material: Copper alloy
• Operating temperature range: -40°C to +100°C
• Flammability rating: UL94 V-0
• Stripping length: 9-10 mm
• Tightening torque: 0.5 - 0.8 Nm
• Conductor type: Solid, stranded, fine-stranded with ferrule

Tips

Use a torque screwdriver set to 0.5–0.8 Nm to ensure a secure connection without damaging the conductor. For fine-stranded wires, always use ferrules to prevent strand breakage and maintain reliable contact.
