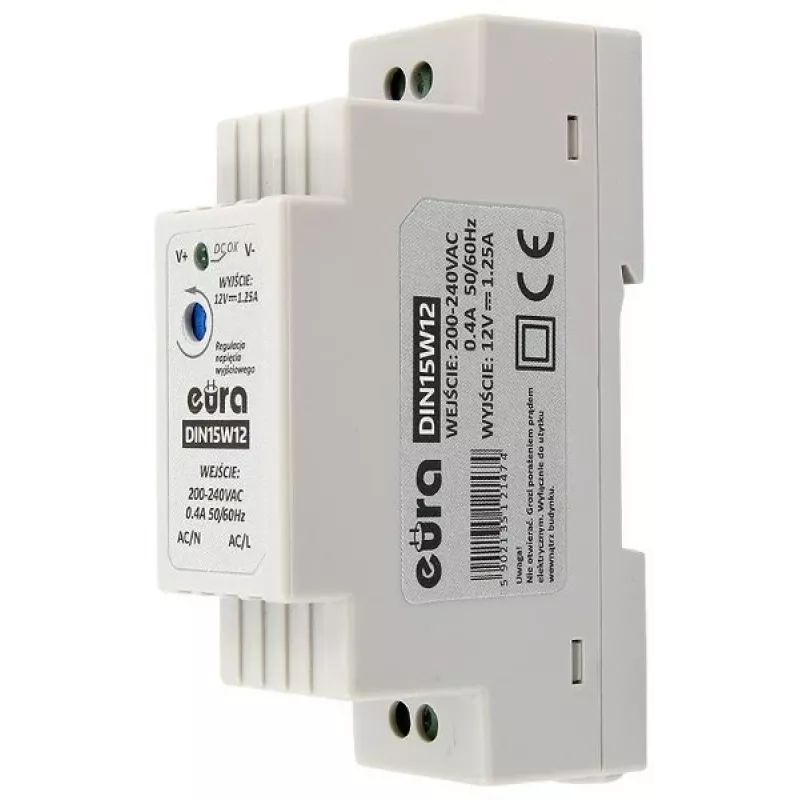

EURA DIN15W12 DIN-kiskovirtalähde 12V 1,25A 15W

The EURA DIN15W12 is a compact and reliable DIN rail power supply designed for industrial control systems, automation, and building management applications. It delivers a stable 12V DC output with a current rating of 1.25A, providing 15W of power. With a wide input voltage range of 90-264V AC and high efficiency over 80%, this power supply ensures consistent performance in demanding environments. Its rugged plastic enclosure and screw terminal connections make installation simple and secure.

Advantages

High efficiency reduces energy waste and heat generation. Built-in protection features (overload, short circuit, over voltage) safeguard connected equipment. Compact DIN rail design saves cabinet space. Wide input voltage range ensures global compatibility. Free air convection cooling eliminates the need for fans, enhancing reliability.

Suitable for

• Industrial automation systems
• Building management and HVAC controls
• Process control and instrumentation
• Security and access control systems
• LED lighting and signage

Key specifications

• Output voltage: 12V DC
• Output current: 1.25A
• Output power: 15W
• Input voltage: 90-264V AC
• Input frequency: 47-63Hz
• Mounting: DIN rail (TS-35/7.5 or TS-35/15)
• Efficiency: >80%
• Protection: Overload, short circuit, over voltage
• Operating temperature: -20°C to +50°C
• Cooling: Free air convection
• Ripple & noise: <100mVp-p
• Isolation voltage: 3000V AC (input to output)
• Number of outputs: 1
• Enclosure material: Plastic
• Certifications: CE, RoHS
• LED indicator: Power ON (green)
• Terminal type: Screw terminals

Recommendations

For optimal performance, ensure adequate ventilation around the power supply and do not exceed the rated load. Use appropriate wire gauges for screw terminals. This unit is ideal for powering sensors, controllers, and other low-power DC devices in industrial environments.
