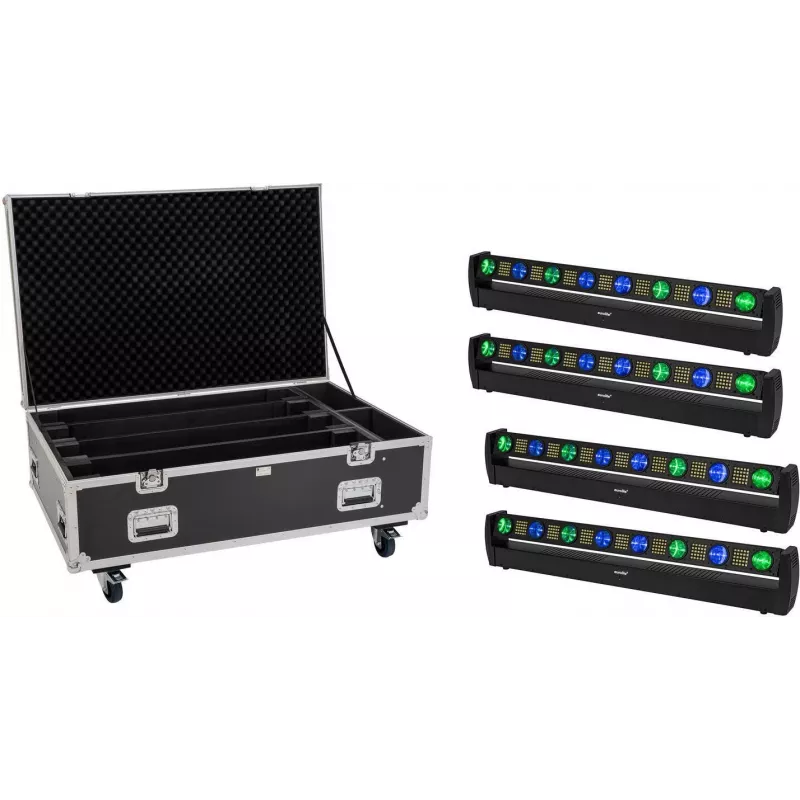

EUROLITE Set 4x LED BAR-8 SWING QCL -valopalkki flightcasella ja pyörillä

Four motorized RGBW LED bars with a 270° tilt, packed in a rolling flightcase — this EUROLITE set turns a single lighting position into a full wash and beam rig. The SWING mechanism sets it apart from static bars: each fixture pans continuously, so you can sweep the room, create alternating chases, or lock a precise angle from the console. The quad-colour LEDs mix rich colours without the multi-colour shadows of separate RGB fixtures, and the 15° optics keep the beam tight enough for mid-air effects. Everything arrives in a purpose-built case with wheels, ready to roll into the venue.

Highlights

• Four LED BAR-8 SWING QCL fixtures with 8 x 8 W quad-colour LEDs each
• Motorized 270° tilt per bar for dynamic sweeps and precise positioning
• RGBW colour mixing with a 15° beam angle for saturated washes and beams
• Multiple DMX modes (1, 4, 6, 8, 32, 34, 38 channels) plus stand-alone, sound-active, and master/slave operation
• Flightcase with four wheels (two lockable), butterfly locks, and recessed handles
• Power and DMX loop-through via P-Con and 3-pin XLR connectors

In daily use

The set is built for mobile DJs, bands, and rental companies that need fast setup and a big look. Link the bars with the included power and DMX cables, select a pre-programmed show or let the sound-active mode follow the beat, and the entire rig works without a console. For larger productions, patch each bar in a 34- or 38-channel mode to control every colour and tilt independently. The flicker-free 3.8 kHz refresh rate keeps the output clean on camera, and the metal housing stands up to regular transport. When the night is over, the bars drop into the flightcase — no cable spaghetti, no separate bags.

Full specifications

• Product type: LED bar lighting set with flightcase
• Number of bars: 4
• LED type per bar: 8 x 8 W quad-colour LEDs (RGBW)
• Beam angle: 15°
• Tilt range: 270° motorized
• Control modes: DMX512, stand-alone, sound-active, master/slave
• DMX channels: 1, 4, 6, 8, 32, 34, 38 selectable
• DMX connectors: 3-pin XLR in/out
• Power connectors: P-Con (Power Twist) in/out
• Power consumption per bar: 70 W
• Operating voltage: 100–240 V AC, 50/60 Hz
• Refresh rate: 3.8 kHz
• Dimmer: electronic, 0–100%
• Strobe: variable speed
• Housing material (bar): metal
• IP rating (bar): IP20 (indoor use)
• Flightcase material: laminated plywood
• Flightcase features: 4 wheels (2 lockable), butterfly locks, recessed handles, accessory compartments
• Included: 4 x LED BAR-8 SWING QCL, flightcase, power and DMX cables, quick start guide

Final note

A complete, road-ready lighting system: four moving-head-style LED bars and a wheeled flightcase that protects them between gigs. The 270° tilt and quad-colour LEDs give you the flexibility of larger fixtures in a compact, easy-to-transport package.
