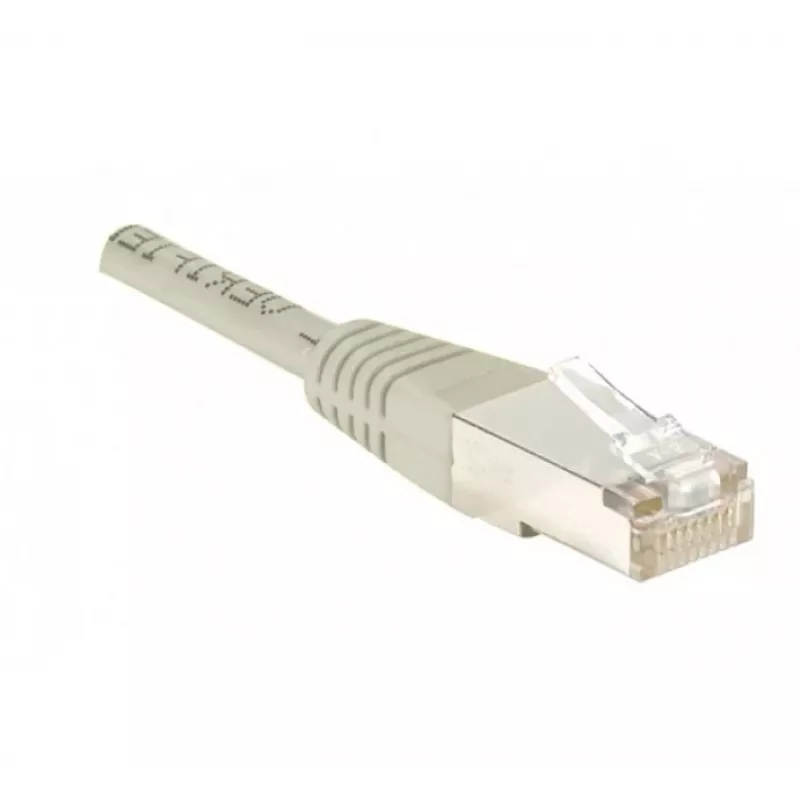

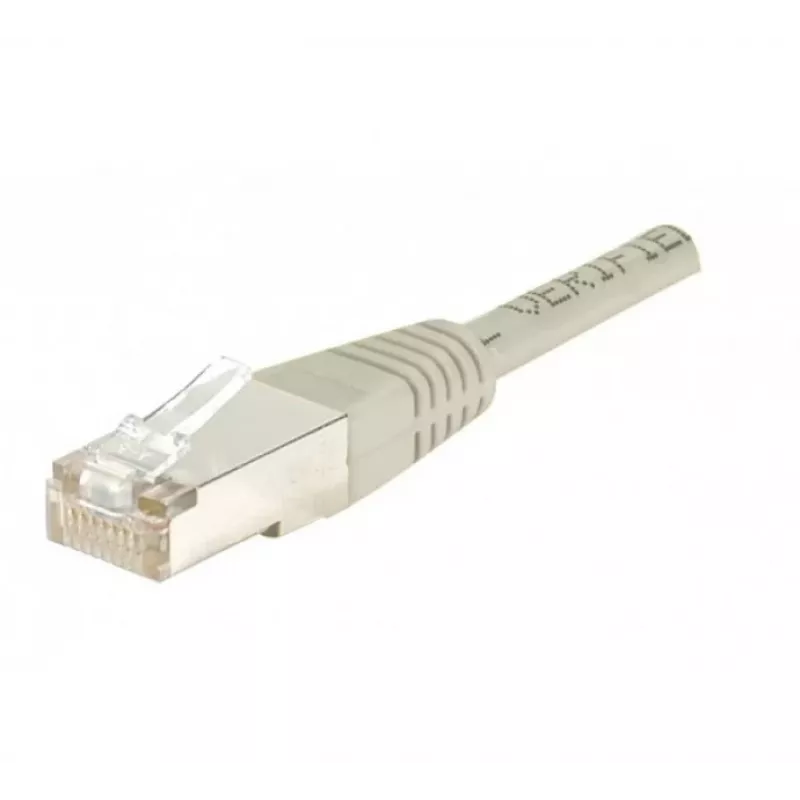

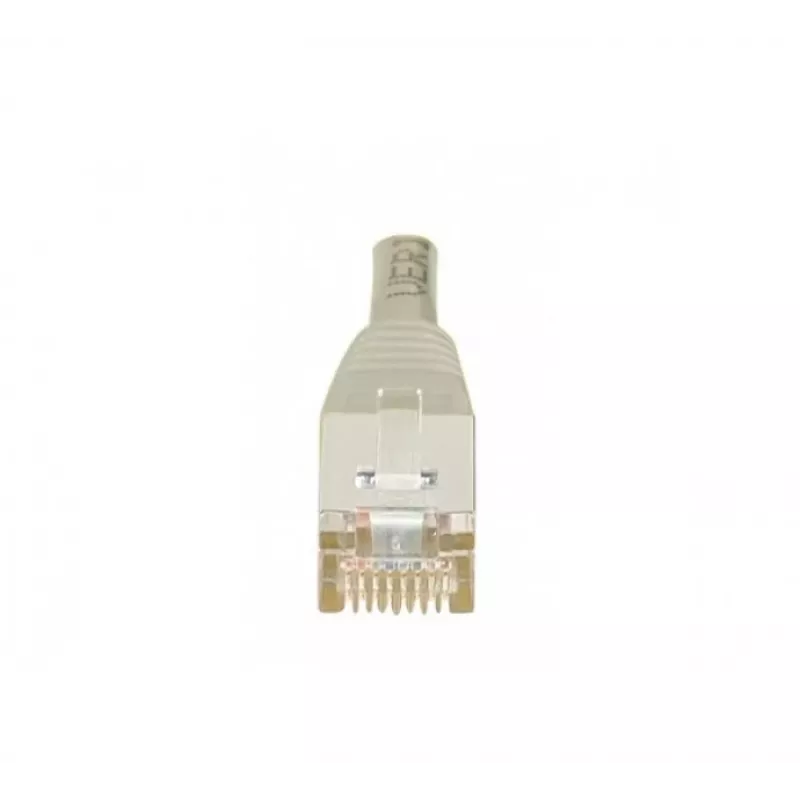

EXERTIS CONNECT Cat5e F/UTP -verkkokaapeli, harmaa, 0,15 m, Slim Snagless Boot 857800

Short patch cables with standard boots often fail in tight spaces—the boot is too bulky, the cable bends sharply, and the connector latch snaps. This 0.15 m Cat5e patch cable solves that with a particularly slim bend protection boot that fits into dense patch panels and keeps the bend radius gentle.

Who is it for

Network technicians and IT staff who need a very short, reliable link between patch panel and switch, or between devices in cramped cabinets. It is also useful for temporary connections in test setups.

Main features

• Cat5e performance: supports Gigabit Ethernet up to 100 MHz.
• F/UTP shielding: foil around all pairs reduces external interference.
• Extra-slim snagless boot: protects the latch and allows easy insertion in high-density ports.
• Grey PVC jacket: durable and easy to identify in cable management.
• Gold-plated contacts: resist corrosion for consistent connectivity.

Specifications

• Cable length: 0.15 m
• Cable standard: Cat5e
• Shielding: F/UTP
• Connector A: RJ45 male
• Connector B: RJ45 male
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: PVC
• Wiring scheme: TIA/EIA 568B
• Max bandwidth: 100 MHz
• Max data rate: 1 Gbps
• Operating temperature: -20°C to 60°C

Tips

For best performance, avoid bundling this cable with power cables. The slim boot allows adjacent port access, but always depress the latch fully before removal to prevent damage.
