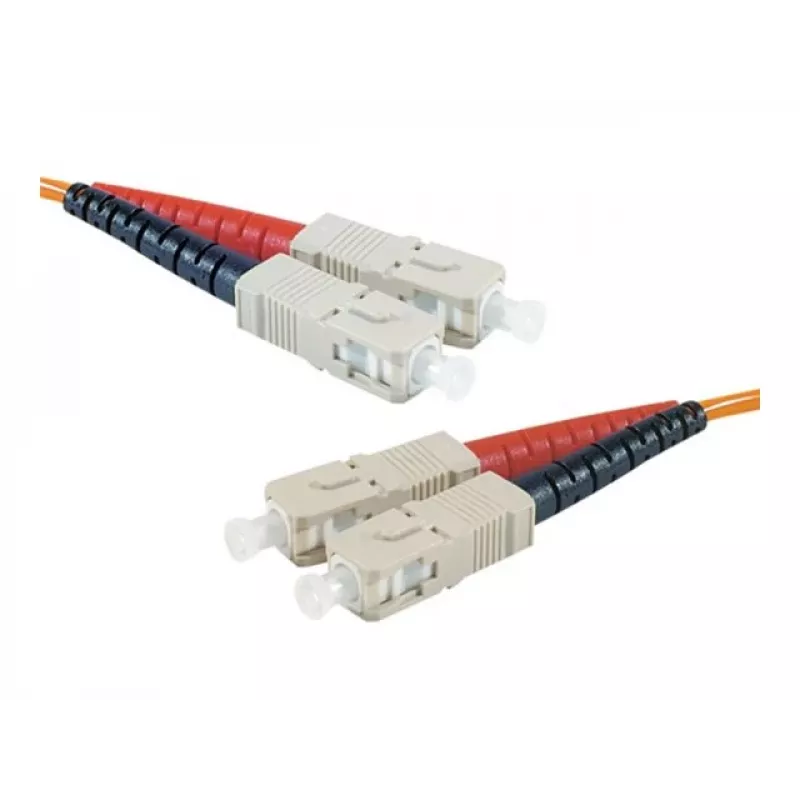

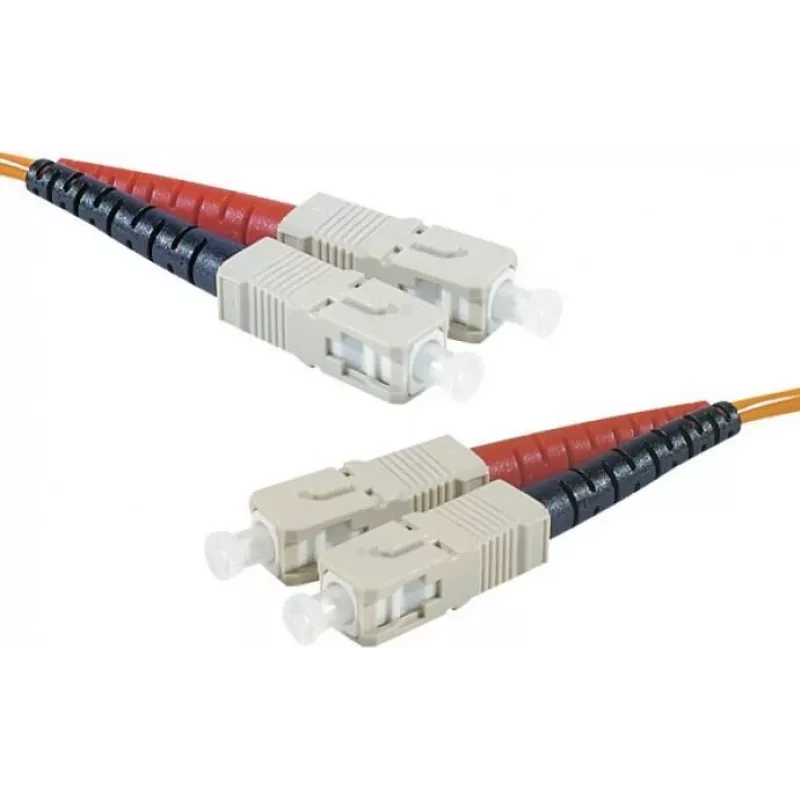

EXERTIS CONNECT OM2 SC Duplex kuitu-patchkaapeli, 50/125 µm, LSZH, oranssi, 5 m 392694

Connect network devices in data centres or enterprise LANs with this 5 m multimode fibre patch cable. It features SC duplex connectors on both ends with UPC polish, OM2 50/125 µm fibre, and an orange LSZH jacket.

Key specifications

• Fibre type: OM2 multimode 50/125 µm
• Connectors: SC duplex to SC duplex, UPC polish
• Length: 5 m
• Jacket: LSZH, orange
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Attenuation: 2.8 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Standards: IEC 60794-2, TIA/EIA-568-C.3

Why choose it

Supports 10 Gigabit Ethernet up to 82 m and 1 Gigabit Ethernet up to 550 m, making it suitable for high-speed backbone connections. The LSZH jacket reduces toxic smoke in case of fire, and the orange colour identifies OM2 fibre.

Ideal use cases

• Data centre interconnects
• Enterprise LAN backbone links
• SAN and FTTx applications

Good to know

Duplex construction provides two fibres for bidirectional communication. UPC polish ensures low back reflection.
