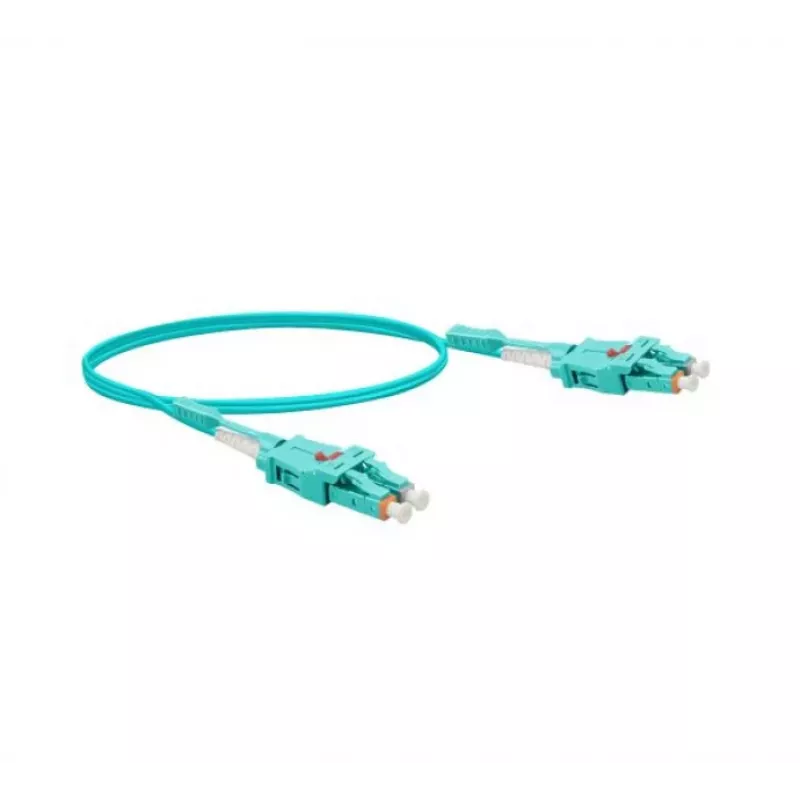

EXERTIS CONNECT Uniboot kuitu-patchkaapeli, OM3, LC Duplex - LC Duplex, UPC, aqua, 2 m 392942

This uniboot fibre patch cable simplifies high-density patching by combining both fibres in a single, compact connector body. The LC Duplex to LC Duplex design with UPC polish delivers reliable performance for OM3 multimode networks.

Highlights

• Uniboot connector reduces cable bulk and improves airflow in racks
• OM3 fibre supports 10G Ethernet up to 300 m at 850 nm
• LSZH jacket emits low smoke and zero halogen for safer installations
• Aqua colour coding conforms to TIA/EIA-568-C.3 standards

In daily use

Ideal for data centres, LAN backbones, and SAN links, this 2-metre patch cable offers low insertion loss and high return loss. The uniboot design allows easy polarity reversal without special tools, saving time during moves and changes.

Full specifications

• Fibre type: Multimode OM3, 50/125 µm
• Connectors: LC Duplex to LC Duplex, UPC polish
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Jacket material: LSZH
• Standards compliance: RoHS, REACH, TIA/EIA-568-C.3, IEC 61754-20

Final note

Engineered for reliability in high-density fibre environments, this cable meets stringent industry standards for performance and safety.
