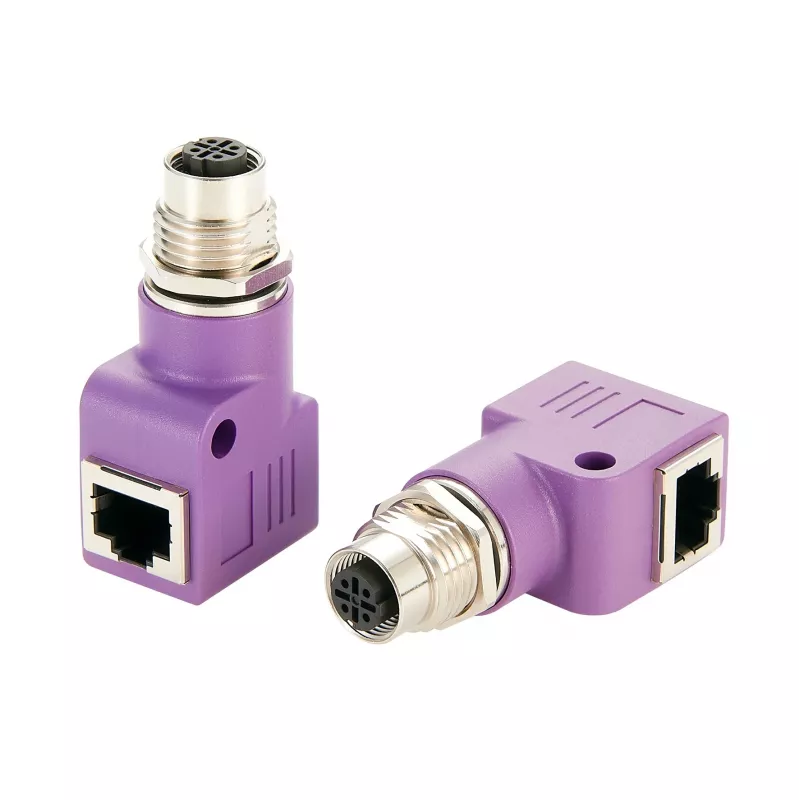

EXSYS EX-49523 M12 D-koodi 4-pin liitin - RJ45 liitin 90° teollisuus-Ethernet-sovitin

Industrial Ethernet connections often fail when standard RJ45 ports face dust, moisture, or vibration. The EXSYS EX-49523 adapter bridges M12 D-coded field cabling to RJ45 equipment, providing a right-angle connection that fits tight spaces and maintains signal integrity in harsh environments.

Who is it for

Automation engineers, machine builders, and field technicians who need a reliable, compact link between industrial sensors, actuators, or Ethernet devices and standard RJ45 infrastructure. Ideal for factory floors, outdoor cabinets, and transportation systems.

Main features

• M12 D-code 4-pin female to RJ45 female, 90° angled adapter
• Supports 10/100 Mbps Fast Ethernet for industrial protocols
• Fully shielded zinc die-cast housing, nickel-plated for corrosion resistance
• Gold-plated brass contacts ensure low contact resistance and long life
• IP67 protection when mated, suitable for washdown and dusty areas
• Operating temperature range -25°C to +85°C
• Rated voltage 30 V, current 4 A
• Complies with IEC 61076-2-101 for M12 connectors

Specifications

• Connector 1: M12 D-code, female, 4-pin
• Connector 2: RJ45, female
• Adapter angle: 90° (right-angle)
• Data transfer rate: 10/100 Mbps
• IP rating: IP67 (when mated)
• Housing material: Zinc die-cast, nickel-plated
• Contact material: Gold-plated brass
• Shielding: Fully shielded
• Operating temperature: -25°C to +85°C
• Rated voltage: 30 V
• Rated current: 4 A
• Application: Industrial Ethernet, Fieldbus systems
• Mounting type: Inline adapter
• Standard compliance: IEC 61076-2-101

Tips

Pair with pre-terminated M12 D-code cables for a complete rugged link. Ensure mating connectors are tightened to the recommended torque to maintain the IP67 seal.
