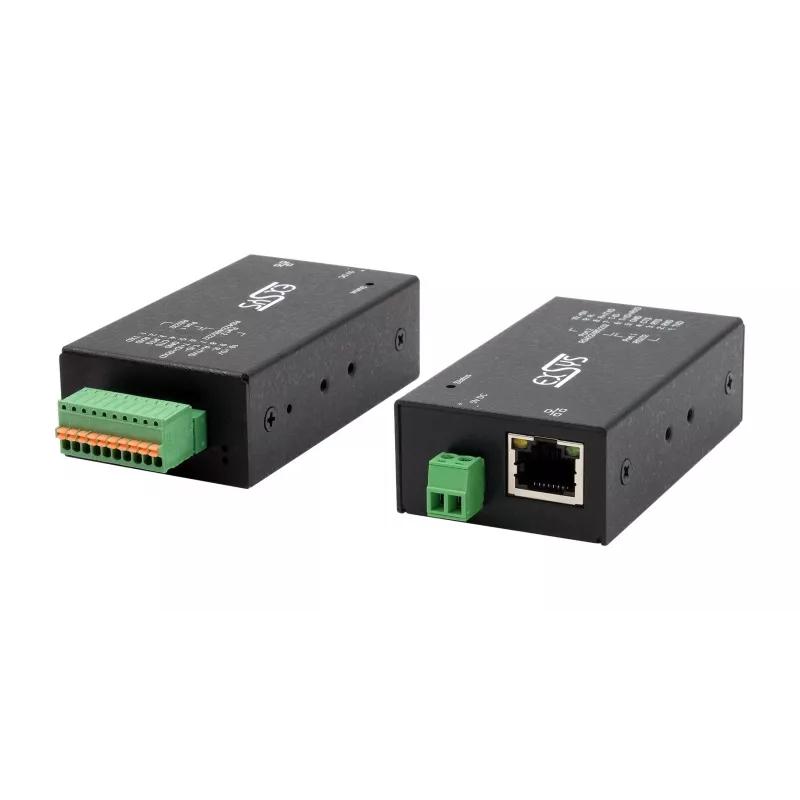

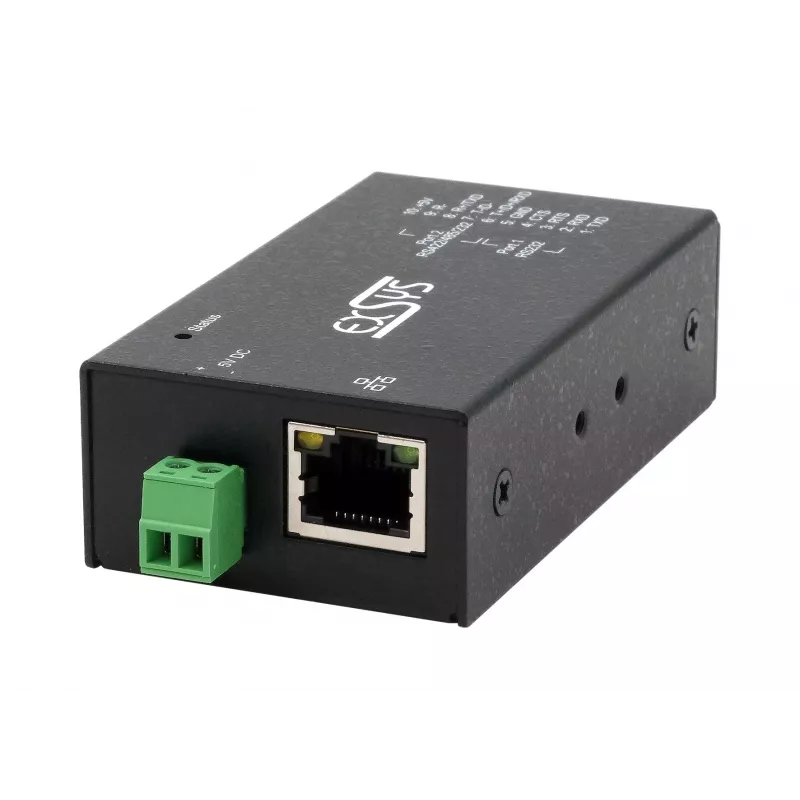

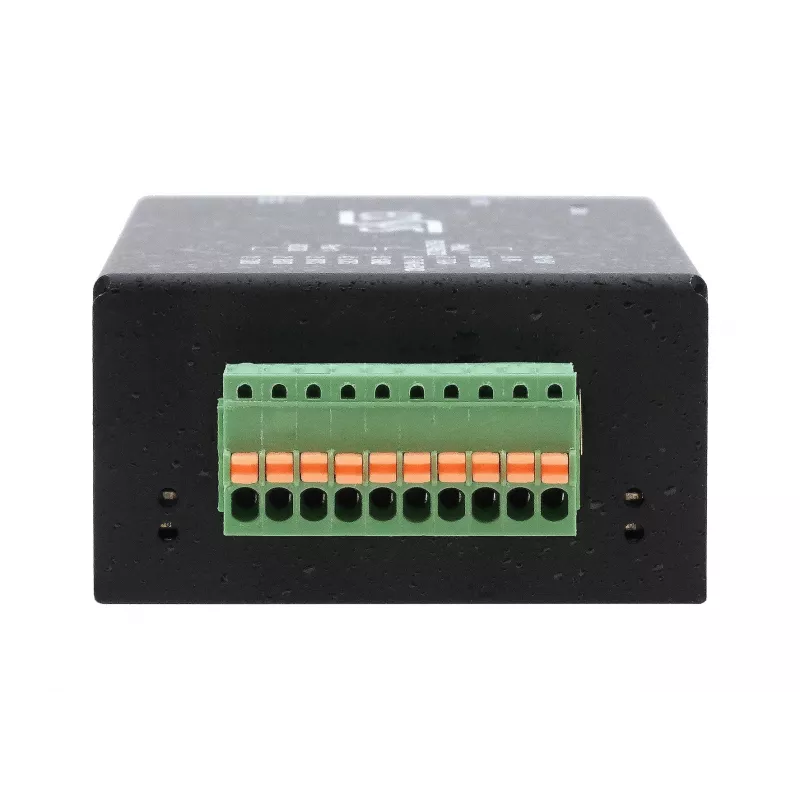

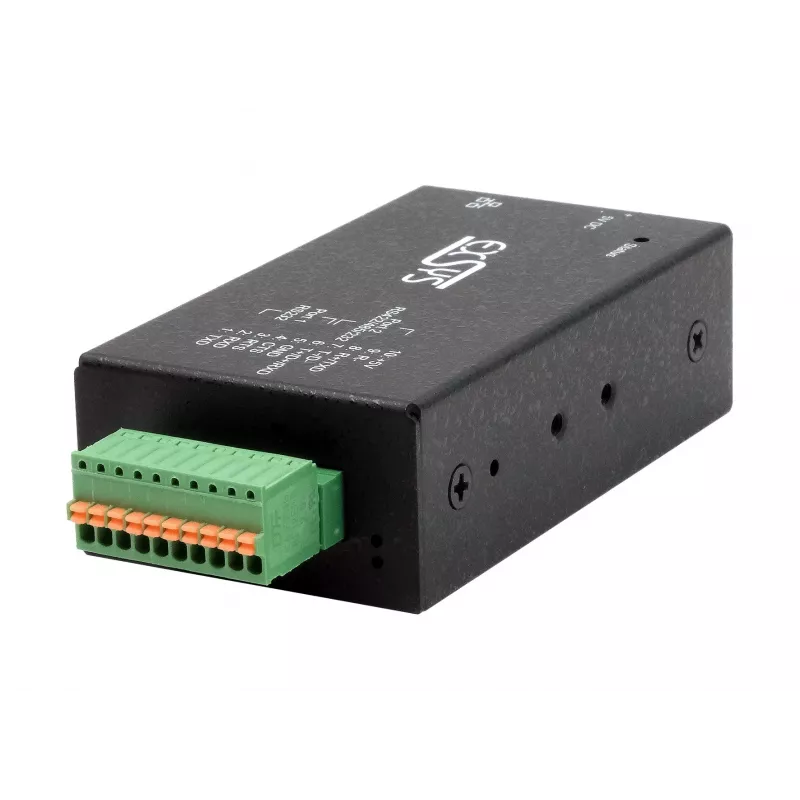

EXSYS EX-6131-2 teollinen Ethernet-sarjaporttipalvelin, RS-232/422/485, DIN-kisko- ja seinäasennus

The EX-6131-2 stands out by combining two serial interfaces—one RS-232 and one software-selectable RS-422/485—in a rugged metal housing that operates from -40°C to 85°C. It converts Ethernet to serial for industrial automation, with built-in surge protection and flexible mounting options.

Highlights

• Dual serial ports: 1x RS-232 (DB9 male) and 1x RS-422/485 (5-pin terminal block)
• 10/100 Mbps Ethernet with Auto-MDI/MDIX
• Wide power input range: 9-48V DC
• Supports TCP Server, TCP Client, UDP, and Virtual COM modes
• 15KV ESD surge protection on serial ports
• DIN-rail and wall mount kits included

In daily use

Connect legacy serial devices to modern networks. Configure via web browser or Windows utility. LEDs indicate power, link/activity, and TX/RX per port. The metal housing withstands harsh environments.

Full specifications

• Ethernet: 1x RJ45, 10/100 Mbps, Auto-MDI/MDIX
• Serial: RS-232 (DB9 male), RS-422/485 (5-pin terminal block)
• Baud rate: 300 bps to 921.6 Kbps
• Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
• Flow control: RTS/CTS, XON/XOFF, None
• Protocols: TCP, UDP, IP, ICMP, ARP, HTTP, DHCP, DNS, Modbus TCP/RTU
• Operating modes: Virtual COM, TCP Server, TCP Client, UDP, Pair Connection
• Power: 9-48V DC terminal block, max 2W
• Operating temperature: -40°C to 85°C
• Housing: Aluminium
• Mounting: DIN-rail, wall mount
• LED indicators: Power, Link/Activity, TX/RX per port
• Configuration: Web-based, Windows utility
• Surge protection: 15KV ESD for serial ports

Final note

The EX-6131-2 is built for demanding industrial environments where reliable serial-to-Ethernet connectivity is critical.
