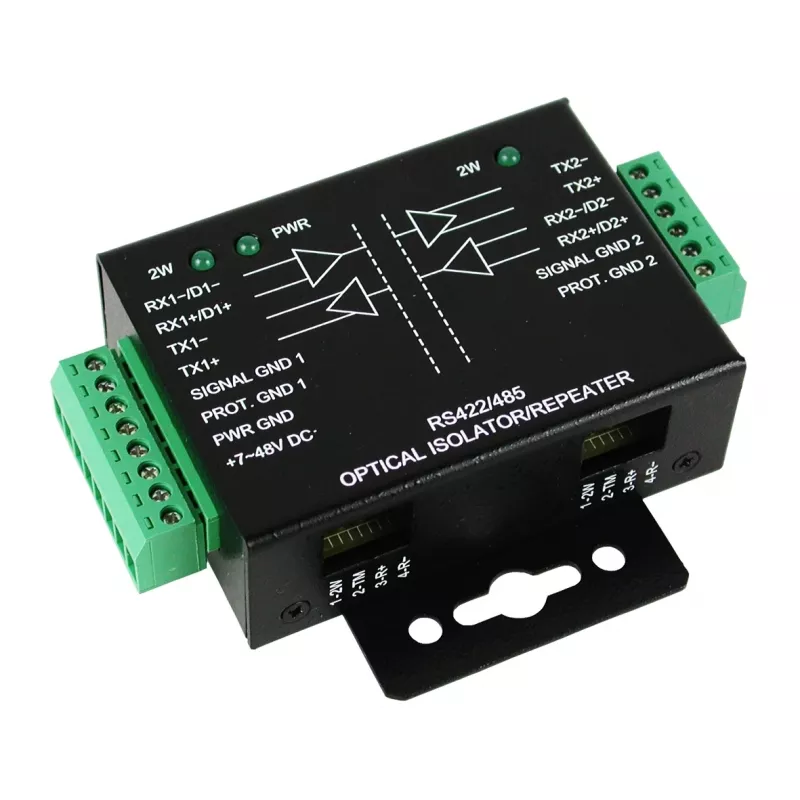

EXSYS RS-485 erotin/toistin EX-47800IS

In industrial automation environments where RS-485 networks span long distances or connect equipment with different ground potentials, the EXSYS EX-47800IS provides optical isolation and signal regeneration to prevent data corruption and equipment damage. It supports both 2-wire half-duplex and 4-wire full-duplex RS-485 operation with automatic data direction control, eliminating the need for software handshaking.

Key specifications

• Optical isolation: 2500 V RMS
• Data rate: up to 115.2 Kbps
• Supports 2-wire (half-duplex) and 4-wire (full-duplex) RS-485
• Automatic data direction control (ADDC)
• ESD protection: 15 KV
• Surge protection: 600 W
• Transmission distance: up to 1.2 km
• Input voltage: 9-48 V DC
• Power consumption: < 1 W
• Mounting: DIN rail or wall
• Operating temperature: -20°C to 70°C
• LED indicators: Power, Tx, Rx

Why choose it

This isolator/repeater extends RS-485 networks beyond the standard 32-node limit and protects against ground loops and transient surges. Its wide input voltage range and low power consumption make it suitable for diverse industrial power systems.

Ideal use cases

• Connecting RS-485 devices in electrically noisy environments
• Extending RS-485 bus length in factory automation
• Isolating segments in building automation systems
• Protecting equipment from ground potential differences

Good to know

The unit features screw terminal blocks for secure wiring and an ABS plastic housing for durability. It operates in humidity from 5% to 95% RH (non-condensing).
