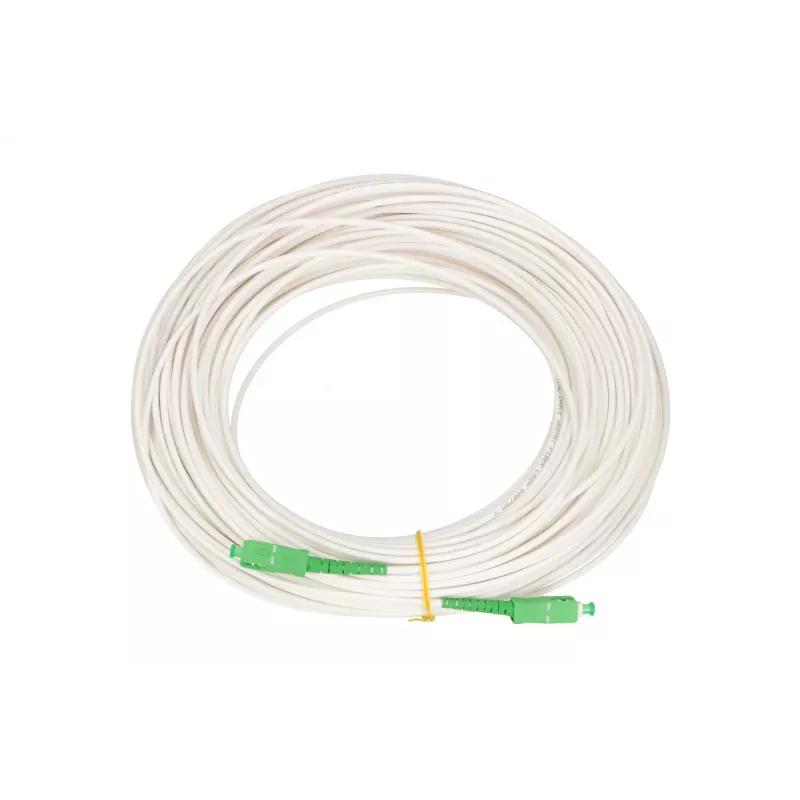

Extralink SC/APC-SC/APC -kuitukaapeli, LSOH, yksimuotokuitu, simplex, G.657A2, 3 mm, 30 m, valkoinen

The Extralink SC/APC-SC/APC patch cord is a high-quality single-mode fiber optic cable designed for reliable and efficient data transmission. With a length of 30 meters and a 3 mm diameter, this simplex cable features bend-insensitive G.657A2 fiber and LSOH (Low Smoke Zero Halogen) jacket, ensuring safety and performance in various environments.

Advantages

This patch cord offers low insertion loss (≤0.3 dB) and high return loss (≥60 dB), ensuring excellent signal integrity. The APC polish minimizes back reflection, making it ideal for high-precision applications. The LSOH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• FTTH (Fiber to the Home) networks
• Data centers and server rooms
• Telecommunications infrastructure
• CATV and broadband systems

Key specifications

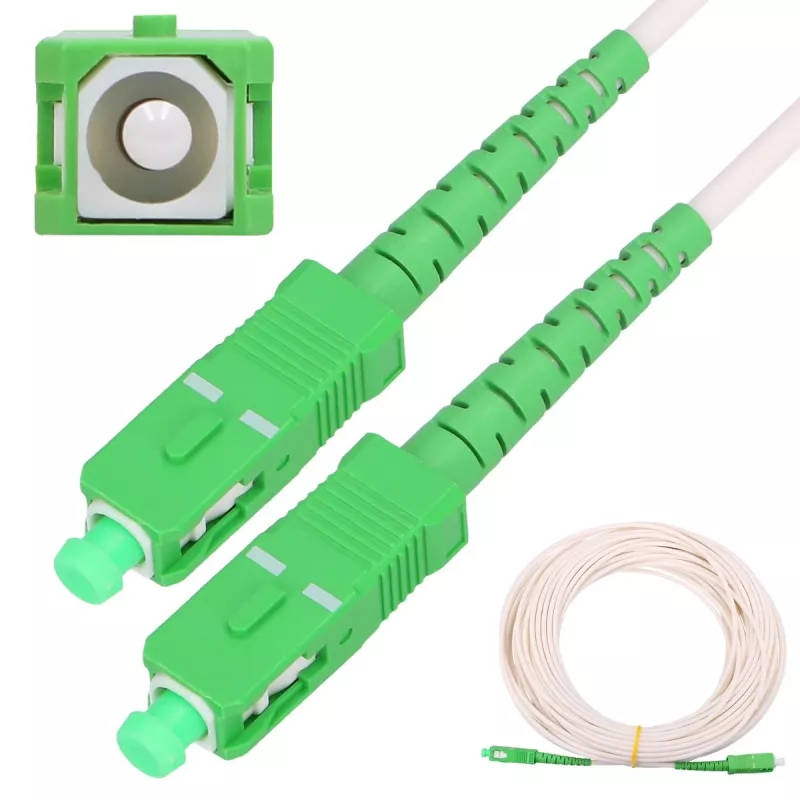

• Connector Type: SC/APC to SC/APC
• Fiber Mode: Single Mode
• Fiber Type: G.657A2 (Bend-Insensitive)
• Cable Configuration: Simplex
• Cable Diameter: 3 mm
• Cable Length: 30 m
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Jacket Color: White
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC (Angled Physical Contact)
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Operating Wavelengths: 1310nm / 1550nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability: > 1000 Mating Cycles
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid excessive bending beyond the bend radius.
