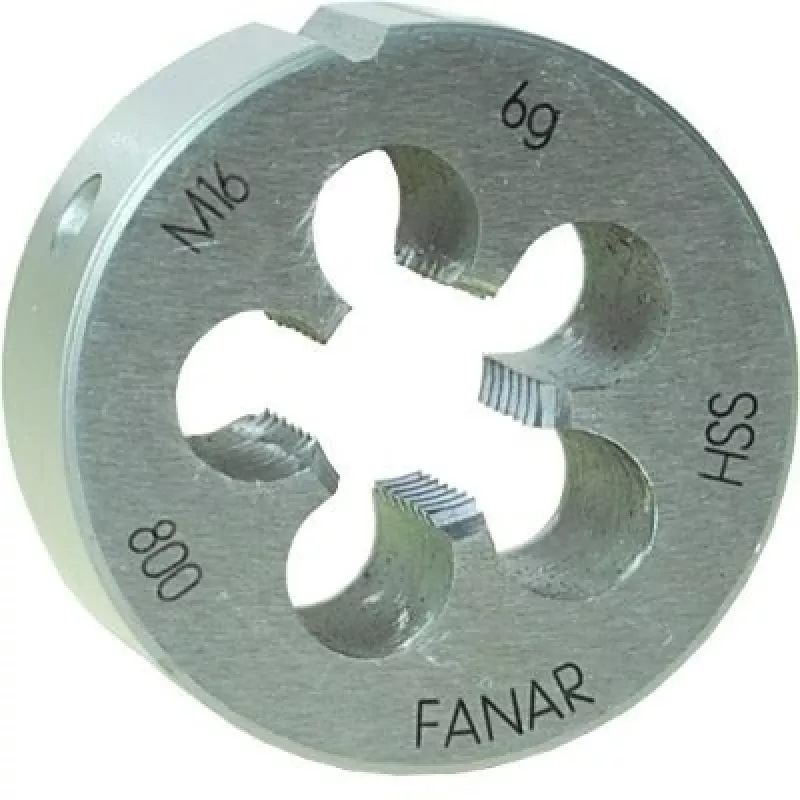

FANAR kierteitysleuka M16 x 2.00 HSS800 DIN 22568

This round threading die cuts precise M16 metric coarse threads with a 2.00 mm pitch, delivering clean external threads on steel, stainless steel, and other machinable metals. The HSS800 high-speed steel body holds its edge under demanding manual or machine threading, while the DIN 22568 geometry ensures a secure fit in standard die stocks.

Advantages

Bright, uncoated HSS800 tool steel offers excellent wear resistance and easy resharpening. The 60° thread profile with 6g tolerance class produces threads that mate smoothly with standard metric nuts and tapped holes. Right-hand cutting direction suits conventional clockwise threading operations.

Suitable for

• Creating or repairing M16 x 2.00 external threads on bolts, studs, and shafts
• Maintenance, repair, and prototyping in workshops and manufacturing
• Use with manual die stocks, die holders, or threading machines that accept 38 mm round dies

Key specifications

• Thread size: M16 x 2.00 (metric coarse, right-hand)
• Material: HSS800 high-speed steel, bright finish
• Outer diameter: 38 mm; thickness: 10 mm
• Standard: DIN 22568
• Tolerance class: 6g

Recommendations

Pair with a quality cutting fluid and a rigid die stock for best thread finish and tool life. For through-hole threading, chamfer the workpiece end before starting the die.
