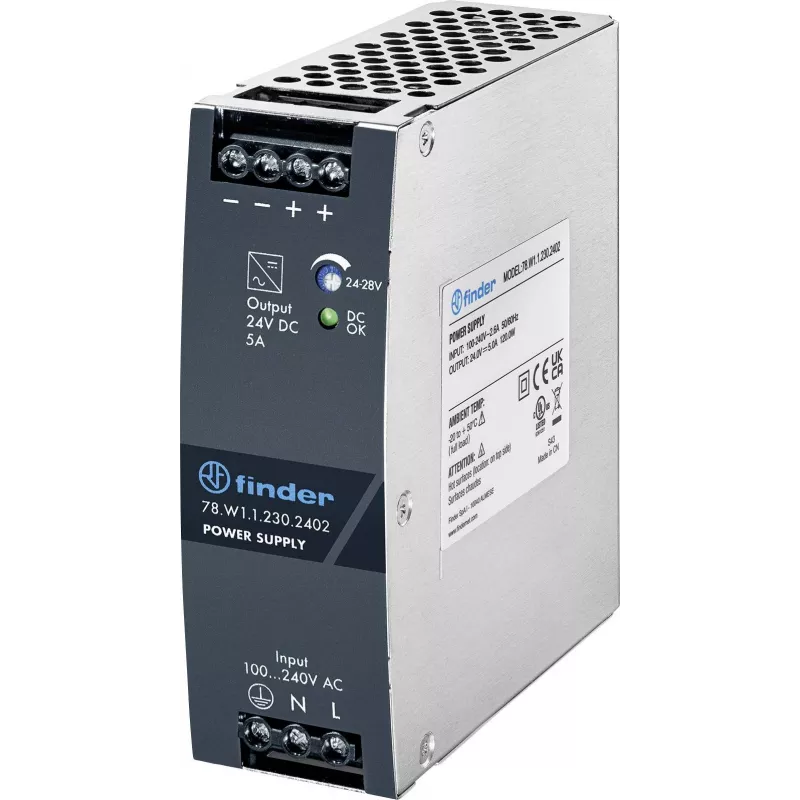

Finder 78.W1.1.230.2402 DIN-kisko virtalähde 24V DC 5A 120W 1 lähtö

Industrial control panels and automation systems need a reliable DC power source that fits directly onto a DIN rail. The Finder 78.W1.1.230.2402 switching power supply delivers a regulated 24 V DC output with 5 A current and 120 W power, making it suitable for powering PLCs, relays, sensors, and other 24 V devices. Its wide input range accepts 100–240 V AC, so it can be used in different mains environments.

Who is it for

Panel builders, machine integrators, and maintenance technicians looking for a compact, DIN-rail mountable power supply with a single output. It is a practical choice for new installations or as a spare for existing Finder 78 series setups.

Main features

• Output: 24 V DC, 5 A, 120 W
• Input: 100–240 V AC, 50/60 Hz
• Single output
• DIN rail mounting
• Efficiency up to 90%
• Protection against short circuit, overload, overvoltage, and overtemperature
• Operating temperature range: -20 to +70 °C
• Ripple and noise: <100 mVpp
• Insulation voltage input-output: 3 kV AC
• Housing: self-extinguishing plastic

Specifications

• Input voltage range: 100–240 V AC
• Output voltage: 24 V DC
• Output current: 5 A
• Output power: 120 W
• Number of outputs: 1
• Mounting type: DIN rail
• Efficiency: up to 90%
• Protection features: short circuit, overload, overvoltage, overtemperature
• Operating temperature range: -20 to +70 °C
• Input frequency: 50/60 Hz
• Ripple and noise: <100 mVpp
• Insulation voltage (input-output): 3 kV AC
• Housing material: self-extinguishing plastic

Tips

Ensure adequate ventilation around the unit to maintain performance within the specified temperature range. Verify that the total load does not exceed 120 W to avoid triggering the overload protection.
