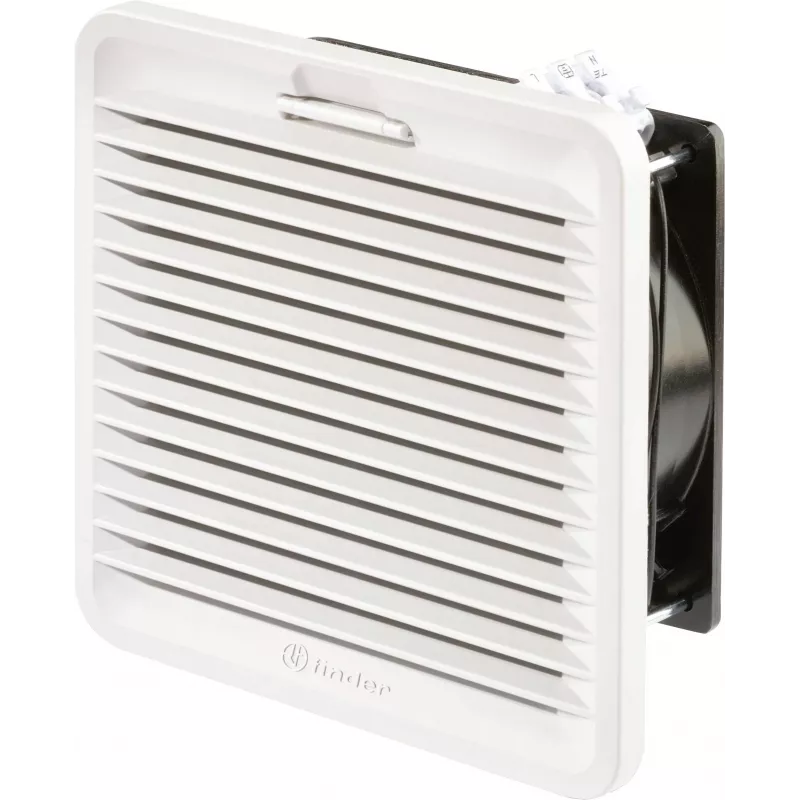

Finder 7F.20.9.024.4250 suodatintuuletinyksikkö 45 W 24 V DC 209 x 209 x 90,2 mm

Electrical enclosures trap heat, and heat shortens the life of the components inside. This filter fan unit moves 230 m³/h of air to keep the temperature down and the enclosure clean.

Who is it for

Panel builders and maintenance teams who need a reliable, snap-in cooling solution for 24 V DC control cabinets and enclosures.

Main features

• Axial fan with ball bearings for long service life
• G3 filter class reduces dust ingress
• IP54 protection rating when installed
• Snap-in mounting for quick installation
• Light grey ABS housing (RAL 7035)

Specifications

• Supply voltage: 24 V DC
• Power consumption: 45 W
• Rated current: 1.8 A
• Airflow: 230 m³/h
• Noise level: 60 dB(A)
• Operating temperature: -15 to +55 °C
• Cut-out dimensions: 176 x 176 mm
• Dimensions: 209 x 209 x 90.2 mm
• Housing material: ABS plastic
• Connection: screw terminals
• Life expectancy: 50,000 hours (L10 at 40 °C)

Tips

For best performance, replace the filter mat regularly based on the operating environment. Ensure the cut-out is clean and free of burrs before snapping the unit into place.
