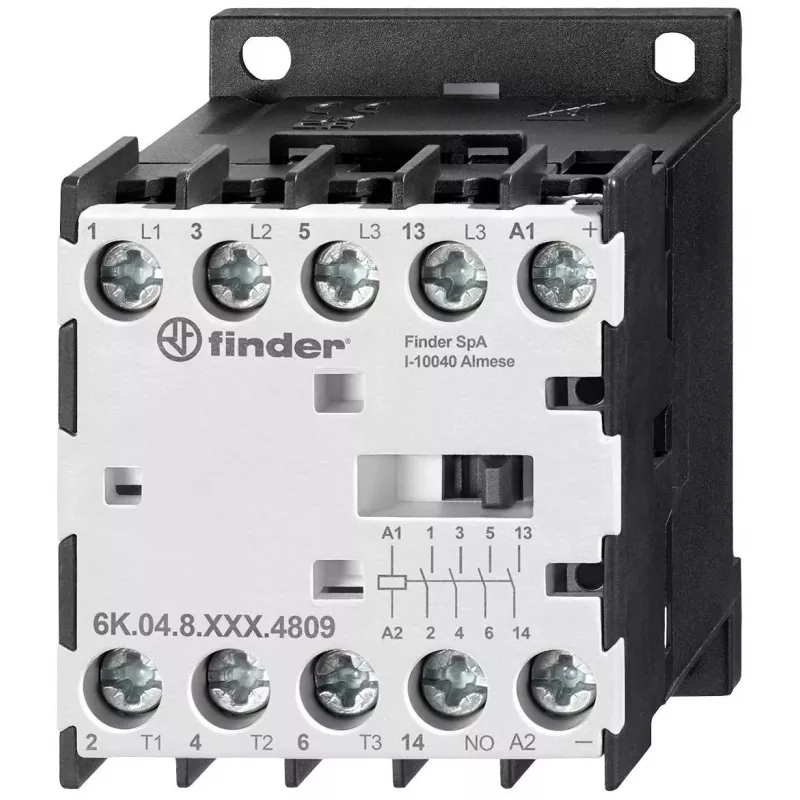

Finder mini teollisuuskontaktori 4kW käämi 24V DC (6K.04.9.024.4709)

The Finder Mini Industrial Contactor 6K.04.9.024.4709 stands out with its compact 4-pole design and 24 V DC coil, delivering reliable switching for motors up to 4 kW in industrial control systems. Its AgNi contacts ensure long electrical life, while the IP20 housing suits panel mounting on DIN rail or screws.

Highlights

• 4-pole normally open contact configuration
• Rated operational current 20 A (AC-1) and 9 A (AC-3) at 400 V
• Coil voltage 24 V DC with low 1.5 W consumption
• High mechanical durability of 10 million cycles
• Compact dimensions for space-saving installation

In daily use

Designed for switching motors and resistive loads, this contactor handles frequent operations up to 3000 cycles per hour. The screw terminals provide secure wiring, and the wide operating temperature range from -25 to +70 °C allows use in demanding environments.

Full specifications

• Number of poles: 4
• Contact configuration: 4 NO
• Rated operational current AC-1: 20 A (400 V)
• Rated operational current AC-3: 9 A (400 V)
• Rated power AC-3: 4 kW (400 V)
• Rated insulation voltage Ui: 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Coil voltage: 24 V DC
• Coil power consumption: 1.5 W
• Mechanical durability: 10,000,000 cycles
• Electrical durability AC-3: 1,000,000 cycles
• Max switching frequency: 3000 cycles/hour
• Operating temperature: -25 to +70 °C
• Mounting: 35mm DIN rail or screw
• Protection degree: IP20
• Terminal type: Screw terminals
• Standards: IEC/EN 60947-4-1
• Contact material: AgNi

Final note

A robust choice for industrial automation, offering precise control and long service life.
