Fischer 522835 FPX M10 I K NV kevytbetoniankkuri-sarja

The Fischer FPX M10 I K NV sets itself apart from generic anchors through its form-fit expansion principle, which creates a secure hold in aerated concrete without relying on friction alone. This internal thread anchor is engineered for tensile and shear loads in AAC blocks of strength classes P2 to P6, making it a dependable choice for suspended ceilings, pipe clamps, cable trays, and consoles.

Highlights

• Form-fit expansion for reliable anchoring in aerated concrete
• Electro-galvanized steel for corrosion protection
• Pre-positioned installation with included setting tool
• ETA-approved (ETA-12/0172) for verified performance

In daily use

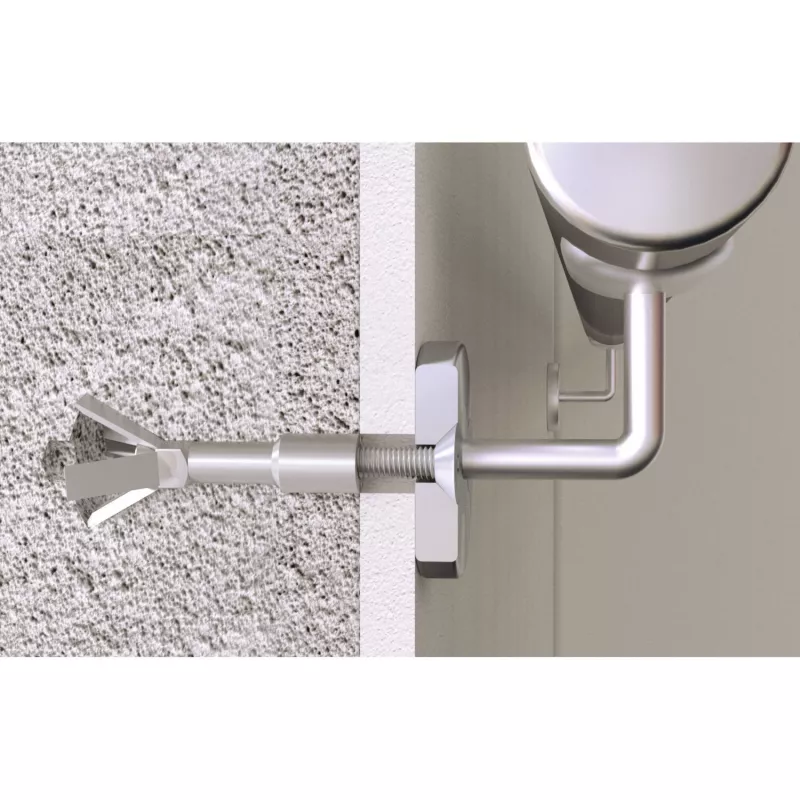

Installation is straightforward: drill a 12 mm hole to a depth of at least 60 mm, insert the anchor, and drive it in with the setting tool. The M10 internal thread accepts standard metric bolts, allowing for easy attachment of fixtures. The anchor's design ensures that the expansion is controlled and consistent, reducing the risk of cracking the substrate.

Full specifications

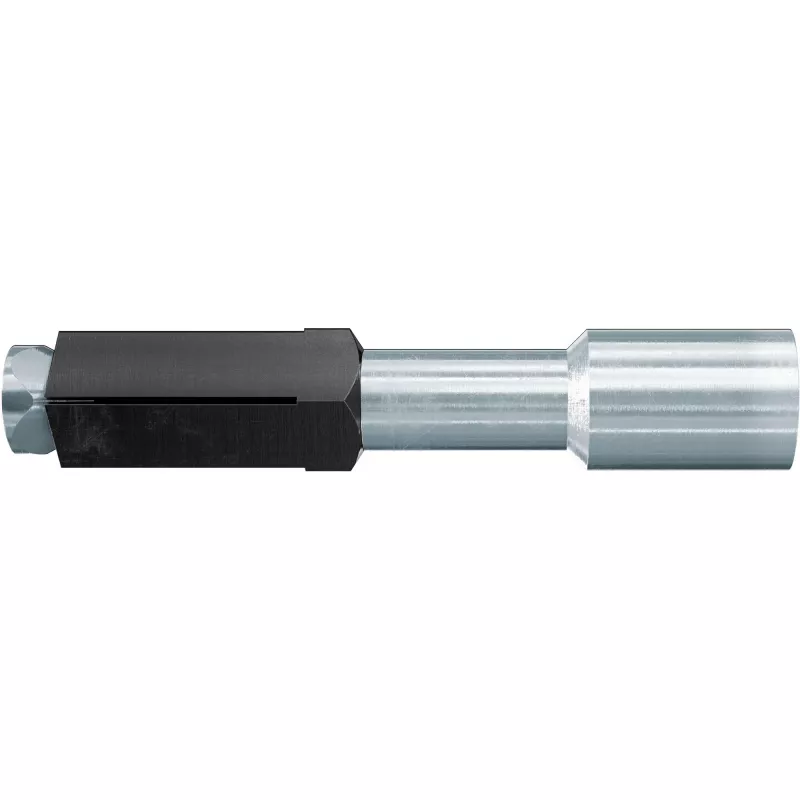

• Anchor type: Internal thread anchor
• Substrate: Aerated concrete (AAC) P2, P4, P5, P6
• Thread size: M10
• Drill hole diameter: 12 mm
• Anchor length: 60 mm
• Minimum drill hole depth: 60 mm
• Minimum component thickness: 100 mm
• Material: Electro-galvanized steel
• Installation type: Pre-positioned

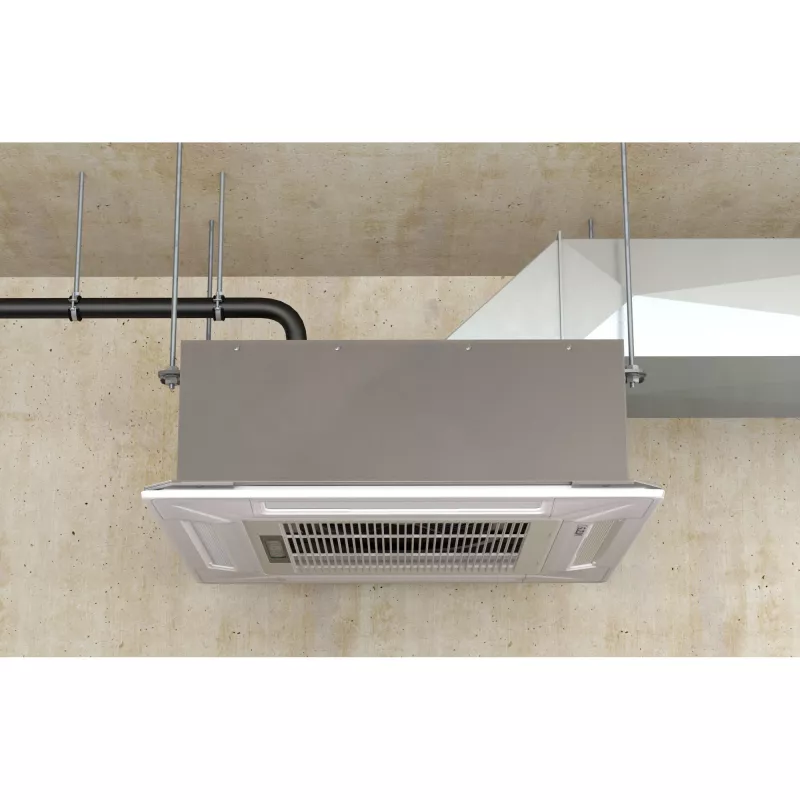

• Application: Fixing of suspended ceilings, pipe clamps, cable trays, consoles
• Load type: Suitable for tensile and shear loads
• Corrosion protection: Electro-galvanized
• Installation method: Hammer-in with setting tool

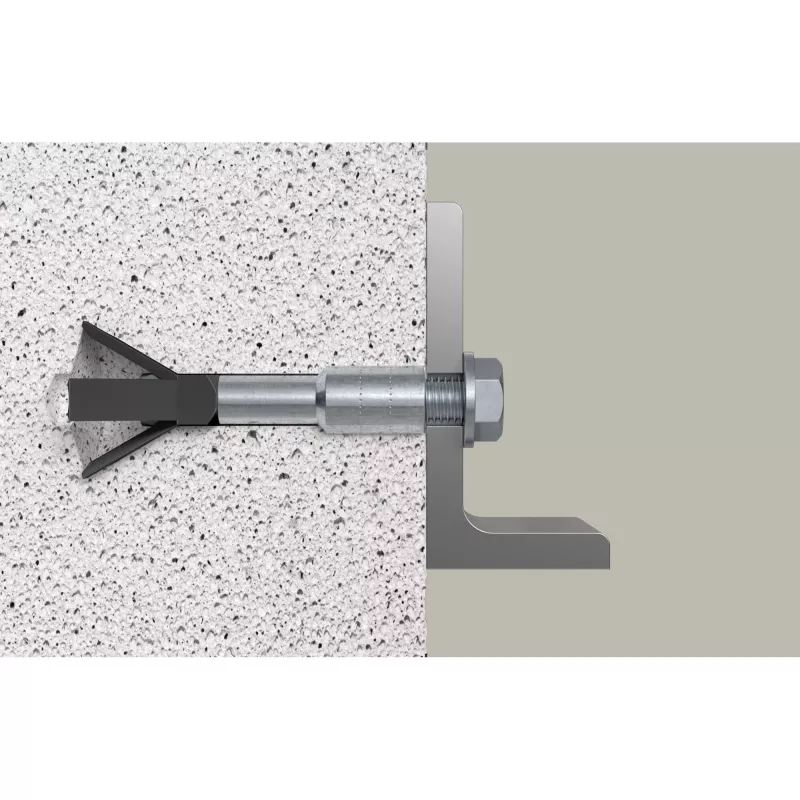

• Expansion principle: Form-fit expansion
• Certification: ETA-approved (ETA-12/0172)
• Product series: FPX-I K

Final note

This set includes one FPX-I K M10 anchor and one setting tool, providing everything needed for immediate installation in aerated concrete.
