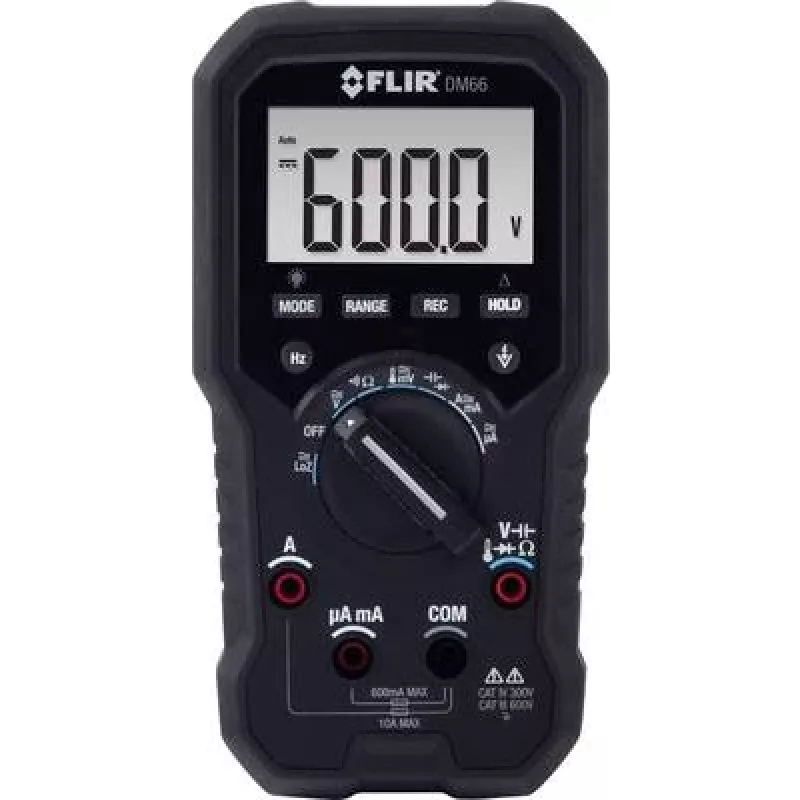

FLIR DM66 digitaalinen yleismittari CAT IV 300V, CAT III 600V, True RMS, 6000 counts

With CAT IV 300V and CAT III 600V safety ratings and True RMS technology, the FLIR DM66 delivers accurate measurements even in noisy electrical environments.

Overview

The FLIR DM66 is a professional digital multimeter designed for demanding electrical work. It features a 6000-count display, auto/manual ranging, and a wide range of measurement functions including voltage, current, resistance, capacitance, frequency, and temperature with a Type K thermocouple.

What stands out

• True RMS for precise AC measurements
• CAT IV 300V / CAT III 600V safety rating
• Integrated worklight and backlit display
• Min/Max/Avg recording and data hold
• Drop protection up to 2 meters

Technical details

• DC voltage: 600.0 mV to 600.0 V
• AC voltage: 600.0 mV to 600.0 V
• DC current: 600.0 µA to 10.00 A
• AC current: 600.0 µA to 10.00 A
• Resistance: 600.0 Ω to 60.00 MΩ
• Capacitance: 60.00 nF to 60.00 mF
• Frequency: 10.00 Hz to 10.00 kHz
• Temperature: -40 to 400 °C (-40 to 752 °F)
• Continuity and diode test with audible buzzer

Our verdict

A rugged and reliable multimeter for field service and industrial maintenance, combining safety, accuracy, and convenience features.
